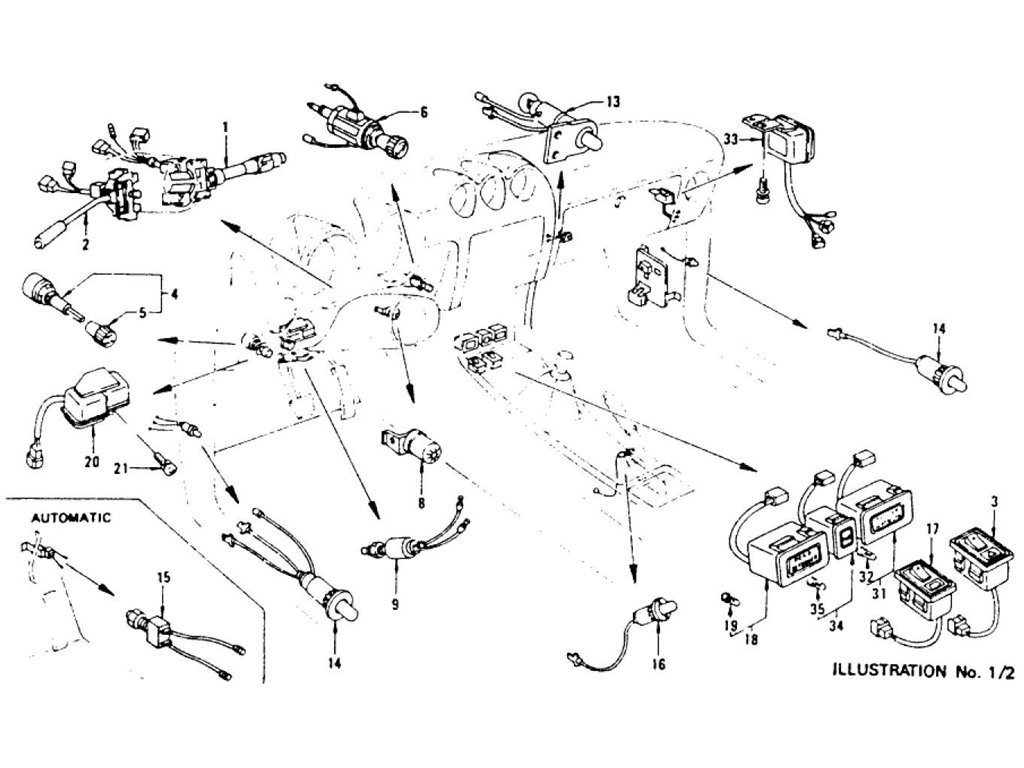

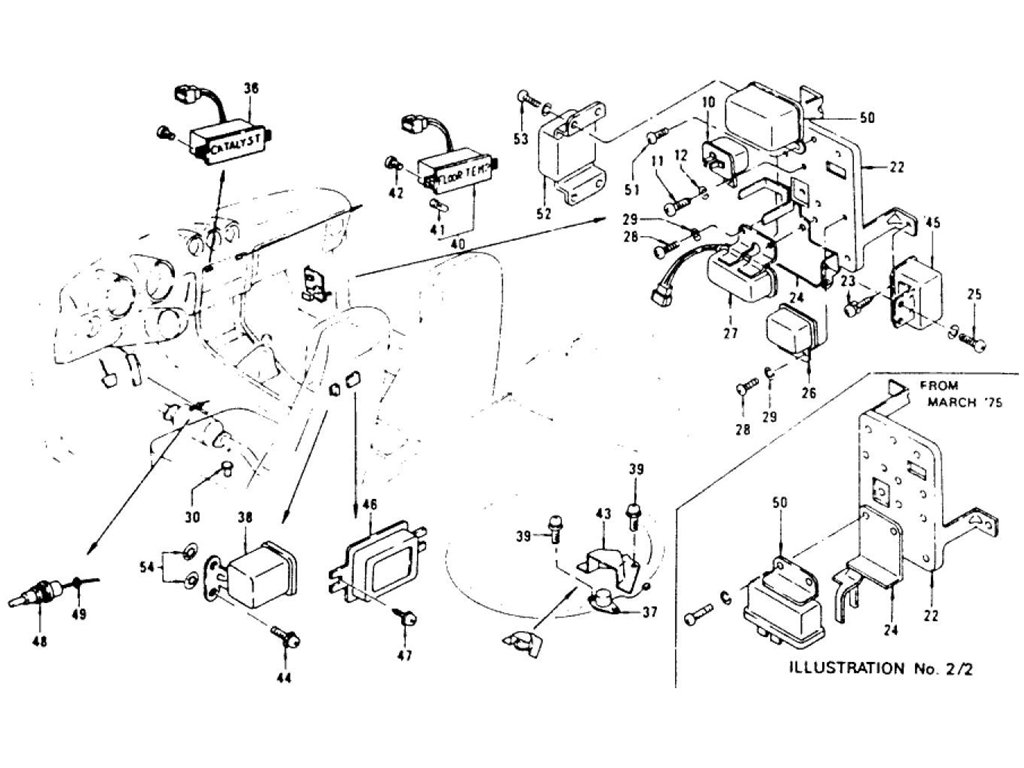

Electric Unit & Switch (2) (From Dec.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP-SWITCH LIGHTING | 25160-N3605 | 7412 | 7607 | 1 | ||||
| 1 | COMP-SWITCH LIGHTING | 25160-N4700 | 7608 | 1 | No | No | 25160-N3605 | ||
| 2 | COMP-SWITCH TURN SIG | 25540-N3605 | 7412 | 7607 | 1 | ||||
| 2 | COMP-SWITCH TURN SIG | 25540-N4701 | 7608 | 1 | No | No | 25540-N3605 | ||
| 3 | COMP-SWITCH HAZARD W | 25910-N3600 | 7412 | 1 | |||||
| 3 | COMP-SWITCH HAZARD W | 25910-N4700 | 7608 | 1 | No | No | 25910-N3600 | ||
| 4 | ASSY-CONTROLLER INST | 25950-N4600 | 7608 | 1 | No | No | 25950-N3400 | ||
| 4 | ASSY-RESISTOR INST L | 25950-N3400 | 7412 | 7607 | 1 | ||||
| 5 | KNOB | 25955-N3400 | 7412 | 1 | |||||
| 6 | COMP-CIGARETTE LIGHT | 25330-N3400 | 7412 | 7507 | 1 | ||||
| 6 | COMP-CIGARETTE LIGHT | 25330-N4400 | 7508 | 7608 | 1 | No | No | 25330-N3400 | |
| 6 | COMP-CIGARETTE LIGHT | 25330-N4401 | 7609 | 1 | Yes | Yes | 25330-N4400 | ||
| 7 | ASSY-ELEMENT | B5330-N4400 | 7508 | 1 | |||||
| 8 | ASSY-LAMP ILLUMINATI | 25170-N3400 | 7412 | 1 | |||||
| 9 | ASSY-SWITCH STOP LAM | 25320-H1000 | 7412 | 1 | |||||
| 10 | ASSY-RELAY HORN | 26320-N4500 | 7412 | 1 | |||||
| 11 | SCREW | 08310-50812 | 7412 | 1 | |||||
| 12 | WASHER-SPRING | 08915-13510 | 7412 | 1 | |||||
| 13 | ASSY-SWITCH GLOVE BO | 25720-P0101 | 7412 | 1 | |||||
| 14 | ASSY-SWITCH DOOR | 25360-89901 | ASSIST SIDE | 7412 | 7507 | 1 | |||
| 14 | ASSY-SWITCH DOOR | 25360-N4400 | ASSIST SIDE | 7508 | 1 | No | No | 25360-89901 | |
| 14 | ASSY-SWITCH DOOR | 25360-89915 | DRIVER SIDE | 7412 | 7507 | 1 | |||
| 14 | ASSY-SWITCH DOOR | 25360-N4200 | DRIVER SIDE | 7508 | 1 | No | No | 25360-89915 | |
| 15 | ASSY-SWITCH KICK DOW | 25390-20300 | AUTOMATIC | 7412 | 1 | ||||
| 16 | ASSY-SWITCH PILOT HA | 36011-89900 | 7412 | 7502 | 1 | ||||
| 16 | ASSY-SWITCH PILOT HA | 25360-B6001 | 7503 | 1 | Yes | Yes | 25360-G0300 | ||
| 16 | ASSY-SWITCH PILOT HA | 25360-G0300 | 7503 | 1 | No | No | 36011-89900 | ||
| 17 | COMP-SWITCH REAR DEF | 25350-N3400 | 7412 | 7607 | 1 | ||||
| 17 | COMP-SWITCH REAR DEF | 25350-N4600 | 7608 | 1 | No | No | 25350-N3400 | ||
| 18 | ASSY-WARNING LAMP RE | 25380-N4510 | 7412 | 7607 | 1 | ||||
| 18 | ASSY-WARNING LAMP RE | 25380-N4610 | 7608 | 1 | No | No | 25380-N4510 | ||
| 19 | BULB 1.4W | 25261-89905 | 1 | ||||||
| 20 | ASSY-WARNING BUZZER | 26350-N3600 | 7412 | 7607 | 1 | ||||
| 20 | ASSY-WARNING BUZZER | 26350-N4700 | 7608 | 1 | No | No | 26350-N3600 | ||
| 21 | SCREW | 08310-51014 | 7412 | 1 | |||||
| 22 | BRACKET-RELAY COMB | 25526-N3600 | 7412 | 1 | |||||
| 22 | BRACKET-RELAY COMB | 25526-N4200 | 7503 | 7607 | 1 | No | No | 25526-N3600 | |
| 22 | BRACKET-RELAY COMB | 25526-N4201 | 7608 | 1 | Yes | Yes | 25526-N4200 | ||
| 23 | SCREW | 08316-61614 | 7412 | 3 | |||||
| 24 | BRACKET-RELAY | 25528-N4201 | 7412 | 7507 | 1 | ||||
| 24 | BRACKET-RELAY | 25528-N4202 | 7508 | 1 | No | No | 25528-N4201 | ||
| 25 | SCREW | 08510-61697 | 7412 | 2 | |||||
| 26 | ASSY-RELAY REAR DEFO | 25230-N3000 | 7412 | 1 | |||||
| 27 | ASSY-RELAY AIRCON TY | 25230-89914 | 7412 | 7507 | 1 | ||||
| 27 | ASSY-RELAY IGNITING | 25230-89958 | 7508 | 1 | |||||
| 28 | SCREW | 08310-50812 | 7412 | 4 | |||||
| 29 | WASHER-SPRING | 08915-13510 | 7412 | 4 | |||||
| 30 | ASSY-SENSOR SEATING | 25460-N3602 | 7412 | 7502 | 1 | ||||
| 31 | ASSY-WARNING LAMP SE | 25380-N4200 | 7412 | 7607 | 1 | ||||
| 31 | ASSY-WARNING LAMP SE | 25380-N4700 | 7608 | 1 | No | No | 25380-N4200 | ||
| 32 | BULB 1.4W | 25261-89905 | 1 | ||||||
| 33 | UNIT-IGNITION INTER | 25231-N3600 | U.S.A | 7412 | 7502 | 1 | |||
| 34 | ASSY-WARNING LAMP FU | 25380-N4501 | 7412 | 7507 | 1 | ||||
| 34 | ASSY-WARNING LAMP FU | 25380-N4500 | 7508 | 7607 | 1 | No | No | 25380-N4501 | |
| 34 | ASSY-WARNING LAMP FU | 25380-N4600 | 7608 | 1 | |||||
| 35 | BULB 3.4W | 26713-89900 | 1 | ||||||
| 36 | ASSY-WARNING LAMP CA | 25380-N4300 | CAL | 7412 | 7504 | 1 | |||
| 37 | ASSY-SENSOR FLOOR | 25090-H7310 | CAL | 7412 | 1 | ||||
| 38 | ASSY-RELAY FLOOR SEN | 25230-N4300 | CAL | 7412 | 1 | ||||
| 39 | SCREW | 08310-61626 | CAL | 7412 | 4 | ||||
| 40 | ASSY-WARNING LAMP FL | 25380-N4302 | CAL | 7412 | 7607 | 1 | |||
| 40 | ASSY-WARNING LAMP FL | 25380-N4800 | CAL | 7608 | 1 | No | No | 25380-N4302 | |
| 41 | BULB 1.4W | 25261-89905 | 1 | ||||||
| 42 | SCREW | 08510-71012 | CAL | 7412 | 2 | ||||
| 43 | COVER-FLOOR SENSOR | 25095-N4300 | CAL | 7412 | 1 | ||||
| 44 | SCREW | 08310-61226 | CAL | 7412 | 2 | ||||
| 45 | ASSY-RELAY CATALYZER | 25232-N4301 | CAL | 7412 | 7504 | 1 | |||
| 46 | MODULE-SWITCHING | 22710-N4301 | CAL | 7412 | 7504 | 1 | |||
| 47 | SCREW-TAPPING M6 | 01461-00041 | CAL | 7412 | 7504 | 2 | |||
| 48 | ASSY-SENSOR-CATALYZE | 22740-N4301 | CAL | 7412 | 7504 | 1 | |||
| 49 | GROMMET | 22745-U6800 | 7412 | 7504 | 1 | ||||
| 50 | UNIT-TIMER | 28911-89900 | U.S.A | 7503 | 7603 | 1 | |||
| 50 | UNIT-TIMER | 28911-89913 | U.S.A | 7604 | 1 | No | No | 28911-89900 | |
| 51 | SCREW | 08310-51026 | U.S.A | 7503 | 2 | ||||
| 52 | ASSY-RELAY BRAKE WAR | 25235-U9500 | 7508 | 7607 | 1 | ||||
| 52 | ASSY-RELAY LAMP CHEC | 25230-N4700 | 7608 | 7707 | 1 | No | No | 25235-U9500 | |
| 52 | ASSY-RELAY LAMP CHEC | 25230-B7911 | U.S.A | 7708 | 1 | No | No | 25230-N4700 | |
| 53 | SCREW | 08310-61626 | 7508 | 2 | |||||
| 54 | SEAT-SETTING | 80596-Y0100 | 7608 | 2 | |||||
| 55 | ASSY-AMP INTERMITTEN | 28820-N3300 | 7412 | 1 |
