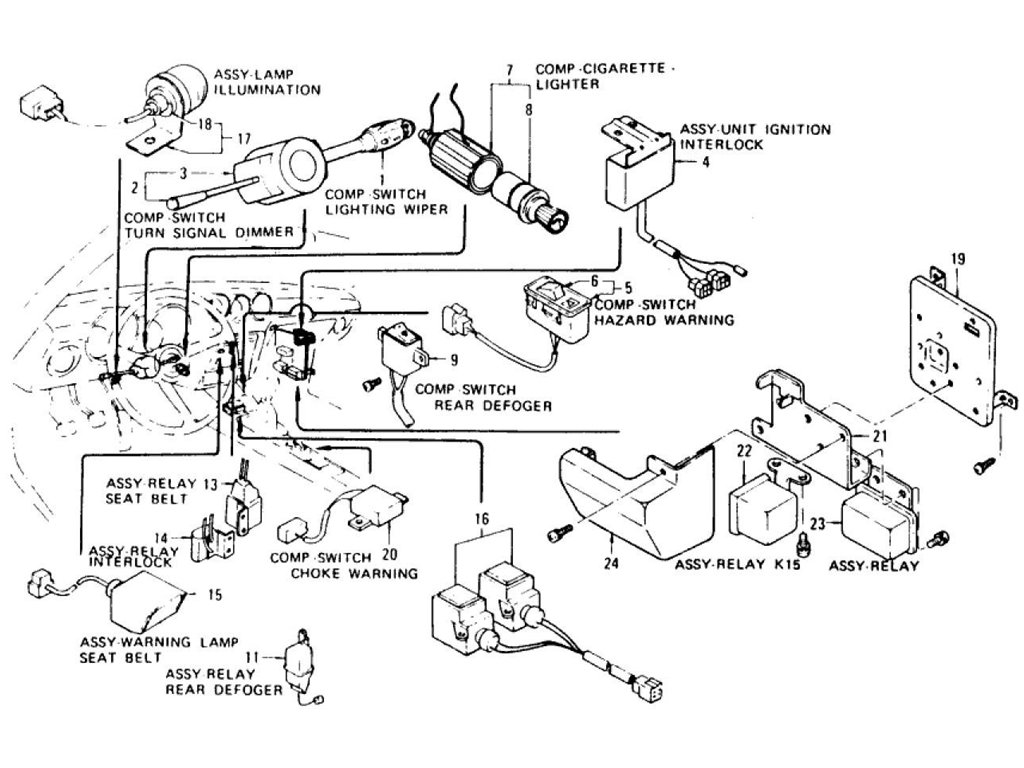

Electric Unit & Switch (2) (From Aug.-'73 To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP-SWITCH LIGHTING | 25160-N3605 | 1 | ||||||
| 2 | COMP-SWITCH TURN SIG | 25540-N3605 | 1 | ||||||
| 3 | ASSY-UNIT TURN SIGNA | 25545-N3600 | 1 | ||||||
| 4 | ASSY-UNIT | 25231-N3600 | 1 | ||||||
| 5 | COMP-SWITCH HAZARD W | 25910-N3600 | 1 | ||||||
| 6 | KNOB-SWITCH HAZARD W | 25915-N3400 | 1 | ||||||
| 7 | COMP-CIGARETTE LIGHT | 25330-N3400 | 1 | ||||||
| 8 | ASSY-KNOB CIGARETTE | 25335-A4600 | 1 | ||||||
| 9 | COMP-SWITCH REAR DEF | 25350-N3400 | 7607 | 1 | |||||
| 10 | ASSY-LAMP WARNING RE | 25380-N3400 | 1 | ||||||
| 11 | ASSY-RELAY | 25230-N3603 | 1 | ||||||
| 12 | ASSY-RELAY | 25230-89914 | 1 | ||||||
| 13 | ASSY-RELAY | 25230-N3600 | 7408 | 1 | |||||
| 13 | ASSY-RELAY | 25230-N4200 | 7409 | 1 | No | No | 25230-N3600 | ||
| 14 | ASSY-RELAY INTER LOC | 25230-N3602 | 1 | ||||||
| 14 | ASSY-RELAY INTER LOC | 25230-N4201 | 7409 | 7502 | 1 | No | No | 25230-N3602 | |
| 15 | ASSY-WARNING LAMP SE | 25380-N3600 | 1 | ||||||
| 16 | ASSY-LAMP WARNING CH | 25380-N3602 | 1 | ||||||
| 17 | ASSY-LAMP ILLUMINATI | 25170-N3400 | 1 | ||||||
| 18 | SOCKET-W/BULB & HARN | 25172-N3000 | 1 | ||||||
| 19 | BRACKET-RELAY COMBIN | 25526-N3400 | 1 | ||||||
| 19 | BRACKET-RELAY COMBIN | 25526-N3600 | 7407 | 1 | Yes | Yes | 25526-N3400 | ||
| 20 | COMP-SWITCH CHOKE WA | 25340-N3600 | 1 | ||||||
| 21 | BRACKET-RELAY | 25528-N3600 | 7406 | 1 | |||||
| 21 | BRACKET-RELAY | 25528-N3601 | 7407 | 7408 | 1 | Yes | Yes | 25528-N3600 | |
| 21 | BRACKET-RELAY | 25528-N4201 | 7409 | 1 | No | No | 25528-N3601 | ||
| 22 | ASSY-RELAY K1K (PUMP | 25230-89915 | 1 | ||||||
| 23 | ASSY-RELAY (PUMP) | 25235-P0100 | 1 | ||||||
| 23 | ASSY-RELAY (PUMP) | 25235-P0101 | 1 | Yes | Yes | 25235-P0100 | |||
| 24 | COVER-RELAY BRACKET | 25524-N3600 | 7407 | 1 |
