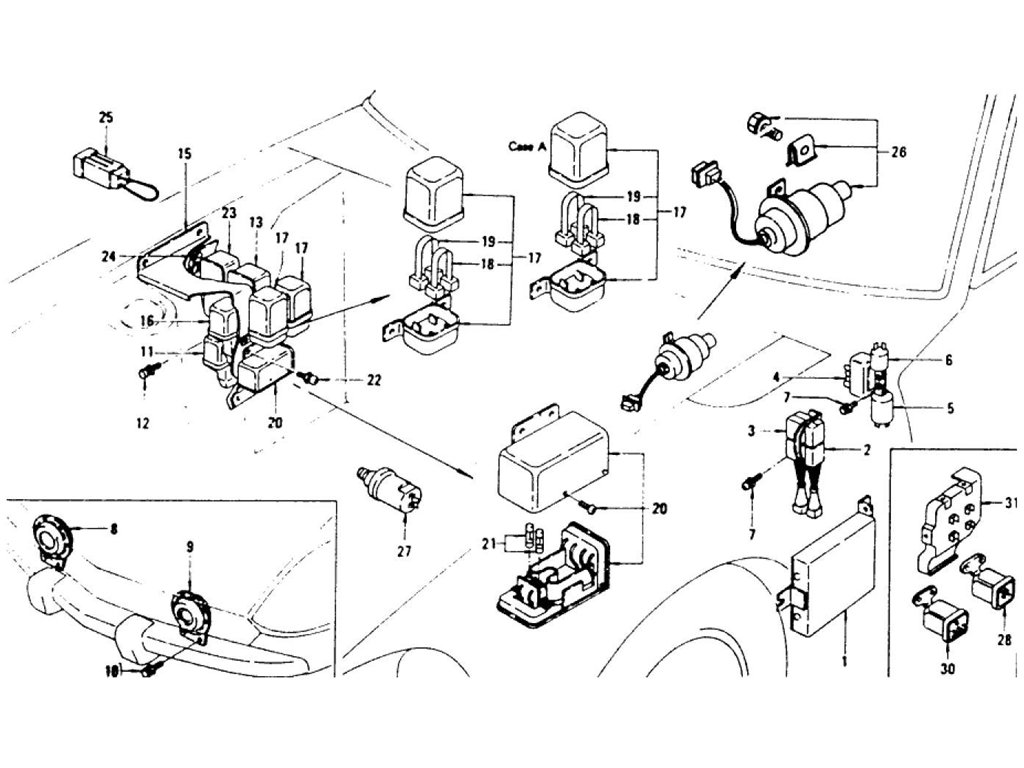

Electric Unit & Switch (1) (From Dec.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | UNIT-CONTROL EGI (JE | 22611-N4210 | 7505 | 7507 | 1 | Yes | Yes | 22611-N4201 | |
| 1 | UNIT-CONTROL EGI (JE | 22611-N4212 | 7508 | 7607 | 1 | Yes | Yes | 22611-N4210 | |
| 1 | UNIT-CONTROL EGI (JE | 22611-N4800 | CAL | 7608 | 1 | No | No | 22611-N4212 | |
| 1 | UNIT-CONTROL EGI (JE | 22611-N4212 | FED | 7608 | 1 | ||||
| 2 | ASSY-RESISTOR DROPPI | 22695-N4202 | 7412 | 1 | |||||
| 3 | ASSY-RESISTOR DROPPI | 22698-N4202 | 7412 | 1 | |||||
| 4 | ASSY-RELAY EGI | 22696-N4202 | 1 | Yes | Yes | 22696-N4201 | |||
| 4 | ASSY-RELAY EGI | 22696-N4201 | 7412 | 7708 | 1 | ||||
| 5 | ASSY-UNIT TURN SIGNA | 25520-89976 | 7412 | 1 | |||||
| 6 | ASSY-UNIT HAZARD | 25520-89990 | 7412 | 1 | |||||
| 6 | ASSY-UNIT HAZARD | 25520-89997 | 7412 | 1 | Yes | Yes | 25520-89990 | ||
| 7 | SCREW-HEX | 08363-61626 | 7412 | 2 | |||||
| 8 | ASSY-HORN ELECTRIC H | 26310-N4501 | 7412 | 7607 | 1 | ||||
| 8 | ASSY-HORN ELECTRIC H | 26310-N4700 | 7608 | 1 | No | No | 26310-N4501 | ||
| 9 | ASSY-HORN ELECTRIC L | 26330-N4501 | 7412 | 7607 | 1 | ||||
| 9 | ASSY-HORN ELECTRIC L | 26330-N4700 | 7608 | 1 | No | No | 26330-N4501 | ||
| 10 | BOLT-HEX | 08110-82062 | 7412 | 4 | |||||
| 11 | ASSY-RELAY INHIBITOR | 25230-N4200 | AUTOMATIC | 7412 | 1 | ||||
| 11 | ASSY-RELAY INHIBITOR | 25230-H7200 | AUTOMATIC | 7708 | 1 | No | No | 25230-N4200 | |
| 12 | SCREW | 08313-51226 | 7412 | 2 | |||||
| 13 | ASSY-SWITCH INTERLOC | 25230-N4201 | U.S.A. | 7412 | 7502 | 1 | |||
| 14 | SCREW | 08310-51226 | 7412 | 2 | |||||
| 15 | ASSY-BRACKET RELAY | 25233-N4300 | 7508 | 7607 | 1 | Yes | Yes | 25233-N4200 | |
| 15 | ASSY-BRACKET RELAY | 25233-N4202 | 7608 | 1 | No | No | 25233-N4300 | ||
| 15 | ASSY-BRACKET RELAY | 25233-N7600 | 7708 | 1 | No | No | 25233-N4202 | ||
| 15 | ASSY-BRACKET RELAY | 25233-N4200 | UIMJ | 7507 | 1 | ||||
| 16 | ASSY-RELAY EGR & 2P | 25230-N4200 | 7412 | 1 | |||||
| 17 | BOX-FUSIBLE LINK | 24020-N3700 | 7412 | 7507 | 1 | ||||
| 17 | CASE-FUSIBLE LINK | 24020-N4200 | 7508 | 1 | |||||
| 17 | CASE-FUSIBLE LINK | 24020-N4201 | 7508 | 1 | |||||
| 18 | FUSIBLE LINK-0.5 | 24161-28500 | 7412 | 1 | |||||
| 19 | FUSIBLE LINK-0.3 | 24161-N4200 | 7508 | 1 | |||||
| 19 | FUSIBLE LINK-1.25 | 24161-A0100 | 7412 | 1 | |||||
| 20 | ASSY-SHUNT | 24845-N3401 | 7412 | 7507 | 1 | ||||
| 21 | FUSE-2A | 01981-00023 | 7412 | 7507 | 2 | ||||
| 22 | BOLT-HEX | 08363-61626 | 7412 | 2 | |||||
| 23 | ASSY-RELAY AIR CON | 25230-N4205 | 7412 | 1 | |||||
| 24 | CONDENSER | 27984-B0700 | 7412 | 1 | |||||
| 25 | ADAPTOR-EMERGENCY SW | 24072-U6700 | 7412 | 7502 | 1 | ||||
| 26 | ASSY-SWITCH | 22612-N4800 | CAL | 7608 | 1 | ||||
| 27 | SENDING UNIT PRESSUR | 25250-N7600 | 7708 | 1 | No | No | 25250-S6000 | ||
| 27 | SENDING UNIT PRESSUR | 25250-S6000 | U.S.A. | 7412 | 7707 | 1 | |||
| 28 | EGI FUEL PUMP RELAY | 25230-H7200 | 7708 | 1 | |||||
| 29 | EGI P/CON RELAY | 25231-89966 | 1 | Yes | Yes | 25230-89966 | |||
| 29 | EGI P/CON RELAY | 25230-89966 | 7708 | 1 | |||||
| 30 | EGI IGNITION RELAY | 25230-89970 | 7708 | 1 | |||||
| 31 | COVER BRACKER RELAY | 25234-N7600 | 7708 | 1 |
