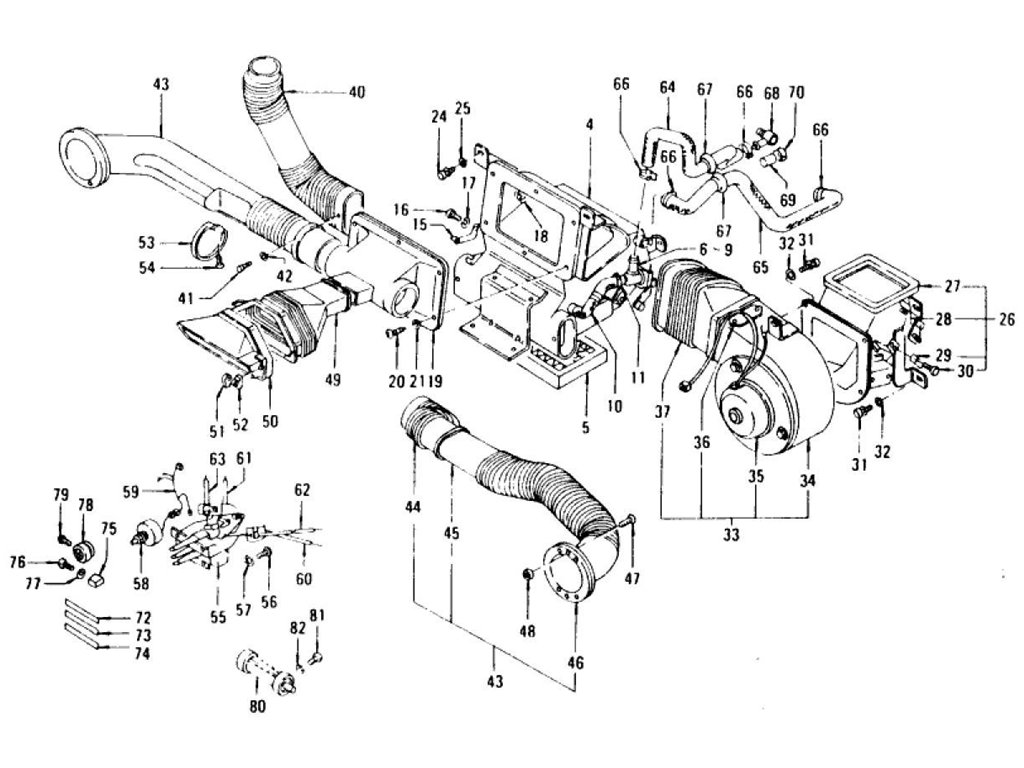

To Jul.-'73 Car Heater (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | KIT-HEATER | 27100-E8825 | | | | 1 | | | |
|
2 | COMP-UNIT | 27105-E8801 | | | | 1 | | | |
|
3 | ASSY-UNIT | 27110-E8800 | | | | 1 | | | |
|
4 | ASSY-CASE | 27120-E8800 | | | | 1 | | | |
|
5 | ASSY-CORE | 27115-E4400 | | | | 1 | | | |
|
6 | ASSY-COCK HEATER | 27116-E4400 | | | | 1 | | | |
|
7 | UNIT-COCK | 27117-E4400 | | | | 1 | | | |
|
8 | ADJUSTER | 27151-E4400 | | | | 1 | | | |
|
9 | SCREW | 08310-40812 | | | | 1 | | | |
|
10 | HOSE-HEATER | 27118-E4400 | | | | 1 | | | |
|
11 | CLAMP-HOSE | 08723-12200 | | | | 2 | | | |
|
12 | CLAMP-CABLE | 27152-E4400 | | | | 2 | | | |
|
13 | SCREW | 08310-41012 | | | | 2 | | | |
|
14 | SCREW | 08310-40812 | | | | 1 | | | |
|
15 | LEVER-VENTILATOR VAL | 27137-E8800 | | | | 1 | | | |
|
16 | SCREW | 08310-41012 | | | | 1 | | | |
|
17 | WASHER-SPRING | 08915-13410 | | | | 1 | | | |
|
18 | SPRING-VALVE | 27053-E4400 | | | | 1 | | | |
|
19 | ASSY-VENTILATION | 27170-E4400 | | | | 1 | | | |
|
20 | SCREW | 08310-51012 | | | | 6 | | | |
|
21 | WASHER-PLAIN | 08915-43510 | | | | 6 | | | |
|
22 | BRACKET-CABLE CLAMP | 27172-E4400 | | | | 1 | | | |
|
23 | SCREW | 08310-42012 | | | | 1 | | | |
|
24 | SCREW | 08360-61414 | | | 7206 | 6 | | | |
|
24 | SCREW & WASHER | 08363-61226 | | 7207 | | 6 | Yes | Yes | 08360-61414 |
|
25 | WASHER-PLAIN | 08915-43610 | | | | 6 | | | |
|
26 | COMP-DUCT | 27160-E8800 | | | | 1 | | | |
|
27 | ASSY-DUCT | 27015-E8800 | | | | 1 | | | |
|
28 | SPRING-VALVE | 27054-E8700 | | | | 1 | | | |
|
29 | CLAMP-CABLE | 27152-E4400 | | | 7206 | 1 | | | |
|
29 | CLAMP-CABLE | 27156-S0100 | | 7207 | | 1 | No | No | 27152-E4400 |
|
30 | SCREW | 08310-42012 | | | 7206 | 1 | | | |
|
31 | SCREW & WASHER | 08360-61214 | | | | 3 | | | |
|
32 | WASHER-PLAIN | 08915-43610 | | | | 3 | | | |
|
33 | ASSY-BLOWER | 27060-E4405 | | | | 1 | | | |
|
34 | ASSY-CASE | 27065-E4400 | | | | 1 | | | |
|
35 | ASSY-MOTOR & FAN | 27070-E4405 | | | | 1 | | | |
|
36 | ASSY-RESISTANCE | 27077-E4405 | | | | 1 | | | |
|
37 | DUCT-ADAPTER | 27066-E4401 | | | | 1 | | | |
|
38 | SCREW | 08360-61414 | | | 7206 | 4 | | | |
|
38 | SCREW & WASHER | 08363-61226 | | 7207 | | 4 | | | |
|
39 | WASHER-PLAIN | 08915-43610 | | | 7206 | 4 | | | |
|
40 | DUCT-DEFROSTER | 27161-E4401 | | | | 2 | | | |
|
41 | SCREW | 08510-71012 | | | | 2 | | | |
|
42 | WASHER-PLAIN | 08915-43710 | | | | 2 | | | |
|
43 | ASSY-DUCT | 27165-E4402 | | | | 2 | | | |
|
44 | DUCT-VENTILATION A | 27167-E4401 | | | | 1 | | | |
|
45 | DUCT-VENTLATION B | 27168-E4400 | | | | 1 | | | |
|
46 | DUCT-VENTLATION C | 27169-E4400 | | | | 1 | | | |
|
47 | SCREW | 08510-41212 | | | | 6 | | | |
|
48 | NUT-SPRING | 08963-10410 | | | | 6 | | | |
|
49 | DUCT-CENTER | 27171-E4400 | | | | 1 | | | |
|
50 | DUCT-CENTER FRONT | 27671-E4400 | | | 7206 | 1 | | | |
|
50 | DUCT-CENTER FRONT | 27671-N3300 | | 7207 | | 1 | No | No | 27671-E4400 |
|
51 | SPRING-CENTER GRILLE | 27672-E4400 | | | | 2 | | | |
|
52 | BEARING-CENTER | 27673-E4400 | | | | 2 | | | |
|
53 | CLAMP-VENTILATOR DUC | 27661-E4401 | | | | 3 | | | |
|
54 | SCREW | 08310-40812 | | | | 2 | | | |
|
55 | ASSY-CONTROL | 27130-E8800 | | | | 1 | | | |
|
55 | ASSY-CONTROL | 27130-N3300 | | 7207 | | 1 | No | No | 27130-E8800 |
|
56 | SCREW | 08310-40612 | | | | 4 | | | |
|
57 | WASHER-SPRING | 08915-13410 | | | | 4 | | | |
|
58 | ASSY-SWITCH | 27140-E4400 | | | | 1 | | | |
|
58 | ASSY-SWITCH | 27140-N3301 | | 7207 | | 1 | No | No | 27140-E4400 |
|
59 | ASSY-WIRE A | 27155-E4400 | | | | 1 | | | |
|
60 | ASSY-CABLE (DEF-ROOM | 27141-E8800 | | | | 1 | | | |
|
61 | ASSY-CABLE (HEAT-COO | 27142-E8800 | | | | 1 | | | |
|
62 | ASSY-CABLE (IN-OUT) | 27143-E8800 | | | 7206 | 1 | | | |
|
62 | ASSY-CABLE (IN-OUT) | 27143-E8802 | | 7207 | | 1 | Yes | Yes | 27143-E8800 |
|
63 | ASSY-CABLE (VENT-HEA | 27144-E8800 | | | | 1 | | | |
|
64 | HOSE-WATER INLET | 27181-E4401 | | | 7206 | 1 | | | |
|
64 | HOSE-WATER INLET | 27181-N3000 | | 7207 | | 1 | Yes | Yes | 27181-E4401 |
|
65 | HOSE-WATER OUTLET | 27185-E4401 | | | | 1 | | | |
|
66 | CLAMP-HOSE | 08723-12200 | | | | 4 | | | |
|
67 | GROMMET-RUBBER | 27243-28500 | | | | 2 | | | |
|
68 | CONNECTOR-WATER | 27195-E4400 | | | | 1 | | | |
|
69 | CAP-CONNECTOR | 14058-25500 | | | | 1 | | | |
|
70 | CLAMP-HOSE | 08723-12400 | | | | 1 | | | |
|
71 | CLAMP-HOSE | 27191-E8206 | AUTOMATIC | | | 1 | | | |
|
72 | LABEL-AIR CONTROL | 68841-E4600 | | | | 1 | | | |
|
73 | LABEL-TEMP CONTROL | 68843-E4600 | | | | 1 | | | |
|
74 | LABEL-DEF CONTROL | 68845-E4600 | | | | 1 | | | |
|
75 | KNOB-HEATER CONTROL | 68847-E4600 | | 7206 | | 3 | | | |
|
75 | KNOB-HEATER CONTROL | 68847-N3000 | | 7207 | | 3 | Yes | Yes | 68847-E4600 |
|
76 | SCREW | 08330-31012 | | | | 3 | | | |
|
77 | WASHER-TOOTH | 08916-43310 | | | | 3 | | | |
|
78 | KNOB-BLOWER CONTROL | 68848-E4600 | | | | 1 | | | |
|
78 | KNOB-BLOWER CONTROL | 68848-N3301 | | 7207 | | 1 | No | No | 68848-E4600 |
|
79 | SCREW | 25169-89903 | | | | 1 | | | |
|
80 | GRILLE-AIR OUTLET CE | 68834-E8200 | | | | 1 | | | |
|
81 | SCREW | 01421-00083 | | | | 4 | | | |
|
82 | WASHER-SPRING | 08915-13410 | | | | 4 | | | |
