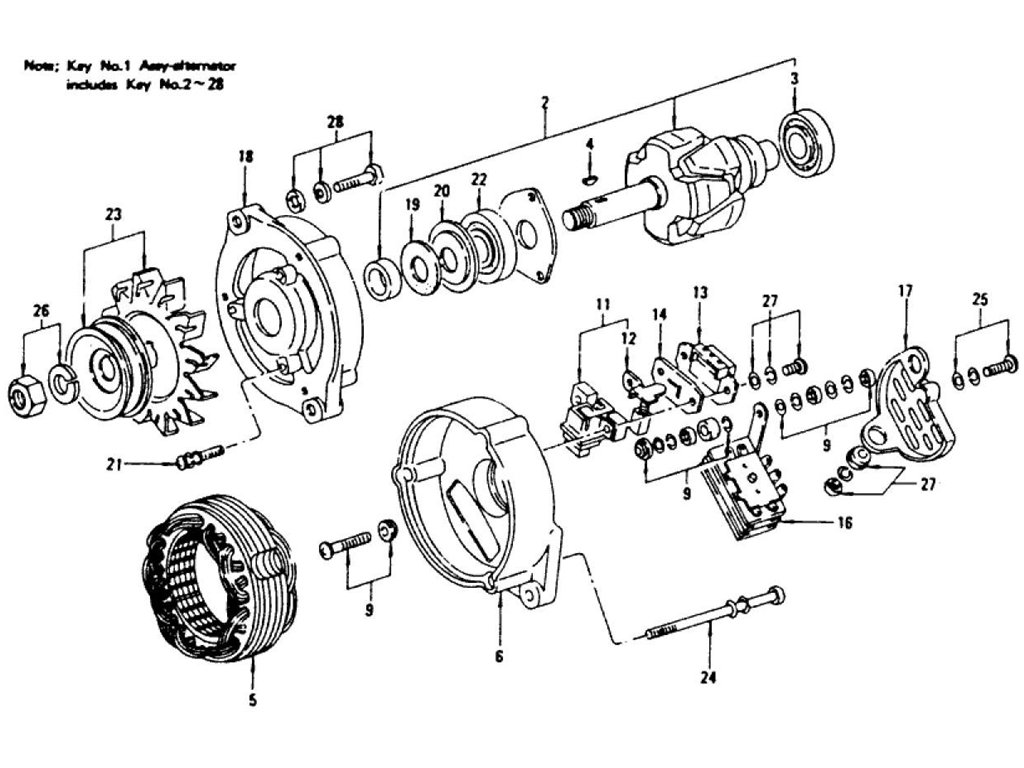

12V-60A (For Cold Area) Alternator (12V-60A) Hitachi (For Cold Area)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-ALTERNATOR 12V- | 23100-N3300 | L24 | L26 FOR CANA DA | 7208 | | 1 | Yes | Yes |
|
1 | ASSY-ALTERNATOR 12V- | 23100-N3300 | L28E | 7412 | 7502 | 1 | | | |
|
1 | ASSY-ALTERNATOR 12V- | 23100-N3301 | L28E | 7503 | 7510 | 1 | Yes | Yes | 23100-N3300 |
|
1 | ASSY-ALTERNATOR 12V- | 23100-N3302 | L28E | 7511 | 7702 | 1 | Yes | Yes | 23100-N3301 |
|
1 | ASSY-ALTERNATOR 12V- | 23100-N3303 | L28E | 7703 | | 1 | | | 23100-N3302 |
|
2 | ASSY-ROTOR | 23108-N3300 | L24 | L26 CANADA & L28E | 7208 | 7502 | 1 | No | No |
|
2 | ASSY-ROTOR | 23108-U6100 | L28E | 7503 | | 1 | No | No | 23108-N3300 |
|
3 | BEARING-BALL | 23120-14801 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
4 | KEY | 23195-30000 | L24 | L26 CANADA & L28E | 7207 | 7502 | 1 | | |
|
5 | ASSY-STATOR | 23102-N3300 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
6 | ASSY-COVER | 23127-N3300 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
9 | ASSY-BOLT TERMINAL | 23158-P0100 | L24 | L26 CANADA & L28E | | | 1 | Yes | Yes |
|
11 | ASSY-BRUSH | 23133-N3300 | L24 | L26 CANADA & L28E | 7208 | | 1 | Yes | Yes |
|
12 | TERMINAL-N | 23193-P0100 | L24 | L26 CANADA & L28E | 7207 | | 1 | | |
|
12 | TERMINAL-N | 23193-P0100 | OP L24 | L26 FOR CO LD | 7207 | | 1 | | |
|
13 | COVER-BRUSH | 23236-P0100 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
14 | PACKING-BRUSH | 23237-U0700 | L24 FOR CANADA | 7207 | 7207 | 1 | | | |
|
15 | COVER | 23236-U0701 | .24 FOR CANADA | 7207 | 7207 | 1 | | | |
|
16 | ASSY-DIODE | 23232-E6601 | L24 | L26 CANADA & L28E | 7208 | 7510 | 1 | | |
|
16 | ASSY-DIODE | 23232-N3300 | L28E | | | 1 | Yes | Yes | 23232-U6000 |
|
16 | ASSY-DIODE | 23232-U6000 | L28E | 7511 | | 1 | Yes | Yes | 23232-E6601 |
|
17 | COVER-DIODE | 23236-N3300 | L24 | L26 CANADA & L28E | 7208 | | 1 | | |
|
18 | ASSY-COVER FRONT | 23118-N3300 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
19 | PACKING | 23122-E3200 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
20 | RETAINER-PACKING | 23121-E3200 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
21 | SCREW M5X0.8X21 | 23180-E6601 | L24 | L26 CANADA & L28E | 7208 | | 3 | | |
|
22 | BEARING-BALL | 23120-P4500 | L24 | L26 CANADA & L28E | | | 1 | Yes | Yes |
|
22 | BEARING-BALL | 23120-65004 | L24 | L26 CANADA & L28E | 7207 | | 1 | | |
|
23 | ASSY-PULLEY | 23150-P0101 | L24 | L26 CANADA & L28E | 7207 | 7502 | 1 | | |
|
23 | ASSY-PULLEY | 23150-P4501 | L28E | | | 1 | Yes | Yes | 23150-P4500 |
|
23 | ASSY-PULLEY | 23150-P4500 | L28E | 7503 | | 1 | No | No | 23150-P0101 |
|
24 | BOLT-THROUGH | 23131-78500 | L24 | L26 CANADA & L28E | 7208 | | 1 | No | No |
|
25 | BOLT-THROUGH | 23131-P4500 | L24 | L26 CANADA & L28E | | | 2 | Yes | Yes |
|
25 | BOLT-THROUGH | 23131-E3200 | L24 | L26 CANADA & L28E | 7208 | | 2 | No | No |
|
26 | ASSY-NUT | 23153-16600 | L24 | L26 CANADA & L28E | 7207 | 7502 | 1 | | |
|
26 | ASSY-NUT | 23153-P4500 | L28E | | | 1 | Yes | Yes | 23153-U5800 |
|
26 | ASSY-NUT | 23153-U5800 | L28E | 7503 | | 1 | No | No | 23153-16600 |
|
27 | KIT SCREW | 23200-E3400 | L24 | L26 CANADA & L28E | 7207 | | 1 | | |
|
28 | BOLT-SETTING | 23164-H0100 | L24 | L26 CANADA & L28E | 7207 | 7702 | 1 | | |
