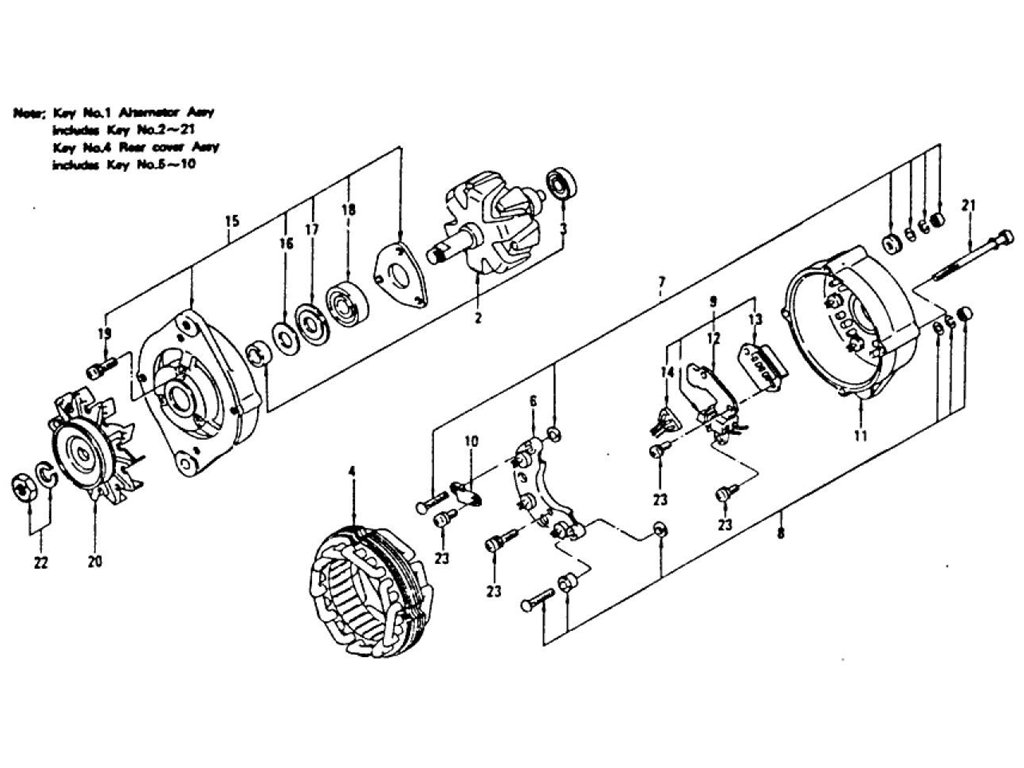

12V-60A Alternator (12V-60A) Hitachi
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ALTERNATOR ASSY(HITA | 23100-P3006 | | 7708 | | 1 | | | |
|
2 | ROTOR ASSY | 23108-P3005 | | 7708 | | 1 | | | |
|
3 | BALL BEARING | 23120-14801 | | 7708 | | 1 | | | |
|
4 | STATER ASSY | 23102-P3005 | | 7708 | | 1 | | | |
|
5 | REAR COVER ASSY | 23127-P3005 | | 7708 | | 1 | | | |
|
6 | SR HOLDER ASSY | 23230-U0705 | | 7708 | | 1 | | | |
|
7 | TERMINAL BOLT ASSY | 23156-U0700 | | 7708 | | 1 | | | |
|
8 | TERMINAL BOLT ASSY | 23158-P3000 | | 7708 | | 1 | | | |
|
9 | BRUSH REGULATOR ASSY | 23133-P3006 | | | | 1 | Yes | Yes | 23133-P3005 |
|
9 | BRUSH REGULATOR ASSY | 23133-P3005 | | 7708 | | 1 | | | |
|
10 | PLATE TERMINAL | 23165-P3005 | | 7708 | | 1 | | | |
|
11 | REAR COVER | 23183-P3005 | | 7708 | | 1 | | | |
|
12 | BRUSH ASSY | 23135-P3005 | | 7708 | | 1 | | | |
|
13 | IC REGULATOR ASSY | 23215-B9800 | | | | 1 | Yes | Yes | 23215-P2500 |
|
13 | IC REGULATOR ASSY | 23215-P2500 | | 7708 | | 1 | | | |
|
14 | DIODE (SUB) | 23245-P3005 | | 7708 | | 3 | | | |
|
15 | FRONT COVER ASSY | 23118-U0705 | | 7708 | | 1 | | | |
|
16 | PACKING | 23122-E3200 | | 7708 | | 1 | | | |
|
17 | PACKING RETAINER | 23121-E3200 | | 7708 | | 1 | | | |
|
18 | BALL BEARING | 23120-P4500 | | | | 1 | Yes | Yes | 23120-65004 |
|
18 | BALL BEARING | 23120-65004 | | 7708 | | 1 | | | |
|
19 | SCREW M5X0.8X21 | 23180-E6601 | | 7708 | | 3 | | | |
|
20 | PULLEY ASSY | 23150-P4501 | | | | 1 | Yes | Yes | 23150-P4500 |
|
20 | PULLEY ASSY | 23150-P4500 | | 7708 | | 1 | | | |
|
21 | THROUGH BOLT | 23131-U0705 | | 7708 | | 4 | | | |
|
22 | PULLEY NUT ASSY | 23153-P4500 | | | | 1 | Yes | Yes | 23153-U5800 |
|
22 | PULLEY NUT ASSY | 23153-U5800 | | 7708 | | 1 | | | |
|
23 | SCREW KIT | 23200-E3400 | | 7708 | | 1 | | | |
