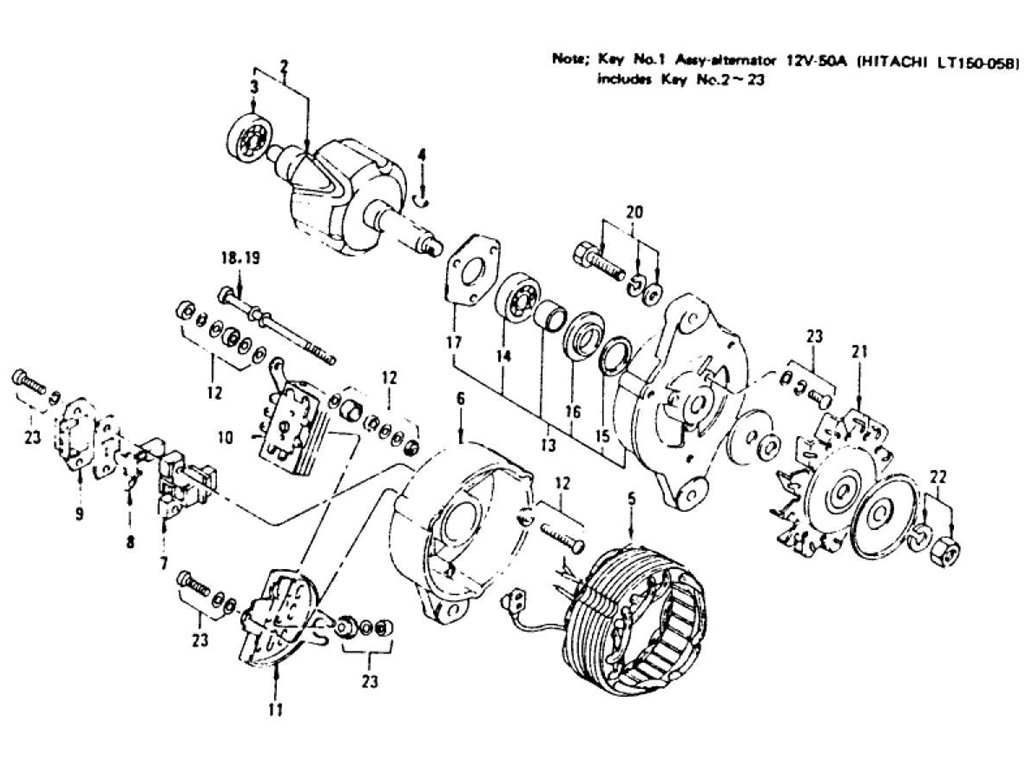

12V-50A Alternator (12V-50A) Hitachi (From Sep.-'71)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-ALTERNATOR 12V- | 23100-P0102 | L24 | 7109 | 7206 | 1 | | | |
|
1 | ASSY-ALTERNATOR 12V- | 23100-P0103 | L24 | L26 | 7207 | 7502 | 1 | | |
|
1 | ASSY-ALTERNATOR 12V- | 23100-P4500 | L24 | L26 | 7503 | 7509 | 1 | Yes | Yes |
|
1 | ASSY-ALTERNATOR 12V- | 23100-P4501 | L26 | 7510 | | 1 | Yes | Yes | 23100-P4500 |
|
2 | ASSY-ROTOR | 23108-P0101 | L24 | L26 | 7109 | 7502 | 1 | | |
|
2 | ASSY-ROTOR | 23108-V5800 | L24 | L26 | 7503 | 7509 | 1 | No | No |
|
2 | ASSY-ROTOR | 23108-H6200 | L24 | L26 | 7510 | | 1 | No | No |
|
3 | BEARING-BALL | 23120-14801 | L24 | L26 | 7109 | | 1 | | |
|
4 | KEY | 23195-30000 | L24 | L26 | 7109 | | 1 | | |
|
5 | ASSY-STATOR | 23102-P0102 | L24 | L26 | 7109 | | 1 | | |
|
6 | ASSY-COVER | 23127-P0102 | L24 | L26 | 7109 | | 1 | | |
|
7 | ASSY-BRUSH | 23133-P0100 | L24 | L26 | 7109 | | 1 | | |
|
8 | TERMINAL-N | 23193-P0100 | L24 | L26 | 7109 | | 1 | | |
|
9 | COVER-BRUSH | 23236-P0100 | L24 | L26 | 7109 | | 1 | | |
|
10 | ASSY-DIODE | 23232-B8000 | L24 | L26 | 7109 | | 1 | Yes | Yes |
|
10 | ASSY-DIODE | 23232-E6601 | L24 | L26 | 7109 | | 1 | | |
|
11 | COVER-DIODE | 23236-H0300 | L24 | L26 | 7109 | | 1 | | |
|
11 | COVER-DIODE | 23236-H0301 | L24 | L26 | 7109 | | 1 | Yes | Yes |
|
12 | ASSY-BOLT | 23158-E6601 | L24 | L26 | 7109 | | 1 | | |
|
12 | ASSY-BOLT | 23158-P0100 | L24 | L26 | 7109 | | 1 | Yes | Yes |
|
13 | ASSY-COVER | 23118-P0101 | L24 | L26 | 7109 | | 1 | | |
|
14 | BEARING-BALL | 23120-P4500 | L24 | L26 | | | 1 | Yes | Yes |
|
14 | BEARING-BALL | 23120-65004 | L24 | L26 | 7109 | | 1 | | |
|
15 | PACKING | 23122-E3200 | L24 | L26 | 7109 | | 1 | | |
|
16 | RETAINER-PACKING | 23121-E3200 | L24 | L26 | 7109 | | 1 | | |
|
17 | RETAINER--BEARING | 23123-65005 | L24 | L26 | 7109 | | 1 | | |
|
18 | BOLT-THROUGH | 23131-78500 | L24 | L26 | 7109 | | 1 | | |
|
19 | BOLT-THROUGH | 28131-P4500 | L24 | L26 | | | 1 | Yes | Yes |
|
19 | BOLT-THROUGH | 23131-E3200 | L24 | L26 | 7109 | | 1 | | |
|
20 | BOLT-SETTING | 23164-H0100 | L24 | L26 | 7109 | | 1 | | |
|
21 | ASSY-PULLEY | 23150-P0100 | L24 | 7109 | 7206 | 1 | | | |
|
21 | ASSY-PULLEY | 23150-P4501 | L24 | L26 | 7109 | | 1 | Yes | Yes |
|
21 | ASSY-PULLEY | 23150-P0101 | L24 | L26 | 7207 | 7502 | 1 | No | No |
|
21 | ASSY-PULLEY | 23150-P4500 | L24 | L26 | 7503 | | 1 | No | No |
|
22 | NUT-PULLEY | 23153-65003 | L24 | | 7206 | 1 | | | |
|
22 | NUT-PULLEY | 23153-P4500 | L24 | L26 | | | 1 | Yes | Yes |
|
22 | NUT-PULLEY | 23153-16600 | L24 | L26 | 7207 | 7502 | 1 | No | No |
|
22 | NUT-PULLEY | 23153-U5800 | L24 | L26 | 7503 | | 1 | No | No |
|
23 | KIT-SCREW | 23200-E3400 | L24 | L26 | 7109 | | 1 | | |
