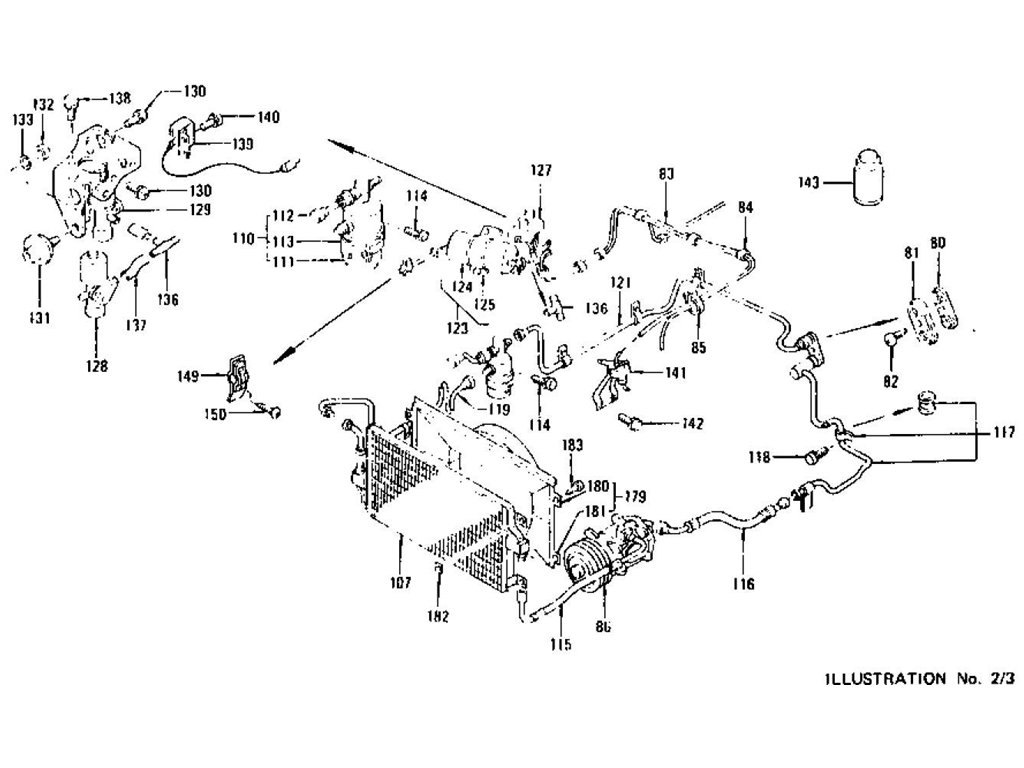

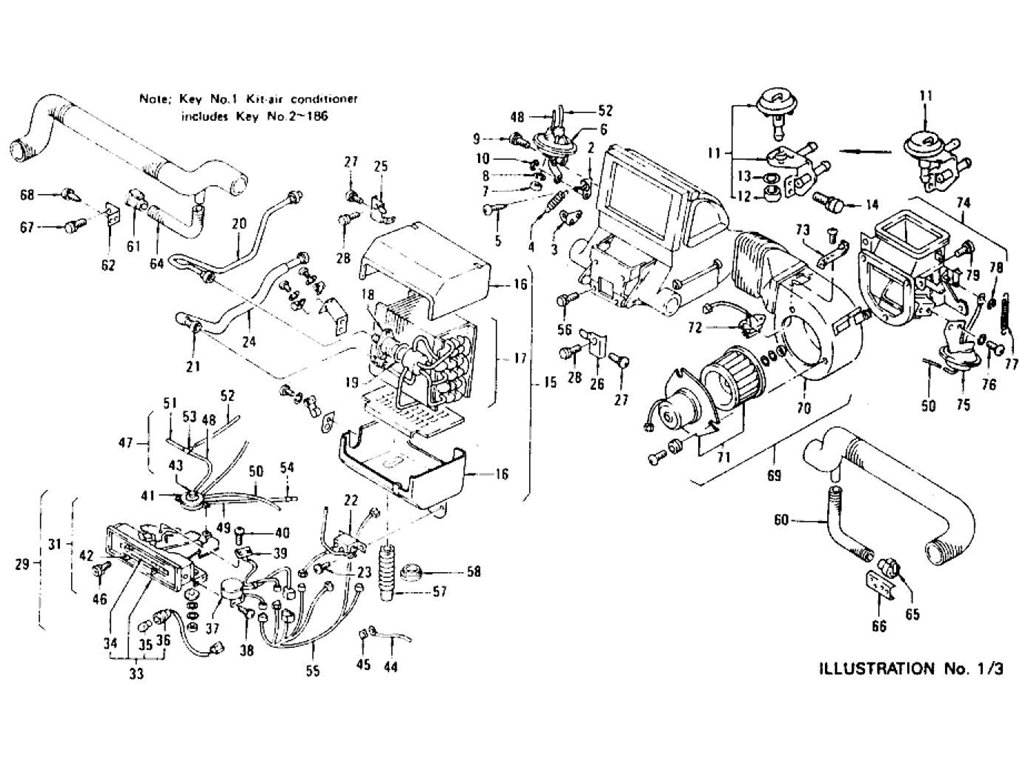

Air Conditioner (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KIT-AIR CONDITIONER | 27000-N3625 | OP. | 7408 | 1 | ||||
| 1 | KIT-AIR CONDITIONER | 27000-N4325 | OP. | 7409 | 7411 | 1 | |||
| 1 | KIT-AIR CONDITIONER | 27000-N4225 | OP. | 7412 | 7507 | 1 | No | No | 27000-N4325 |
| 1 | KIT-AIR CONDITIONER | 27000-N4226 | OP. | 7508 | 7607 | 1 | Yes | Yes | 27000-N4225 |
| 1 | KIT-AIR CONDITIONER | B7000-N4700 | OP. | 7608 | 7707 | 1 | No | No | 27000-N4226 |
| 1 | KIT-AIR CONDITIONER | B7000-N7600 | OP. | 7708 | 1 | B7000-N4700 | |||
| 2 | ASSY-LEVER MODE DOOR | 27037-N3600 | OP. | 1 | |||||
| 3 | SPRING-FIX | 27038-N3600 | OP. | 1 | |||||
| 4 | SPRING-RETURN | 27051-E4400 | OP. | 7403 | 1 | ||||
| 4 | SPRING-RETURN | 27051-N3100 | OP. | 1 | Yes | Yes | 27051-E4400 | ||
| 5 | SCREW-TAP | 08510-51623 | OP. | 1 | |||||
| 6 | ASSY-ACTUATOR VACUUM | 27081-N3100 | OP. | 1 | |||||
| 6 | ASSY-ACTUATOR VACUUM | 27081-N3600 | OP. | 7408 | 1 | ||||
| 7 | NUT-HEX (M5) | 08911-10510 | OP. | 2 | |||||
| 8 | WASHER-SPRING (M5) | 08915-13510 | OP. | 2 | |||||
| 9 | SCREW-MACHIEN WITH W | 08360-51226 | OP. | 2 | |||||
| 10 | RING-SNAP E TYPE | 00922-50410 | OP. | 1 | |||||
| 11 | ASSY-COCK WATER VAC | 27090-N3100 | OP. | 1 | |||||
| 12 | NUT-HEX (M5) | 08911-10510 | OP. | 4 | |||||
| 13 | WASHER-SPRING | 08915-13510 | OP. | 4 | |||||
| 14 | SCREW-MACHINE WITH W | 08310-51214 | OP. | 2 | |||||
| 15 | ASSH-UNIT COOLING | 27610-N3100 | OP. | 7411 | 1 | ||||
| 15 | SERVICE FILE COOLING UNIT | 27610-N3110 | OP. | 1 | No | No | 27610-N3100 | ||
| 16 | ASSY-CASE EVAPORATOR | 27615-N3100 | OP. | 1 | |||||
| 17 | ASSY-EVAPORATOR | 27621-N3100 | OP. | 7411 | 1 | ||||
| 17 | ASSY-EVAPORATOR | 27621-N3110 | OP. | 1 | No | No | 27621-N3100 | ||
| 18 | ASSY-VALVE EXP W/"O" | 27625-U5225 | OP. | 1 | |||||
| 19 | "O"RING | 27624-U5200 | OP. | 2 | |||||
| 20 | ASSY-PIPE INLET | 27626-N3100 | OP. | 1 | |||||
| 21 | ASSY-PIPE OUTLET | 27627-N3100 | OP. | 7411 | 1 | ||||
| 21 | ASSY-PIPE OUTLET | 27627-N3110 | OP. | 1 | No | No | 27627-N3100 | ||
| 22 | ASSY-SWITCH THERMO W | 27045-N3100 | OP. | 1 | |||||
| 23 | SCREW-MACHINE WITH W | 08310-40814 | OP. | 2 | |||||
| 24 | INSULATOR | 27755-65000 | OP. | 1 | |||||
| 25 | BRACKET-HEAT UNIT UP | 27125-N3100 | OP. | 1 | |||||
| 26 | BRACKET-HEAT UNIT UP | 27126-N3100 | OP. | 1 | |||||
| 27 | SCREW-TRUSS HEAO (UP | 08340-51012 | OP. | 4 | |||||
| 28 | SCREW-MACHINE WITH W | 08360-51226 | OP. | 2 | |||||
| 29 | ASSY-CONTROL & BRACK | 27029-N3600 | OP. | 7411 | 1 | ||||
| 29 | ASSY-CONTROL & BRACK | 27029-N4200 | OP. | 1 | Yes | Yes | 27029-N3600 | ||
| 29 | ASSY-CONTROL & BRACK | 27029-N4220 | OP. | 7508 | 7607 | 1 | No | No | 27029-N4200 |
| 29 | ASSY-CONTROL & BRACK | 27029-N4700 | OP. | 7608 | 1 | No | No | 27029-N4220 | |
| 30 | BRACKET-CONTROL COOL | 27039-N3100 | OP. | 1 | |||||
| 31 | ASSY-CONTROL AIR CON | 27030-N3100 | OP. | 7411 | 1 | ||||
| 31 | ASSY-CONTROL AIR CON | 27030-N3110 | OP. | 7607 | 1 | ||||
| 31 | ASSY-CONTROL AIR CON | 27030-N4600 | OP. | 7608 | 1 | No | No | 27030-N3110 | |
| 32 | ASSY-LINK CONTROL | 27035-N3100 | OP. | 1 | |||||
| 33 | ASSY-FINISHER CONTRO | 27032-N3100 | OP. | 7411 | 1 | ||||
| 33 | ASSY-FINISHER CONTRO | 27032-N3110 | OP. | 7607 | 1 | ||||
| 33 | ASSY-FINISHER CONTRO | 27032-N4600 | OP. | 7608 | 1 | No | No | 27032-N3110 | |
| 34 | PLATE-FINISHER AIR C | 27033-N3110 | OP. | 7607 | 1 | ||||
| 34 | PLATE-FINISHER AIR C | 27033-N4601 | OP. | 7608 | 1 | No | No | 27033-N3110 | |
| 35 | ASSY-BULB | 26261-89900 | OP. | 1 | |||||
| 36 | ASSY-SOCKET BULB | 27134-N3100 | OP. | 1 | |||||
| 37 | ASSY-SWITCH FAN | 27041-U0100 | OP. | 1 | |||||
| 38 | SCREW-MACHINE | 08310-40814 | OP. | 2 | |||||
| 39 | ASSY-SWITCH MICRO | 27046-U0100 | OP. | 1 | |||||
| 40 | SCREW-MACHINE WITH W | 08310-31814 | OP. | 2 | |||||
| 41 | ASSY-SELECTRO VACUUM | 27031-N3100 | OP. | 7411 | 1 | ||||
| 41 | ASSY-SELECTRO VACUUM | 27031-N3110 | OP. | 1 | No | No | 27031-N3100 | ||
| 42 | KNOB-CONTROL | 27148-Y0100 | OP. | 1 | |||||
| 43 | RING-SNAP E | 00922-50610 | OP. | 2 | |||||
| 44 | ROD-CONTROL (COLD-HO | 27147-N3100 | OP. | 1 | |||||
| 45 | NUT-SPRING PUSH ON ( | 27148-N3100 | OP. | 1 | |||||
| 46 | SCREW-H/W WITH WASHE | 08360-61426 | OP. | 4 | |||||
| 47 | ASSY-HOSE VAC CONTRO | 27027-N3600 | OP. | 1 | |||||
| 48 | HOSE-VAC (L=440) | 27718-N3111 | OP. | 1 | |||||
| 49 | HOSE-VAC (L=300) | 27711-N3111 | OP. | 1 | |||||
| 50 | HOSE-VAN (L=500) | 27721-N3111 | OP. | 1 | |||||
| 51 | HOSE-VAC (L=460) | 27719-N3111 | OP. | 1 | |||||
| 52 | HOSE-VAN (L=30) | 27096-N3100 | OP. | 1 | |||||
| 53 | CONNECTOR-VAC HOSE ( | 27029-P0100 | OP. | 1 | |||||
| 54 | CONNECTOR-VAC HOSE ( | 27098-Y0100 | OP. | 1 | |||||
| 55 | ASSY-HARNESS AIR CON | 27055-N3600 | OP. | 1 | |||||
| 56 | SCREW | 08363-61226 | OP. | 4 | |||||
| 57 | HOSE-DRAIN | 27619-E4400 | OP. | 1 | |||||
| 58 | GROMMET-HOSE | 27687-65000 | OP. | 1 | |||||
| 59 | DUCT-AIR CONDITIONER | 27605-N3600 | OP. | 7607 | 1 | ||||
| 60 | DUCT-AIR CONDITIONER | 27666-N3100 | OP. | 1 | |||||
| 60 | DUCT-AIR CONDITIONER | 27666-N4700 | OP. | 7608 | 1 | No | No | 27666-N3100 | |
| 61 | GRILLE-AIR CONDITION | 27663-N3100 | OP. | 1 | |||||
| 61 | GRILLE-AIR CONDITION | 27661-N4701 | OP. | 7608 | 1 | No | No | 27663-N3100 | |
| 62 | BRACKET-FLOOR GRILLE | 27672-N3600 | OP. | 1 | |||||
| 63 | DUCT-AIR CONDITIONER | 27606-N3600 | OP. | 7507 | 1 | ||||
| 64 | DUCT-AIR CONDITIONER | 27667-N3100 | OP. | 7507 | 1 | ||||
| 65 | GRILLE-AIR CONDITION | 27662-N3100 | OP. | 7507 | 1 | ||||
| 66 | BRACKET-FLOOR GRILLE | 27673-N3100 | OP. | 7507 | 1 | ||||
| 67 | SCREW-TRUSS (M4) (GR | 08340-40812 | OP. | 6 | |||||
| 68 | SCREW-TRUSS (M6) (IN | 08440-61212 | OP. | 4 | |||||
| 69 | COMP-BLOWER & AIR IN | 27060-N3600 | OP. | 1 | |||||
| 70 | ASSY-BLOWER AIR COND | 27061-N3600 | OP. | 1 | |||||
| 71 | ASSY-FAN WITH MOTOR | 27070-U0100 | OP. | 1 | |||||
| 72 | RESISTANCE-COOLER | 27077-N3100 | OP. | 1 | |||||
| 73 | CLIP | 01552-00021 | OP. | 1 | |||||
| 74 | COMP-AIR INTAKE BOX | 27010-N3600 | OP. | 1 | |||||
| 75 | ASSY-ACTUATOR VACUUM | 27080-N3600 | OP. | 1 | |||||
| 75 | ASSY-ACTUATOR VACUUM | 27080-N3601 | OP. | 1 | Yes | Yes | 27080-N3600 | ||
| 76 | SCREW-MACHINE WITH W | 08310-51226 | OP. | 2 | |||||
| 77 | SPRING-RETURN (ACTUA | 27052-E4400 | OP. | 1 | |||||
| 78 | RING-SNAP E TYPE (AC | 00922-50410 | OP. | 1 | |||||
| 79 | SCREW | 08363-61226 | OP. | 3 | |||||
| 80 | GROMMET (DASH FIX) | 27681-E0100 | OP. | 1 | |||||
| 81 | COVER-GROMMET (DASH | 27682-73000 | OP. | 1 | |||||
| 82 | SCREW-TAPPING (DASH | 08510-51612 | OP. | 1 | |||||
| 83 | ASSY-HOSE VAC ENGINE | 27028-N3600 | OP. | 7408 | 1 | ||||
| 83 | ASSY-HOSE VAC ENGINE | 27028-N4305 | OP. | 7409 | 1 | ||||
| 83 | ASSY-HOSE VAC ENGINE | 27028-N4200 | OP. | 7412 | 7607 | 1 | |||
| 83 | ASSY-HOSE VAC ENGINE | 27028-N4700 | OP. | 7608 | 7611 | 1 | No | No | 27028-N4200 |
| 83 | ASSY-HOSE VAC ENGINE | 27028-N4701 | OP. | 7612 | 1 | Yes | Yes | 27028-N4700 | |
| 84 | CLIP | 01552-00081 | OP. | 8 | |||||
| 85 | CLIP | 22472-B8000 | OP. | 2 | Yes | Yes | 24220-89963 | ||
| 85 | CLIP | 24220-89963 | OP. | 2 | |||||
| 86 | ASSY-COMPRESSOR | 27630-U5200 | OP. | 7503 | 1 | ||||
| 86 | ASSY-COMPRESSOR | 27630-N4200 | OP. | 7504 | 7509 | 1 | Yes | Yes | 27630-U5200 |
| 86 | ASSY-COMPRESSOR | 27630-N4202 | OP. | 7510 | 1 | Yes | Yes | 27630-N4200 | |
| 87 | ASSY-UNIT COMPRESSOR | 27631-U5200 | OP. | 1 | |||||
| 87 | ASSY-UNIT COMPRESSOR | 27631-U6800 | OP. | 7509 | 1 | Yes | Yes | 27631-U5200 | |
| 87 | ASSY-UNIT COMPRESSOR | 27631-U6802 | OP. | 7510 | 2 | Yes | Yes | 27631-U6800 | |
| 88 | HOUSING-COMPRESSOR | 27634-U5210 | OP. | 1 | |||||
| 89 | ASSY-CYLINDER COMPRE | 27635-U5210 | OP. | 1 | |||||
| 89 | ASSY-CYLINDER COMPRE | 27635-U6810 | OP. | 7510 | 1 | ||||
| 90 | COVER-END FRONT | 27637-U5210 | OP. | 1 | |||||
| 90 | COVER-END FRONT | 27631-U6810 | OP. | 7510 | 1 | ||||
| 91 | COVER-END REAR | 27638-U5210 | OP. | 1 | |||||
| 91 | COVER-END REAR | 27648-U5211 | OP. | 1 | Yes | Yes | 27638-U5210 | ||
| 92 | SET-BODY DISCHARGE | 27646-U5211 | OP. | 1 | |||||
| 93 | COVER-SIDE COMPRESSO | 27639-U5210 | OP. | 1 | |||||
| 94 | HEAD-CYLINDER FRONT | 27641-U5210 | OP. | 1 | |||||
| 95 | HEAD-CYLINDER REAR | 27642-U5210 | OP. | 1 | |||||
| 96 | PLATE-SUCTION VALVE | 27643-U5210 | OP. | 2 | |||||
| 97 | SET-GASKET | 27638-U5211 | OP. | 1 | |||||
| 98 | ASSY-PUMP OIL | 27655-U5210 | OP. | 1 | |||||
| 99 | SET-SEAL SHAFT | 27636-U5211 | OP. | 7509 | 1 | ||||
| 99 | SET-SEAL SHAFT | 27636-U5212 | OP. | 7510 | 1 | Yes | Yes | 27636-U5211 | |
| 100 | SET-SILENCER | 27641-P0120 | OP. | 1 | |||||
| 101 | SET-"O" RING | 27644-U5211 | OP. | 1 | |||||
| 102 | PIN-KNOK | 27672-U5210 | OP. | 4 | |||||
| 103 | SET-OIL PIPE | 27645-U5211 | OP. | 1 | |||||
| 104 | SET-BOLT | 27647-U5211 | OP. | 1 | |||||
| 105 | ASSY-CLUTCH COMPRESS | 27633-U5200 | OP. | 1 | |||||
| 105 | SET-MAGNET CLUTCH | 27635-U5211 | OP. | 1 | Yes | Yes | 27633-U5200 | ||
| 105 | SET-MAGNET CLUTCH | 27635-N4210 | OP. | 7510 | 1 | ||||
| 106 | SET-REPAIR MAGNET CL | 27649-U5211 | OP. | 1 | |||||
| 107 | ASSY-CONDENSER | 27650-N3100 | OP. | 7408 | 1 | ||||
| 107 | ASSY-CONDENSER | 27650-N3110 | OP. | 7607 | 1 | ||||
| 107 | ASSY-CONDENSER | 27650-N4600 | OP. | 7608 | 1 | Yes | Yes | 27650-N3110 | |
| 108 | SCREW (FIX CLIP) | 08360-61414 | OP. | 1 | |||||
| 109 | ASSY-TANK LIQUID WIT | 27640-N3601 | OP. | 7408 | 1 | ||||
| 109 | ASSY-TANK LIQUID WIT | 27640-N4200 | OP. | 7409 | 7607 | 1 | |||
| 109 | ASSY-TANK LIQUID WIT | 27640-N4700 | OP. | 7608 | 1 | No | No | 27640-N4200 | |
| 110 | ASSY-TANK LIQUID WIT | 27641-N3601 | OP. | 1 | |||||
| 111 | ASSY-TANK LIQUID | 27641-N3100 | OP. | 1 | Yes | Yes | 27642-N3601 | ||
| 111 | ASSY-TANK LIQUID | 27642-N3601 | OP. | 1 | |||||
| 112 | ASSY-SWITCH PRESSURE | 27647-N3600 | OP. | 7408 | 1 | ||||
| 112 | ASSY-SWITCH PRESSURE | 27647-N6100 | OP. | 7409 | 1 | ||||
| 113 | BRACKET-LIQUID TANK | 27645-N3100 | OP. | 1 | |||||
| 114 | SCREW-MACHINE WITH W | 08360-61426 | OP. | 2 | |||||
| 115 | ASSY-HOSE AIR CONDIT | 27681-N3101 | OP. | 1 | |||||
| 116 | ASSY-HOSE AIR CONDIT | 27682-N3102 | OP. | 7607 | 1 | ||||
| 116 | ASSY-HOSE AIR CONDIT | 27682-N4600 | OP. | 7608 | 1 | No | No | 27682-N3102 | |
| 117 | ASSY-PIPE W/CLAMP EV | 27675-N3600 | OP. | 7411 | 1 | ||||
| 117 | ASSY-PIPE W/CLAMP EV | 27675-N4200 | OP. | 7412 | 7607 | 1 | |||
| 117 | ASSY-PIPE W/CLAMP EV | 27675-N4700 | OP. | 7608 | 1 | No | No | ||
| 118 | SCREW-MACHINE WITH W | 08360-51426 | OP. | 7408 | 3 | ||||
| 118 | SCREW-MACHINE WITH W | 08360-61426 | OP. | 3 | |||||
| 119 | ASSY-PIPE W/CLAMP CO | 27677-N3100 | OP. | 7607 | 1 | ||||
| 119 | ASSY-PIPE W/CLAMP CO | 27677-N4600 | OP. | 7608 | 1 | No | No | 27677-N3100 | |
| 120 | SCREW-MACHINE WITH W | 08360-51426 | OP. | 7408 | 1 | ||||
| 120 | SCREW-MACHINE WITH W | 08360-61426 | OP. | 7409 | 1 | ||||
| 121 | ASSY-PIPE W/CLAMP L/ | 27679-N3100 | OP. | 1 | |||||
| 121 | ASSY-PIPE W/CLAMP L/ | 27679-N4200 | OP. | 7412 | 7607 | 1 | No | No | 27679-N3100 |
| 121 | ASSY-PIPE W/CLAMP L/ | 27679-N4601 | OP. | 7608 | 1 | No | No | 27679-N4200 | |
| 121 | ASSY-PIPE W/CLAMP L/ | 27679-N4603 | OP. | 7608 | 1 | Yes | Yes | 27679-N4601 | |
| 122 | SCREW | 08360-61426 | OP. | 7409 | 3 | ||||
| 122 | SCREW-MACHINE WITH W | 08360-51426 | OP. | 2 | |||||
| 123 | ASSY-TANK VACUUM | 27084-N3100 | OP. | 7408 | 1 | ||||
| 123 | ASSY-TANK VACUUM | 27084-N3110 | OP. | 1 | |||||
| 123 | ASSY-TANK VACUUM | 27084-N3115 | OP. | 7607 | 1 | Yes | Yes | 27084-N3110 | |
| 123 | ASSY-TANK VACUUM | 27084-N4600 | OP. | 7608 | 1 | 27084-N3115 | |||
| 124 | TANK-VACUUM | 27085-P0100 | OP. | 1 | |||||
| 125 | BRACKET-TANK VAC | 27086-N3100 | OP. | 7408 | 1 | ||||
| 126 | CONNECTOR-TANK VACUU | 27094-Y0100 | OP. | 2 | |||||
| 127 | ASSY-VALVE W/BRACKET | 27087-N3110 | OP. | 7410 | 1 | ||||
| 127 | ASSY-VALVE W/BRACKET | 27087-N3115 | OP. | 7411 | 7607 | 1 | Yes | Yes | 27087-N3110 |
| 127 | ASSY-VALVE W/BRACKET | 27087-N4600 | OP. | 7608 | 1 | No | No | 27087-N3115 | |
| 128 | ASSY-VALVE AIR MAGEN | 27659-N3110 | OP. | 1 | |||||
| 128 | ASSY-VALVE AIR MAGNE | 27659-N3100 | OP. | 7408 | 1 | ||||
| 129 | ASSY-VALVE AIR MAGNE | 27659-N3110 | OP. | 1 | |||||
| 129 | ASSY-VALVE AIR MAGNE | 27659-P0101 | OP. | 7408 | 1 | ||||
| 130 | SCREW-MACHINE WITH W | 08310-40814 | OP. | 7408 | 6 | ||||
| 130 | SCREW-MACHINE WITH W | 08310-50814 | OP. | 6 | |||||
| 131 | ASSY-VALVE CHECK VAC | 27096-U0100 | OP. | 7410 | 1 | ||||
| 131 | ASSY-VALVE CHECK VAC | 27096-F2000 | OP. | 7411 | 1 | Yes | Yes | 27096-U0100 | |
| 132 | NUT-HEX (M8) (CHECK | 08911-50810 | OP. | 7410 | 1 | ||||
| 132 | NUT-SPRING PUSH ON | 27088-N6300 | OP. | 7411 | 1 | ||||
| 133 | WASHER-SPRING | 08915-13810 | OP. | 7410 | 1 | ||||
| 134 | HOSE-VACUUM | 27026-U0100 | OP. | 2 | |||||
| 135 | CLAMP | 08723-11400 | OP. | 2 | |||||
| 135 | CLAMP | 16439-22100 | OP. | 2 | Yes | Yes | 08723-11400 | ||
| 136 | CONNECTOR-VAC HOSE | 27029-P0100 | OP. | 1 | |||||
| 137 | HOSE-VAC | 27096-N3100 | OP. | 2 | |||||
| 138 | SCREW-MACHINE WITH W | 08360-51426 | OP. | 7408 | 3 | ||||
| 138 | SCREW-MACHINE WITH W | 08363-61626 | OP. | 2 | |||||
| 139 | ASSY-RELAY | 25230-89954 | OP. | 7408 | 1 | ||||
| 139 | ASSY-RELAY | 25230-N4205 | OP. | 1 | |||||
| 139 | ASSY-RELAY | 25230-H7200 | OP. | 7708 | 1 | 25230-N4205 | |||
| 140 | SCREW-MACHINE WITH W | 08518-51612 | OP. | 2 | |||||
| 140 | SCREW-MACHINE WITH W | 25234-N4400 | OP. | 7608 | 2 | ||||
| 141 | ASSY-ACTUATOR FAST I | 27655-N3100 | OP. | 1 | |||||
| 141 | ASSY-ACTUATOR FAST I | 27655-N3200 | OP. | 7412 | 1 | ||||
| 142 | SCREW | 08360-81414 | OP. | 7412 | 3 | ||||
| 143 | REFRIGERANT-COOLER | 27706-65000 | OP. | 3 | |||||
| 144 | LABEL-CAUTION AIR CO | 27003-N3600 | OP. | 1 | |||||
| 145 | BRACKET-A | 27657-N3600 | OP. | 7411 | 1 | ||||
| 146 | BRACKET-B | 27658-N3600 | OP. | 7411 | 1 | ||||
| 147 | SCREW-MACHINE WITH W | 08360-51214 | OP. | 7411 | 2 | ||||
| 148 | SCREW-MACHINE WITH W | 08360-61426 | OP. | 7411 | 1 | ||||
| 149 | LEVER-FICD | 27654-N3200 | OP. | 7412 | 1 | ||||
| 150 | SCREW | 08330-41296 | OP. | 7412 | 1 | ||||
| 151 | PLUG-CONNECTOR VAC | 27614-78200 | OP. | 7412 | 7707 | 1 | |||
| 152 | BRACKET-COMPRESSOR | 11910-N3601 | OP. | 1 | |||||
| 152 | BRACKET-COMPRESSOR | 11910-N4200 | OP. | 7412 | 1 | No | No | 11910-N3601 | |
| 153 | BOLT-HEX M10X1.25 (B | 08131-03810 | OP. | 2 | |||||
| 154 | BOLT-HEX M10X1.25 (B | 08131-05010 | OP. | 2 | |||||
| 155 | WASHER-SPRING M10 (B | 08915-14010 | OP. | 4 | |||||
| 156 | BOLT-HEX M10X1.5 (CO | 08131-03010 | OP. | 4 | |||||
| 157 | WASHER-SPRING M10 (C | 08915-14010 | OP. | 4 | |||||
| 158 | SHIM-ALTERNATOR (T=0 | 11713-U0500 | OP. | 8 | |||||
| 159 | SHIM-ALTERNATOR (T=0 | 11713-U0501 | OP. | 8 | |||||
| 160 | BELT-COMPRESSOR (L=9 | 11920-N3600 | OP. | 1 | |||||
| 161 | ASSY-PULLEY IDLER CO | 11925-U6000 | OP. | 1 | |||||
| 162 | BRACKET-PULLEY IDLER | 11926-U6000 | OP. | 1 | |||||
| 162 | BRACKET-PULLEY IDLER | 11926-Y4000 | OP. | 7508 | 1 | Yes | Yes | 11926-U6000 | |
| 163 | BOLT-HEX M8X1.25 (BR | 08130-81610 | OP. | 1 | |||||
| 164 | BOLT-HEX M6X1.0 (BRA | 08130-62010 | OP. | 2 | |||||
| 165 | WASHER SPRING LOCK M | 08915-13610 | OP. | 2 | |||||
| 166 | ASSY-PULLEY WITH DAM | 12303-N3600 | OP. | 1 | |||||
| 167 | INDICATOR-TIMING | 13502-N3600 | OP. | 1 | |||||
| 168 | SCREW-HEX HEAD M6 (I | 08360-60812 | OP. | 1 | |||||
| 169 | WASHER-SPRING (INDIC | 08915-13610 | OP. | 1 | |||||
| 170 | BOLT-HEX M8 (INDICAT | 08010-87510 | OP. | 1 | |||||
| 171 | WASHER-SPRING (INDIC | 08915-13810 | OP. | 1 | |||||
| 172 | BOLT-HEX M8 (AIR PUM | 08110-89010 | OP. | 1 | |||||
| 173 | PULLEY-AIR PUMP | 14850-N3610 | OP. | 7408 | 1 | ||||
| 174 | BOLT-AIR PUMP TO BRA | 14842-N3611 | OP. | 7408 | 1 | ||||
| 175 | BAR-ADJUSTING AIR PU | 14841-N3610 | OP. | 7408 | 1 | ||||
| 176 | partNumber | BELT-AIR PUMP (L=737 | |||||||
| 176 | partNumber | 14853-N3610 | OP. | 7408 | 1 | ||||
| 177 | HOSE-A/C TO AIR PUMP | 14861-N3613 | OP. | 7408 | 1 | ||||
| 178 | HOSE-AIR PUMP TO CHE | 14861-N3613 | OP. | 7408 | 1 | ||||
| 179 | ASSY-SHROUD RADIATOR | 21475-N3100 | OP. | 7408 | 1 | ||||
| 180 | SHROUD-RADIATOR UPPE | 21476-N3100 | OP. | 7408 | 1 | ||||
| 180 | SHROUD-RADIATOR UPPE | 21476-N4200 | OP. | 7409 | 7707 | 1 | |||
| 181 | SHROUD-RADIATOR LOWE | 21477-N3100 | OP. | 7408 | 1 | ||||
| 181 | SHROUD-RADIATOR LOWE | 21477-N4200 | OP. | 7409 | 7707 | 1 | |||
| 182 | NUT-SPRING | 21477-U3900 | OP. | 7409 | 4 | ||||
| 183 | SCREW-TAPPING | 08510-41623 | OP. | 7408 | 8 | ||||
| 183 | SCREW-TAPPING | 01461-00071 | OP. | 7409 | 9 | ||||
| 184 | CLIP | 24220-89968 | OP. | 7411 | 1 | ||||
| 184 | CLIP | 24220-H6600 | OP. | 7707 | 1 | ||||
| 185 | PLUG-CONNECTOR | 47475-N3305 | OP. | 7411 | 1 | ||||
| 186 | PLUG-CONNECTOR | 47475-N3325 | OP. | 7411 | 1 |
