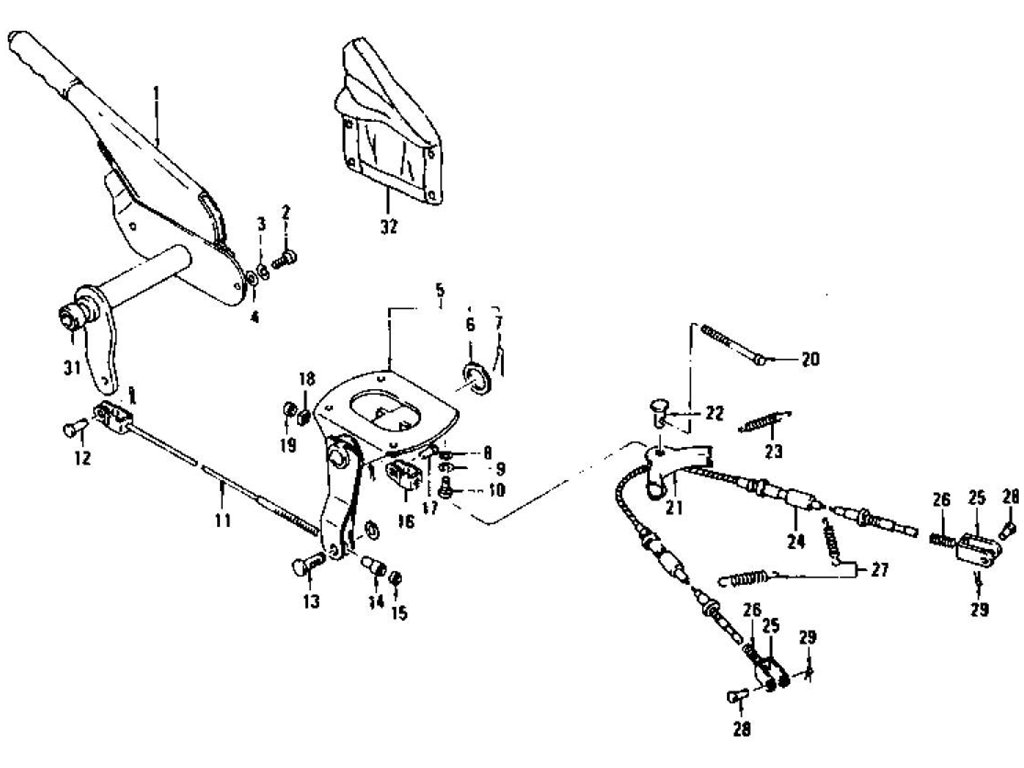

Hand Brake Hand Brake & Hand Brake Cable
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-HAND BRAKE CONT | 36010-E4101 | | | | 1 | | | |
|
1 | ASSY-HEAD BRAKE CONT | 36010-E4102 | | | 7408 | 1 | Yes | Yes | 36010-E4101 |
|
1 | ASSY-HEAD BRAKE CONT | 36010-E4103 | | | 7408 | 1 | Yes | Yes | 36010-E4102 |
|
1 | ASSY-HEAD BRAKE CONT | 36010-N4500 | | 7409 | | 1 | Yes | Yes | 36010-E4102 |
|
2 | BOLT-HEX | 08130-82010 | | | 7307 | 2 | | | |
|
2 | BOLT-HEX WITH WASHER | 08120-82533 | 2 SEATER | 7308 | | 2 | | | |
|
3 | WASHER-SPRING | 08915-23810 | | | | 2 | | | |
|
4 | WASHER-PLAIN | 08915-43810 | | | | 2 | | | |
|
5 | ASSY-CENTER ARM HAND | 36210-E4102 | | | 7307 | 1 | | | |
|
5 | ASSY-CENTER ARM HAND | 36210-N4600 | | 7608 | | 1 | No | No | 36210-N4500 |
|
5 | ASSY-CENTER ARM HAND | 36210-N3401 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 36210-E4102 |
|
5 | ASSY-CENTER ARM HAND | 36210-N4500 | 2 SEATER 2+2 SEAT ER | 7409 | 7607 | 1 | No | No | 36210-N3401 |
|
6 | WASHER-HAND BRAKE SH | 30693-58000 | | | | 1 | | | |
|
7 | PIN-COTTER | 00921-23010 | | | 7307 | 1 | | | |
|
7 | PIN-COTTER | 00921-23000 | 2 SEATER | 7308 | | 1 | No | No | 00921-23010 |
|
8 | WSHER-PLAIN | 08915-53610 | | | | 4 | | | |
|
9 | WASHER-SPRING | 08915-23810 | | | | 4 | | | |
|
10 | BOLT-HEX | 08110-61810 | | | 7307 | 4 | | | |
|
10 | BOLT-HEX WITH SPRING | 08120-61633 | 2 SEATER | 7308 | | 4 | No | No | 08110-61810 |
|
11 | ASSY-ROD HAND BRAKE | 36541-E4101 | | | 7408 | 1 | | | |
|
11 | ASSY-ROD HAND BRAKE | 36541-N3700 | 2+2 SEATER | 7310 | 7408 | 1 | | | |
|
11 | ASSY-ROD HAND BRAKE | 36541-N4521 | 2+2 SEATER | 7409 | | 1 | No | No | 36541-N3700 |
|
11 | ASSY-RODL HAND BRAKE | 36541-N4501 | 2 SEATER | 7409 | | 1 | No | No | 36541-E4101 |
|
12 | PIN-CLEVIS | 00840-81800 | | | 7307 | 1 | | | |
|
12 | PIN-CLEVIS | 00840-81810 | 2 SEATER | 7308 | | 1 | No | No | 00840-81800 |
|
13 | TRUNION-PIN BRAKE CA | 30676-B0700 | OP | | | 1 | Yes | Yes | 36408-36700 |
|
13 | TRUNNION-PIN BRAKE C | 36408-36700 | | | | 1 | | | |
|
13 | TRUNNION-PIN BRAKE C | 36425-04100 | | | 7112 | 1 | Yes | Yes | 36408-36700 |
|
13 | TRUNNION-PIN BRAKE C | 36425-E8700 | | 7201 | 7307 | 1 | Yes | Yes | 36425-04100 |
|
13 | TRUNNION-PIN BRAKE C | 36425-N3401 | 2 SEATER 2+2 SEAT ER | 7308 | | 1 | No | No | 36425-E8700 |
|
14 | NUT-ADJUST HAND BRAK | 36437-18000 | | | | 1 | Yes | Yes | 36437-21000 |
|
14 | NUT-ADJUST HAND BRAK | 36437-21000 | | | | 1 | | | |
|
15 | NUT-HEX | 08911-10610 | | | | 1 | | | |
|
16 | ASSY-CLEVIS HAND BRA | 36545-E4100 | | | | 1 | | | |
|
16 | ASSY-CLEVIS HAND BRA | 36546-E4100 | | | 7307 | 1 | Yes | Yes | 36545-E4100 |
|
16 | ASSY-CLEVIS HAND BRA | 36546-N4600 | | 7608 | | 1 | No | No | 36546-N4500 |
|
16 | ASSY-CLEVIS HAND BRA | 36546-N3401 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 36546-E4100 |
|
16 | ASSY-CLEVIS HAND BRA | 36546-N4500 | 2 SEATER 2+2 SEAT ER | 7409 | 7609 | 1 | No | No | 36546-N3401 |
|
17 | PIN-CLEVIS | 00840-81800 | | | 7307 | 1 | | | |
|
17 | PIN-CLEVIS | 00840-81810 | | 7308 | | 1 | No | No | 00840-81800 |
|
18 | NUT-SQUARE | 08913-10610 | | | | 1 | | | |
|
19 | NUT-HEX | 08911-10610 | | | | 1 | | | |
|
20 | BOLT-HAND BRAKE | 36217-E4100 | | | 7607 | 1 | | | |
|
21 | EQUALIZER-HAND BRAKE | 36518-E4100 | | | | 1 | | | |
|
22 | TRUNNION-PIN BRAKE C | 30676-B0700 | | | | 1 | Yes | Yes | 36408-36700 |
|
22 | TRUNNION-PIN BRAKE C | 36408-36700 | | | | 1 | | | |
|
22 | TRUNNION-PIN BRAKE C | 36519-E4100 | | | | 1 | Yes | Yes | 36408-36700 |
|
23 | SPRING-RETURN | 36515-E4100 | | | | 1 | | | |
|
24 | ASSY-CABLE HAND BRAK | 36543-E4100 | | | | 1 | | | |
|
24 | ASSY-CABLE HAND BRAK | 36543-E4101 | | | 7206 | 1 | Yes | Yes | 36543-E4100 |
|
24 | ASSY-CABLE HAND BRAK | 36543-N3000 | | 7207 | 7307 | 1 | Yes | Yes | 36543-E4101 |
|
24 | ASSY-CABLE HAND BRAK | 36543-N4600 | | 7608 | | 1 | No | No | 36543-N4502 |
|
24 | ASSY-CABLE HAND BRAK | 36543-N4601 | | 7712 | | 1 | Yes | Yes | 36543-N4600 |
|
24 | ASSY-CABLE HAND BRAK | 36543-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 1 | No | No | 36543-N3000 |
|
24 | ASSY-CABLE HAND BRAK | 36543-N4502 | 2 SEATER 2+2 SEAT ER | 7409 | 7607 | 1 | No | No | 36543-N3400 |
|
24 | CLEVICE HAND BRAKE C | 36544-N4600 | | 7712 | | 2 | | | |
|
25 | CLEVIS-HAND BRAKE | 36402-F0200 | | | | 2 | Yes | Yes | 36532-E4100 |
|
25 | CLEVIS-HAND BRAKE | 36532-E4100 | | | | 2 | | | |
|
26 | SPRING-RETURN REAR C | 36547-E4102 | | | | 2 | | | |
|
27 | SPRING-REAR CABLE HA | 36516-E4101 | | | | 2 | | | |
|
27 | SPRING-REAR CABLE HA | 36516-E4102 | | | 7206 | 2 | Yes | Yes | 36516-E4101 |
|
27 | SPRING-REAR CABLE HA | 36516-N3000 | | 7207 | 7307 | 2 | Yes | Yes | 36516-E4102 |
|
27 | SPRING-REAR CABLE HA | 36516-N3402 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 2 | No | No | 36516-N3000 |
|
27 | SPRING-REAR CABLE HA | 36516-N4500 | 2 SEATER 2+2 SEAT ER | 7409 | | 2 | No | No | 36516-N3402 |
|
27 | SPRING-REAR CABLE HA | 36516-N4501 | 2 SEATER 2+2 SEAT ER | 7409 | | 2 | Yes | Yes | 36516-N4500 |
|
28 | PIN-CLEVIS | 00840-81610 | | | | 2 | | | |
|
29 | PIN-COTTER | 00921-21810 | | | | 2 | | | |
|
30 | RATAINER-HAND BRAKE | 36406-E4100 | | | 7307 | 4 | Yes | Yes | 36406-32200 |
|
30 | RETAINER-HAND BRAKE | 36406-32200 | | | | 4 | | | |
|
30 | RETAINER-HAND BRAKE | 36406-76500 | | | | 4 | Yes | Yes | 36406-32200 |
|
30 | RETAINER-HAND BRAKE | 36406-P0100 | 2 SEATER 2+2 SEAT ER | 7308 | | 4 | No | No | 36406-E4100 |
|
31 | BOOT-HAND BRAKE LEVE | 36436-N3400 | 2 SEATER | 7308 | | 1 | | | |
|
31 | BOOT-HAND BRAKE LEVE | 36463-E4100 | 2+2 SEATER | 7310 | | 1 | Yes | Yes | 36436-N3400 |
|
32 | COVER-HAND BRAKE LEV | 74980-E4101 | | | | 1 | | | |
|
32 | COVER-HAND BRAKE LEV | 74980-E8700 | | | | 1 | Yes | Yes | 74980-E4101 |
