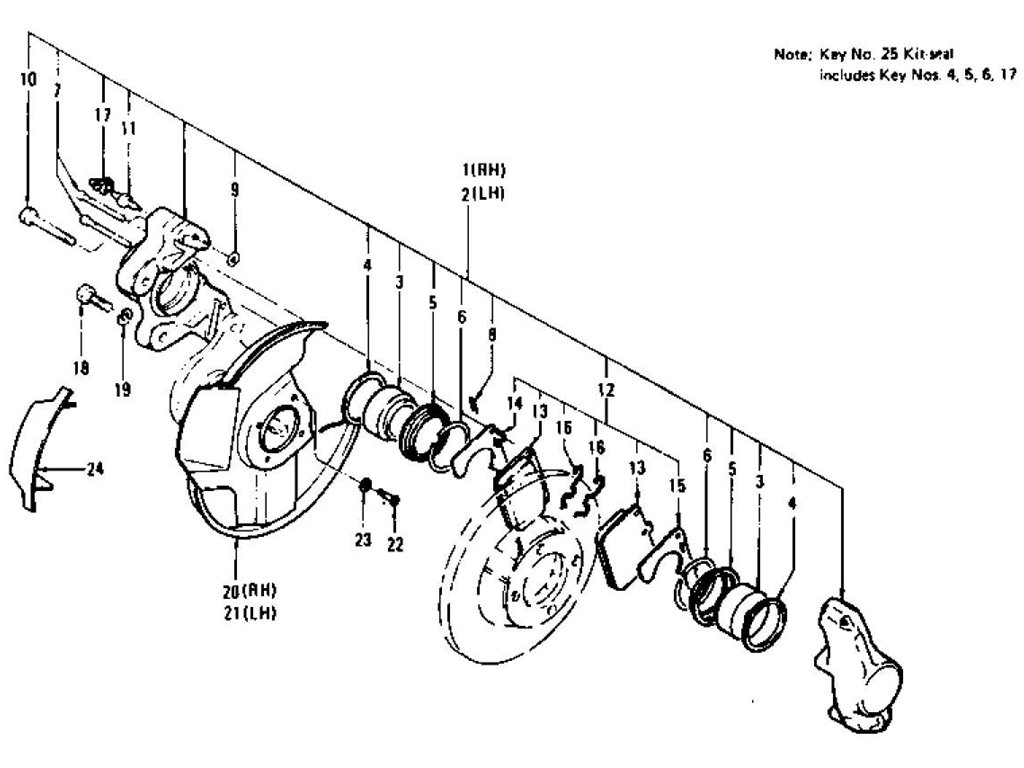

Front Brake Front Brake (Disc Brake)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CALIPER FRONT B | 41000-E4100 | | | 7209 | 1 | | | |
|
1 | ASSY-CALIPER FRONT B | 41000-N7600 | | | | 1 | Yes | Yes | 41000-N3001 |
|
1 | ASSY-CALIPER FRONT B | 41000-N3001 | | 7310 | | 1 | Yes | Yes | 41000-E4100 |
|
2 | ASSY-CALIPER FRONT B | 41010-E4100 | | | 7209 | 1 | | | |
|
2 | ASSY-CALIPER FRONT B | 41010-N7600 | | | | 1 | Yes | Yes | 41010-N3001 |
|
2 | ASSY-CALIPER FRONT B | 41010-N3001 | | 7210 | 7309 | 1 | Yes | Yes | 41010-E4100 |
|
3 | PISTON | 41120-E4100 | | | | 4 | | | |
|
3 | PISTON | 41122-A0100 | | | | 4 | Yes | Yes | 41120-E4100 |
|
4 | SEAL-PISTON | 41124-A0100 | | | | 4 | Yes | Yes | 41124-E4100 |
|
4 | SEAL-PISTON | 41124-E4100 | | | | 4 | | | |
|
5 | DUST-SEAL | 41127-A0100 | | | | 4 | Yes | Yes | 41127-E4100 |
|
5 | DUST-SEAL | 41127-E4100 | | | | 4 | | | |
|
6 | RETANING-RING | 41135-A0100 | | | | 4 | Yes | Yes | 41135-E4100 |
|
6 | RETANING-RING | 41135-E4100 | | | | 4 | | | |
|
7 | ASSY-PIN | 41117-E4100 | | | | 4 | | | |
|
7 | ASSY-PIN | 41217-A0100 | | 7509 | | 4 | Yes | Yes | 41117-E4100 |
|
8 | ASSY-CLIP | 41049-A0100 | | | | 4 | Yes | Yes | 41118-E4100 |
|
8 | ASSY-CLIP | 41118-E4100 | | | | 4 | | | |
|
9 | SEAL-CALIPER | 41109-84000 | | | | 4 | Yes | Yes | 41109-84000 |
|
9 | SEAL-CALIPER | 41158-68201 | | | | 4 | Yes | Yes | 41109-84000 |
|
10 | BOLT-BRIDGE | 41218-A0100 | | | | 8 | Yes | Yes | 41218-E4100 |
|
10 | SERVICE FILE BRIDGE BOLT | 41218-E4100 | | | | 8 | | | |
|
11 | SCREW-BREEDER | 41128-E4100 | | | | 2 | | | |
|
11 | SCREW-BREEDER | 41128-E4101 | | | | 2 | Yes | Yes | 41128-E4100 |
|
11 | SCREW-BREEDER | 41128-A0100 | | 7210 | | 2 | Yes | Yes | 41128-E4100 |
|
12 | KIT-PAD DISC BRAKE | 41060-E4125 | | | 7209 | 1 | | | |
|
12 | KIT-PAD DISC BRAKE | 41060-N3025 | | 7210 | 7604 | 1 | Yes | Yes | 41060-E4125 |
|
12 | KIT-PAD DISC BRAKE | 41060-N3026 | | 7210 | 7604 | 1 | Yes | Yes | 41060-E4125 |
|
12 | KIT-PAD DISC BRAKE | 41060-N3028 | | 7210 | 7604 | 1 | Yes | Yes | 41060-E4125 |
|
12 | KIT-PAD DISC BRAKE W | 41060-N4427 | | 7605 | | 1 | Yes | Yes | 41060-N3025 |
|
12 | KIT-PAD DISC BRAKE W | 41060-N4427 | | 7605 | | 1 | Yes | Yes | 41060-N4425 |
|
13 | ASSY-PAD | 41060-E4100 | | | 7209 | 4 | | | |
|
13 | ASSY-PAD | 41060-N3010 | | 7210 | | 4 | Yes | Yes | 41060-E4100 |
|
14 | SHIM RH | 41084-A0100 | | | | 2 | Yes | Yes | 41084-E4100 |
|
14 | SHIM RH | 41084-E4100 | | | | 2 | | | |
|
15 | SHIM LH | 41085-A0100 | | | | 2 | Yes | Yes | 41085-A0100 |
|
15 | SHIM LH | 41085-E4100 | | | | 2 | | | |
|
16 | SPRING-DUMPING | 41083-E4100 | | | | 4 | | | |
|
17 | CAP | 41129-30001 | | | | 2 | | | |
|
17 | CAP | 41129-A2410 | | | | 2 | Yes | Yes | 41129-30001 |
|
18 | BOLT-FIX CALIPER | 41250-E4100 | | | | 4 | | | |
|
19 | WASHER-LOCK M12 | 08915-24210 | | | | 4 | | | |
|
20 | PLATE-BAFFLE FRONT R | 41151-E4100 | | | 7005 | 1 | | | |
|
20 | PLATE-BAFFLE FRONT R | 41151-E4102 | | 7006 | 7408 | 1 | Yes | Yes | 41151-E4100 |
|
20 | PLATE-BAFFLE FRONT R | 41151-N3100 | | 7409 | | 1 | Yes | Yes | 41151-E4102 |
|
21 | PLATE-BAFFLE FRONT L | 41161-E4100 | | | 7005 | 1 | | | |
|
21 | PLATE-BAFFLE FRONT L | 41161-E4102 | | 7006 | 7408 | 1 | Yes | Yes | 41161-E4100 |
|
21 | PLATE-BAFFLE FRONT L | 41161-N3100 | | 7409 | | 1 | Yes | Yes | 4116U-E4102 |
|
22 | SCREW-MACHINE M6X1.0 | 08310-61012 | | | | 8 | | | |
|
23 | WASHER-LOCK M6 | 08915-13610 | | | | 8 | | | |
|
24 | COVER-BAFFLE PLATE L | 41162-E4100 | | | 7005 | 1 | | | |
|
24 | COVER-BAFFLE PLATE R | 41152-E4100 | | | 7005 | 1 | | | |
|
25 | KIT-SEAL | 41120-A0125 | | | | 1 | | | |
