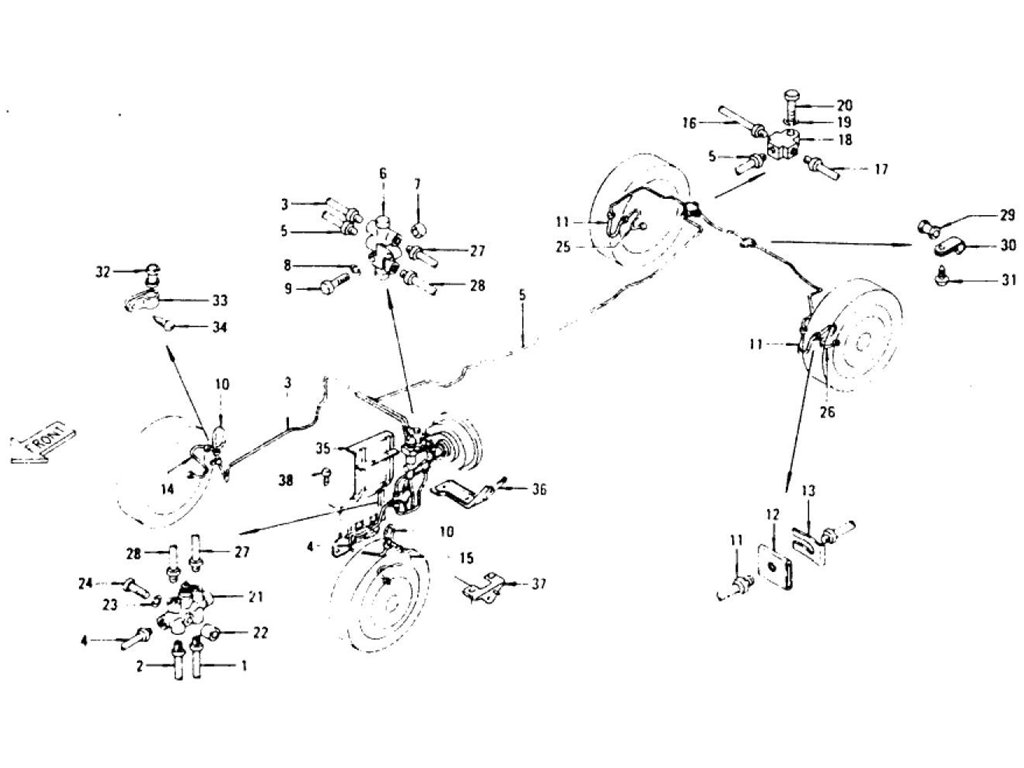

From Jul.-'72 Brake Piping (From Jul.-'72)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N3300 | | 7207 | 7301 | 1 | No | No | 46221-N3400 |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N3305 | | 7302 | 7307 | 1 | Yes | Yes | 46221-N3300 |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N3600 | | 7308 | | 1 | No | No | 46221-N3305 |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N7605 | CAL | | | 1 | Yes | Yes | 46221-N7600 |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N7600 | CAL | 7708 | | 1 | No | No | 46221-N3600 |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N4200 | FED | 7701 | 7707 | 1 | Yes | Yes | 46221-N3600 |
|
1 | ASSY-TUBE BRAKE MAST | 46221-N7605 | FED & CAN | 7708 | | 1 | No | No | 46221-N4200 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N4200 | | | | 1 | Yes | Yes | 46241-N3600 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N3300 | | 7207 | 7301 | 1 | | | |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N3305 | | 7302 | 7307 | 1 | Yes | Yes | 46241-N3300 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N3600 | | 7308 | | 1 | No | No | 46241-N3305 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N7600 | CAL | 7708 | | 1 | No | No | 46241-N4200 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N7605 | CAL | 7708 | | 1 | Yes | Yes | 46241-N7600 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N4200 | FED | 7701 | | 1 | Yes | Yes | 46241-N3600 |
|
2 | ASSY-TUBE BRAKE MAST | 46241-N7605 | FED & CAN | 7708 | | 1 | No | No | 46241-N3600 |
|
3 | ASSY-TUBE NP VALVE T | 46243-N4700 | | | 7608 | 0 | | | YN462-43N42 |
|
3 | ASSY-TUBE NP VALVE T | 46243-N3300 | | 7207 | 7301 | 1 | | | |
|
3 | ASSY-TUBE NP VALVE T | 46243-N3600 | | 7308 | 7408 | 1 | No | No | 46243-N3305 |
|
3 | ASSY-TUBE NP VALVE T | 46243-N4200 | | 7409 | 7607 | 1 | No | No | 46243-N3600 |
|
3 | ASSY-TUBE NP VALVE T | 46243-N4701 | FED | 7701 | | 1 | Yes | Yes | 46243-N4700 |
|
3 | ASSY-TUBE VALVE TO F | 46243-N3305 | | 7202 | 7207 | 1 | Yes | Yes | 46243-N3300 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-E8800 | | 7207 | 7301 | 1 | | | |
|
4 | ASSY-TUBE F/I TO FRO | 46245-E8805 | | 7302 | 7307 | 1 | Yes | Yes | 46245-E8800 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-N3600 | | 7308 | 7408 | 1 | No | No | 46245-E8805 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-N4200 | | 7409 | 7707 | 1 | No | No | 46245-N3600 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-N7605 | CAL | | | 1 | Yes | Yes | 46245-N7600 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-N7600 | CAL | 7708 | | 1 | No | No | 46245-N4200 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-N4201 | FED | 7701 | 7707 | 1 | Yes | Yes | 46245-N4200 |
|
4 | ASSY-TUBE F/I TO FRO | 46245-N7605 | FED & CANADA | 7708 | | 1 | No | No | 46245-N4201 |
|
5 | ASSY-TUBE NP VALVE T | 46223-N3300 | | 7207 | 7301 | 1 | | | |
|
5 | ASSY-TUBE NP VALVE T | 46223-N3305 | 2 SEATER | 7302 | 7408 | 1 | Yes | Yes | 46223-N3300 |
|
5 | ASSY-TUBE NP VALVE T | 46223-N4200 | 2 SEATER | 7409 | 7607 | 1 | No | No | 46223-N3305 |
|
5 | ASSY-TUBE NP VALVE T | 46223-N4704 | 2 SEATER USA | | | 1 | Yes | Yes | 46223-N4703 |
|
5 | ASSY-TUBE NP VALVE T | 46223-N4703 | 2 SEATER USA | 7608 | | 1 | No | No | 46223-N4200 |
|
5 | ASSY-TUBE NP VALVE T | 46223-N4100 | 2+2 SEATER | 7310 | 7408 | 1 | | | |
|
5 | ASSY-TUBE NP VALVE T | 46223-N4220 | 2+2 SEATER | 7409 | 7607 | 1 | No | No | 46223-N4100 |
|
5 | ASSY-TUBE NP VALVE T | 46223-N4713 | 2+2 SEATER USA | 7608 | | 1 | No | No | 46223-N4220 |
|
6 | ASSY-NP VALVE 4 WAY | 46400-N3000 | | 7207 | | 1 | | | |
|
6 | ASSY-NP VALVE 4 WAY | 46400-N4200 | | 7508 | | 1 | No | No | 46400-N3000 |
|
6 | ASSY-NP VALVE 4 WAY | 46400-N3700 | 2+2 SEATER | 7310 | | 1 | | | |
|
7 | SPACER-CONNECTOR BRA | 46257-21003 | | 7408 | | 1 | | | |
|
7 | SPACER-CONNECTOR BRA | 46257-N4200 | | 7409 | | 1 | | | |
|
8 | WASHER-LOCK MS | 08915-13610 | | | | 1 | | | |
|
9 | BOLT-HEX M6X1.0 | 08120-65010 | | 7408 | | 1 | | | |
|
9 | BOLT-HEX M6X1.0 | 08120-64510 | | 7409 | | 1 | No | No | 08120-65010 |
|
10 | ASSY-HOSE BRAKE FRON | 46202-89911 | | | 7408 | 2 | | | |
|
10 | ASSY-HOSE BRAKE FRON | 46212-89911 | | | | 2 | Yes | Yes | 46202-89911 |
|
10 | ASSY-HOSE BRAKE FRON | 46203-N4500 | | 7409 | | 2 | No | No | 46202-89911 |
|
11 | ASSY-HOSE BRAKE REAR | 46202-89913 | | 7408 | | 2 | | | |
|
11 | ASSY-HOSE BRAKE REAR | 46202-N4500 | | 7409 | | 2 | Yes | Yes | 46202-89913 |
|
12 | PLATE-LOCK BRAKE HOS | 46205-61000 | | | | 8 | | | |
|
13 | SPRING-LOCK BRAKE HO | 46206-18000 | | | 7307 | 8 | | | |
|
13 | SPRING-LOCK BRAKE HO | 46206-M0200 | | 7308 | | 8 | No | No | 46206-18000 |
|
14 | ASSY-TUBE BRIDGE FRO | 41220-E8710 | | | 7408 | 1 | | | |
|
14 | ASSY-TUBE BRIDGE FRO | 41220-N3420 | | 7409 | | 1 | No | No | 41220-E8710 |
|
14 | ASSY-TUBE BRIDGE FRO | 41220-N4200 | FED | 7701 | | 1 | Yes | Yes | 41220-N3420 |
|
15 | ASSY-TUBE BRIDGE FRO | 41230-E8710 | | | 7408 | 1 | | | |
|
15 | ASSY-TUBE BRIDGE FRO | 41230-N3420 | | 7409 | | 1 | No | No | 41230-E8710 |
|
15 | ASSY-TUBE BRIDGE FRO | 41230-N4200 | FED | 7701 | | 1 | Yes | Yes | 41230-N3420 |
|
16 | ASSY-TUBE 3 WAY TO R | 46227-E8700 | | | 7301 | 1 | | | |
|
16 | ASSY-TUBE 3 WAY TO R | 46227-E8705 | | 7302 | 7408 | 1 | Yes | Yes | 46227-E8700 |
|
16 | ASSY-TUBE 3 WAY TO R | 46227-N4501 | | 7409 | | 1 | No | No | 46227-E8705 |
|
16 | ASSY-TUBE 3 WAY TO R | 46227-N4705 | FED | 7701 | | 1 | Yes | Yes | 46227-N4700 |
|
16 | ASSY-TUBE 3 WAY TO R | 46227-N4705 | USA | | | 1 | Yes | Yes | 46227-N4700 |
|
16 | ASSY-TUBE 3 WAY TO R | 46227-N4700 | USA | 7608 | | 1 | No | No | 46227-N4501 |
|
17 | ASSY-TUBE 3 WAY TO R | 46229-E8700 | | | 7301 | 1 | | | |
|
17 | ASSY-TUBE 3 WAY TO R | 46229-E8705 | | 7302 | 7307 | 1 | Yes | Yes | 46229-E8700 |
|
17 | ASSY-TUBE 3 WAY TO R | 46229-N3400 | | 7308 | 7408 | 1 | No | No | 46229-E8705 |
|
17 | ASSY-TUBE 3 WAY TO R | 46229-N4501 | | 7409 | | 1 | No | No | 46229-N3400 |
|
17 | ASSY-TUBE 3 WAY TO R | 46229-N4200 | FED | 7701 | | 1 | Yes | Yes | 46229-N4501 |
|
18 | CONENCTOR-3 WAY BRAK | 46313-68201 | | | | 1 | | | |
|
19 | WASHER-SPRING MB | 08915-13810 | | | | 1 | | | |
|
20 | BOLT-HEX M8X1.25 | 31153-49006 | | | 7307 | 1 | | | |
|
20 | BOLT-HEX WITH SPRING | 08110-82525 | | 7308 | | 1 | No | No | 31153-49006 |
|
21 | ASSY-SWITCH BRAKE IN | 46100-U5200 | | | 7307 | 1 | | | |
|
21 | ASSY-SWITCH BRAKE IN | 46100-U2000 | | 7308 | 7408 | 1 | No | No | 46100-U5200 |
|
21 | ASSY-SWITCH BRAKE IN | 46100-U5200 | | 7409 | | 1 | | | |
|
21 | ASSY-SWITCH BRAKE IN | 46100-N4200 | | 7508 | | 1 | No | No | 46100-U5200 |
|
22 | SPACER-CONNECTOR BRA | 46257-21003 | | | | 1 | | | |
|
23 | WASHER-LOCK M6 | 08915-13610 | | | | 1 | | | |
|
24 | BOLT-HEX M6X1.0 | 08120-64810 | | | | 1 | | | |
|
25 | ASSY-TUBE BRIDGE REA | 44220-E8701 | | | 7302 | 1 | | | |
|
25 | ASSY-TUBE BRIDGE REA | 44220-E8710 | | 7303 | 7607 | 1 | Yes | Yes | 44220-E8701 |
|
25 | ASSY-TUBE BRIDGE REA | 44220-N4601 | | 7608 | | 1 | No | No | 44220-E8710 |
|
25 | ASSY-TUBE BRIDGE REA | 44220-N4700 | FED | 7701 | | 1 | Yes | Yes | 44220-N4601 |
|
26 | ASSY-TUBE BRIDGE REA | 44230-E8701 | | | 7302 | 1 | | | |
|
26 | ASSY-TUBE BRIDGE REA | 44230-E8710 | | 7303 | 7607 | 1 | Yes | Yes | 44230-E8701 |
|
26 | ASSY-TUBE BRIDGE REA | 44230-N4601 | | 7608 | | 1 | No | No | 44230-E8710 |
|
26 | ASY-TUBE BRIDE REAR | 44230-N4700 | FED | 7701 | | 1 | Yes | Yes | 44230-N4601 |
|
27 | ASSY-TUBE F/I TO NP | 46222-N3300 | | | 7301 | 1 | | | |
|
27 | ASSY-TUBE F/I TO NP | 46222-N3305 | | 7302 | 7408 | 1 | Yes | Yes | 46222-N3300 |
|
27 | ASSY-TUBE F/I TO NP | 46222-N4200 | | 7409 | 7707 | 1 | Yes | Yes | 46222-N3305 |
|
27 | ASSY-TUBE F/I TO NP | 46222-N4201 | FED | 7701 | 7707 | 1 | Yes | Yes | 46222-N4200 |
|
28 | ASSY-TUBE F/I TO NP | 46242-N3300 | | | 7301 | 1 | | | |
|
28 | ASSY-TUBE F/I TO NP | 46242-N3305 | | 7302 | 7408 | 1 | Yes | Yes | 46242-N3300 |
|
28 | ASSY-TUBE F/I TO NP | 46242-N4200 | | 7409 | | 1 | Yes | Yes | 46242-N3305 |
|
28 | ASSY-TUBE F/I TO NP | 46242-N4201 | | 7608 | | 1 | Yes | Yes | 46242-N4200 |
|
28 | ASSY-TUBE F/I TO NP | 46242-N7605 | CAL | | | 1 | Yes | Yes | 46242-N7600 |
|
28 | ASSY-TUBE F/I TO NP | 46242-N7600 | CAL | 7708 | | 1 | Yes | Yes | 44230-N4601 |
|
28 | ASSY-TUBE F/I TO NP | 46242-N4201 | FED | 7701 | 7707 | 1 | Yes | Yes | 46242-N4200 |
|
29 | RUBBER-TUBE CLAMP | 46364-E4700 | AUTOMATIC | | 7408 | 2 | | | |
|
29 | RUBBER-TUBE CLAMP | 17568-N4500 | AUTOMATIC | 7409 | | 2 | No | No | 46364-E4700 |
|
29 | RUBBER-TUBE CLAMP | 46362-E4100 | MAMUAL | | 7408 | 2 | | | |
|
29 | RUBBER-TUBE CLAMP | 17567-N4500 | MANUAL | 7409 | | 2 | No | No | 46362-E4100 |
|
30 | CLAMP-TUBE UPPER | 46353-E4100 | | | 7408 | 2 | | | |
|
30 | CLAMP-TUBE UPPER | 17552-N4500 | | 7409 | 7507 | 2 | | | |
|
30 | CLAMP-TUBE UPPER | 17555-N4500 | | 7508 | | 2 | | | |
|
31 | SCREW-HEX WITH S/WAS | 08360-41214 | | | 7408 | 2 | | | |
|
31 | SCREW-HEX WITH S/WAS | 08360-61414 | | 7409 | | 2 | | | |
|
32 | RUBBER-TUBE CLAMP | 46375-N3320 | AUTOMATIC | | 7408 | 1 | | | |
|
32 | RUBBER-TUBE CLAMP | 46375-N3321 | AUTOMATIC | 7409 | | 1 | | | |
|
32 | RUBBER-TUBE CLAMP | 46371-E4600 | MANUAL | | 7408 | 1 | | | |
|
32 | RUBBER-TUBE CLAMP | 46375-N3320 | MANUAL | 7409 | | 1 | | | |
|
33 | CLAMP-TUBE UPPER | 46356-E4600 | | | 7408 | 1 | | | |
|
33 | CLAMP-TUBE UPPER | 46356-E4200 | | 7409 | | 1 | | | |
|
33 | CLAMP-TUBE UPPER | 46356-N4500 | | 7409 | | 1 | | | |
|
34 | SCREW-HEX WITH S/WAS | 08360-41214 | | | 7408 | 1 | | | |
|
34 | SCREW-HEX WITH S/WAS | 08360-61414 | | 7409 | | 1 | | | |
|
35 | PLATE HEAT SHIELD | 46390-N4700 | FED | 7612 | | 1 | | | |
|
36 | BRACKET HEAT SHIELD | 46393-N4700 | | 7612 | | 1 | | | |
|
37 | BRACKET HEAT SHIELD | 46395-N4700 | | 7612 | | 1 | | | |
|
38 | SCREW | 08363-61626 | | 7612 | | 2 | | | |
