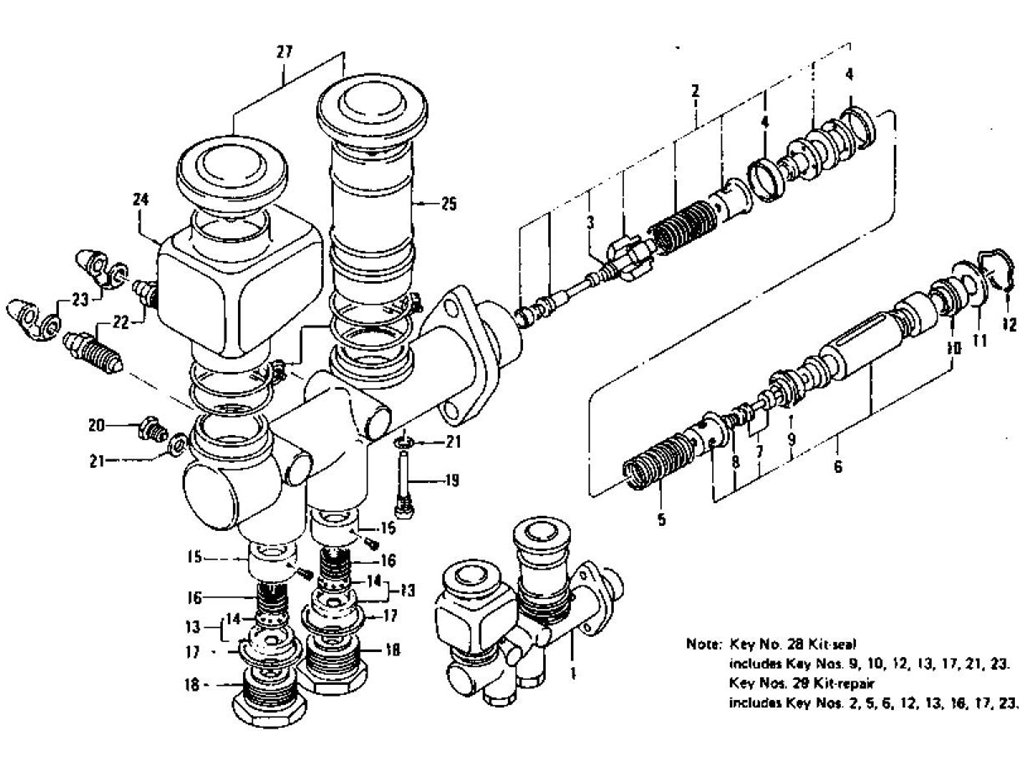

To Aug.-'71 Brake Master Cylinder (Tandem) (To Aug.-'71)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CYL | 46010-E8701 | | 7109 | | 1 | No | No | 46010-E4602 |
|
1 | ASSY-CYL | 46010-E8702 | | 7109 | | 1 | Yes | Yes | 46010-E8701 |
|
1 | ASSY-CYLINDER BRAKE | 46010-E4601 | | | | 1 | | | |
|
1 | ASSY-CYLINDER BRAKE | 46010-E4602 | | | 7108 | 1 | Yes | Yes | 46010-E4601 |
|
2 | ASSY-PISTON | 46063-E4610 | | | | 1 | | | |
|
3 | SPRING-VALVE | 46056-73010 | | | | 1 | | | |
|
4 | CUP-PISTON | 46078-10611 | | | | 2 | | | |
|
5 | SPRING-PISTON | 46075-73010 | | | | 1 | | | |
|
6 | ASSY-PISTON | 46063-E0211 | | | | 1 | | | |
|
7 | ASSY-VALVE INLET | 46073-10610 | | | | 1 | | | |
|
8 | SPRING-VALVE | 46056-73010 | | | | 1 | | | |
|
9 | CUP-PISTON (S) | 46068-10611 | | | | 1 | | | |
|
10 | CUP-PISTON (P) | 46078-10611 | | | | 1 | | | |
|
11 | STOPPER | 46072-73010 | | | | 1 | | | |
|
12 | RING-STOPPER | 46071-27260 | | | | 1 | | | |
|
13 | ASSY-VALVE | 46050-73410 | | | | 2 | | | |
|
14 | RETAINER | 46057-73410 | | | | 2 | | | |
|
15 | SEAT-VALVE | 46059-69010 | | | | 2 | | | |
|
16 | SPRING-VALVE | 46027-73010 | | | | 2 | | | |
|
16 | SPRING-VALVE | 46027-A6900 | | | | 2 | Yes | Yes | 46027-73010 |
|
16 | SPRING-VALVE | 46027-B5022 | | | | 2 | Yes | Yes | 46027-A6900 |
|
17 | PACKING | 46036-30100 | | | | 2 | | | |
|
19 | SCREW-STOPPER | 46070-69010 | | | | 1 | | | |
|
20 | SCREW-STOPPER | 46070-28511 | | | | 1 | | | |
|
21 | PACKING | 46079-10610 | | | | 2 | | | |
|
22 | SCREW-BLEEDER | 41128-21011 | | | | 2 | | | |
|
22 | SCREW-BLEEDER | 41128-B5012 | | | | 2 | Yes | Yes | 41128-21011 |
|
23 | CAP-BLEEDER | 41129-30001 | | | | 2 | | | |
|
23 | CAP-BLEEDER | 41129-A2410 | | | | 2 | Yes | Yes | 41129-30001 |
|
24 | RESERVOIR-OIL BRAKE | 46090-25510 | | | | 1 | | | |
|
25 | RESERVOIR-OIL BRAKE | 46091-E0310 | | | | 1 | | | |
|
26 | ASSY-BAND OIL RESERV | 46016-10610 | | | | 2 | | | |
|
27 | CAP-OIL RESERVOIR | 46020-10611 | | | | 2 | | | |
|
28 | CUP KIT TANDEM MASTE | 46012-79225 | | | | 1 | Yes | Yes | 46010-E6027 |
|
28 | KIT-A REPAIR FOR BRA | 46010-79227 | | | | 1 | | | |
|
28 | KIT-A REPAIR FOR BRA | 46010-E6027 | | | | 1 | Yes | Yes | 46010-79227 |
|
29 | KIT-B REPAIR FOR BRA | 46010-E4628 | | | | 1 | | | |
|
29 | PISTON KIT TANDEM MA | 46011-E4626 | | | | 1 | Yes | Yes | 46010-E4628 |
