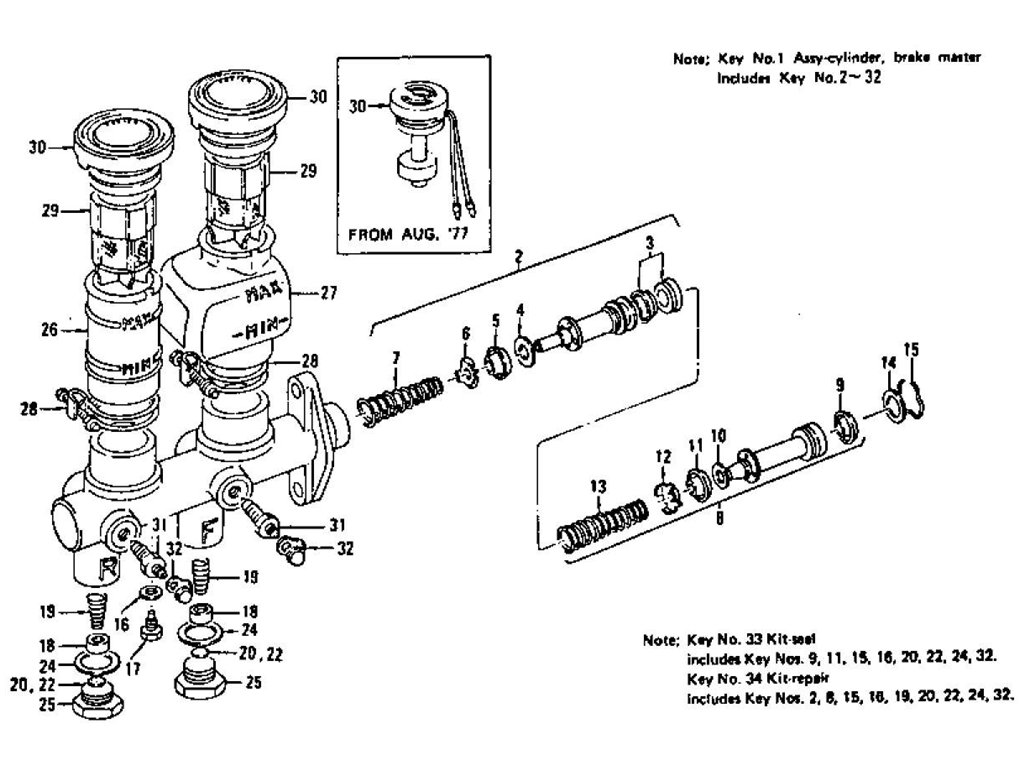

From Sep.-'71 Brake Master Cylinder (Tandem) (From Sep.-'71)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-CYLINDER | 46010-E8701 | | | 7606 | 1 | | | |
|
1 | ASSY-CYLINDER | 46010-E8702 | | 7607 | | 1 | | | |
|
1 | ASSY-CYLINDER | 46010-N4700 | | 7608 | | 1 | No | No | 46010-E8702 |
|
1 | ASSY-CYLINDER | 46010-N4301 | | 7708 | | 1 | No | No | 46010-N4700 |
|
2 | ASSY-PISTON | 46073-E8715 | | | | 1 | | | |
|
2 | ASSY-PISTON | 46073-E8714 | | | | 1 | | | |
|
2 | ASSY-PISTON | 46073-F2010 | | 7608 | | 1 | No | No | 46073-E8715 |
|
2 | ASSY-PISTON | 46073-N4310 | | 7708 | | 1 | No | No | 46073-F2010 |
|
3 | CUP-PISTON | 46064-E7411 | | | | 2 | | | |
|
4 | SPACER | 46066-E7411 | | | | 1 | | | |
|
5 | CUP-PISTON | 46064-E7411 | | | | 1 | Yes | Yes | 46068-E7411 |
|
5 | CUP-PISTON | 46068-E7411 | | | | 1 | | | |
|
6 | SEAT-SPRING | 46062-E7411 | | | | 1 | | | |
|
7 | SPRING-RETURN | 46065-E7411 | | | | 1 | Yes | Yes | 46075-E7411 |
|
7 | SPRING-RETURN | 46075-E7411 | | | | 1 | | | |
|
8 | ASSY-PISTON | 46063-E8713 | | | | 1 | | | |
|
8 | ASSY-PISTON | 46063-E8714 | | | | 1 | Yes | Yes | 46063-E8713 |
|
8 | ASSY-PISTON | 46063-F2010 | | 7608 | | 1 | No | No | 46063-E8714 |
|
9 | CUP-PISTON | 46064-E7411 | | | | 1 | | | |
|
10 | SPACER | 46066-E7411 | | | | 1 | | | |
|
11 | CUP-PISTON | 46064-E7411 | | | | 1 | Yes | Yes | 46068-E7411 |
|
11 | CUP-PISTON | 46068-E7411 | | | | 1 | | | |
|
12 | SEAT-SPRING | 46062-E7411 | | | | 1 | | | |
|
12 | SEAT-SPRING | 46062-F2010 | | 7708 | | 1 | Yes | Yes | 46062-E7411 |
|
13 | SPRING-RETURN | 46065-E7411 | | | | 1 | | | |
|
13 | SPRING-RETURN | 46065-F2010 | | 7608 | | 1 | No | No | 46065-E7411 |
|
15 | RING-PISTON STOPPER | 46071-27260 | | | | 1 | | | |
|
16 | GASKET-PISTON STOPPE | 46079-R1200 | | | | 1 | | | |
|
17 | STOPPER-SECONDARY PI | 46032-R1200 | | | | 1 | | | |
|
17 | STOPPER-SECONDARY PI | 46032-B5012 | | 7608 | | 1 | No | No | 46032-R1200 |
|
18 | GUIDE-VALVE | 46059-69010 | | | | 2 | | | |
|
18 | GUIDE-VALVE | 46059-B5022 | | 7608 | | 2 | No | No | 46059-69010 |
|
19 | SPRING-VALVE | 46027-73010 | | | | 2 | | | |
|
19 | SPRING-VALVE | 46027-A6900 | | | | 2 | Yes | Yes | 46027-73010 |
|
19 | SPRING-VALVE | 46027-B5022 | | | | 2 | Yes | Yes | 46027-A6900 |
|
20 | ASSY-VALVE | 46050-73010 | | | | 1 | | | |
|
20 | ASSY-VALVE | 46050-B5022 | | 7608 | | 1 | No | No | 46050-73010 |
|
21 | RETAINER-VALVE | 46057-10610 | | | | 1 | | | |
|
22 | ASSY-VALVE | 46050-73410 | | | | 1 | | | |
|
22 | ASSY-VALVE | 46050-F2010 | | 7508 | | 1 | No | No | 46050-73410 |
|
23 | RETAINER-VALVE | 46057-73410 | | | | 1 | | | |
|
23 | RETAINER-VALVE | 46057-F2010 | | 7608 | | 1 | No | No | 46057-73410 |
|
24 | PACKING-VALVE | 46036-30100 | | | | 2 | | | |
|
25 | CAP-VALVE | 46038-B5012 | | 7608 | | 2 | No | No | 28276-0502P |
|
26 | RESERVOIR-OIL | 46090-U0512 | | | | 1 | | | |
|
27 | RESERVOIR-OIL | 46091-F2010 | | | | 1 | Yes | Yes | 46090-F2010 |
|
27 | RESERVOIR-OIL | 46091-U0512 | | | | 1 | | | |
|
27 | RESERVOIR-OIL | 46090-F2010 | | 7608 | | 1 | No | No | 46091-U0512 |
|
28 | BAND-OIL RESERVOIR | 46016-10610 | | | 7606 | 2 | | | |
|
28 | BAND-OIL RESERVOIR | 46016-B5022 | | 7607 | | 2 | | | |
|
29 | FILTER-OIL | 46093-N0410 | | | | 2 | | | |
|
30 | ASSY-CAP | 46020-U0512 | | | 7606 | 2 | | | |
|
30 | ASSY-CAP | 46020-K2411 | | 7607 | 7707 | 2 | | | |
|
30 | ASSY-CAP | 46020-U6711 | | 7708 | | 2 | No | No | 46020-K2411 |
|
31 | SCREW-BLEEDER | 41128-B5012 | | | | 2 | Yes | Yes | 41128-U5012 |
|
31 | SCREW-BLEEDER | 41128-U0512 | | | | 2 | | | |
|
32 | CAP-BLEEDER SCREW | 41129-A2410 | | | | 2 | | | |
|
33 | CUP KIT TANDEM MASTE | 46012-Y0125 | | | | 1 | Yes | Yes | 46010-P0125 |
|
33 | CUP KIT TANDEM MASTE | 46012-N4325 | | 7608 | | 1 | No | No | 46012-Y0125 |
|
33 | KIT-REPAIR | 46010-E8725 | | | | 1 | | | |
|
33 | KIT-REPAIR | 46010-P0125 | | | | 1 | Yes | Yes | 46010-E8725 |
|
34 | PISTON KIT TANDEM MA | 46011-Y0126 | | | | 1 | | | |
|
34 | PISTON KIT TANDEM MA | 46011-N4326 | | 7608 | | 1 | No | No | 46011-Y0126 |
