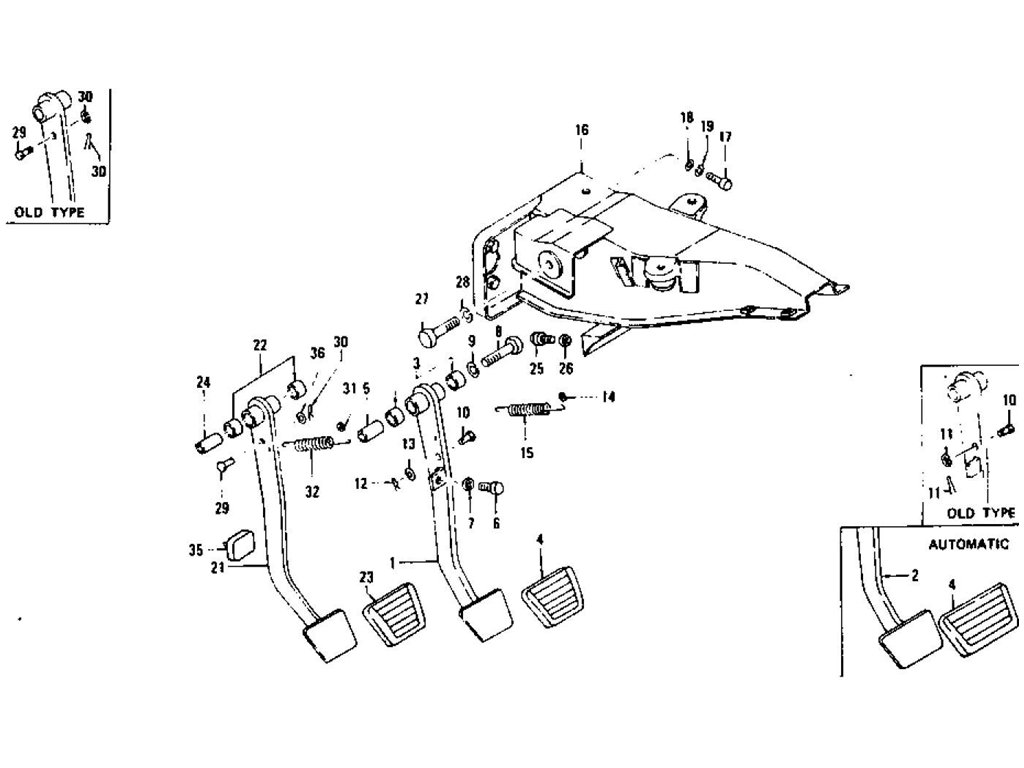

Brake & Clutch Pedal
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PEDAL BRAKE | 46520-E4600 | MANUAL | 7108 | 1 | ||||
| 1 | ASSY-PEDAL BRAKE | 46520-E8800 | MANUAL | 7109 | 7206 | 1 | No | No | 46520-E4600 |
| 1 | ASSY-PEDAL BRAKE | 46520-N3300 | MANUAL | 7207 | 7607 | 1 | No | No | 46520-E8800 |
| 1 | ASSY-PEDAL BRAKE | 46520-N7000 | MANUAL | 7608 | 1 | No | No | 46520-N3300 | |
| 2 | ASSY-PEDAL BRAKE | 46520-E4700 | AUTOMATIC | 7108 | 1 | ||||
| 2 | ASSY-PEDAL BRAKE | 46520-E8820 | AUTOMATIC | 7109 | 7206 | 1 | No | No | 46520-E4700 |
| 2 | ASSY-PEDAL BRAKE | 46520-N3320 | AUTOMATIC | 7207 | 7607 | 1 | No | No | 46520-E8820 |
| 2 | ASSY-PEDAL BRAKE | 46520-N4720 | AUTOMATIC | 7608 | 1 | No | No | 46520-N3320 | |
| 3 | BUSH-PEDAL BRAKE | 46525-73000 | 2 | ||||||
| 4 | COVER-PEDAL PAD BRAK | 46531-78500 | 2 SEATER | 7308 | 1 | No | No | 46531-10601 | |
| 4 | COVER-PEDAL PAD BRAK | 46531-11700 | AUTOMATIC | 1 | |||||
| 4 | COVER-PEDAL PAD BRAK | 46531-10601 | MANUEAL | 7307 | 1 | ||||
| 5 | SLEEVE-PEDAL SHAFT | 46582-21000 | 1 | ||||||
| 6 | ASSY-STOPPER PEDAL | 46518-21000 | 1 | ||||||
| 7 | NUT-LOCK | 08911-30810 | 1 | ||||||
| 8 | PIN-FULCRUM LH THREA | 46561-21000 | 1 | ||||||
| 9 | WASHER-SPRING | 08916-14210 | 1 | ||||||
| 10 | PIN-CLEVIS | 46123-A1100 | 7003 | 1 | |||||
| 10 | PIN-CLEVIS | 46123-E4600 | 7004 | 7108 | 1 | No | No | 46123-A1100 | |
| 10 | PIN-CLEVIS | 46123-E8200 | 7109 | 7307 | 1 | No | No | 46123-E4600 | |
| 10 | PIN-CLEVIS | 46123-N3400 | 2 SEATER | 7308 | 1 | No | No | 46123-E8200 | |
| 11 | PIN-COTTER | 00921-11810 | 7003 | 1 | |||||
| 11 | SPRING-RETAINER | 18409-73500 | 7004 | 1 | No | No | 00921-11810 | ||
| 12 | PIN-SNAP | 01532-00031 | 2 SEATER | 7308 | 1 | ||||
| 13 | WASHER-PLAIN | 18019-15800 | 2 SEATER | 7308 | 1 | ||||
| 14 | SEAT-RETURN SPRING | 46488-21000 | 1 | ||||||
| 15 | SPRING-RETURN BRAKE | 46587-E4100 | 7512 | 1 | |||||
| 15 | SPRING-RETURN BRAKE | 46587-N4401 | 7501 | 1 | Yes | Yes | 46587-E4100 | ||
| 16 | ASSY-BRACKET PEDAL S | 48318-E4601 | 7108 | 1 | |||||
| 16 | ASSY-BRACKET PEDAL S | 48318-N3300 | 7207 | 7307 | 1 | No | No | 48318-E8800 | |
| 16 | ASSY-BRACKET PEDAL S | 48318-N4700 | 7608 | 1 | Yes | Yes | 48318-N3600 | ||
| 16 | ASSY-BRACKET PEDAL S | 48318-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 48318-N3300 |
| 16 | ASSY-BRACKET PEDAL S | 48318-E8800 | AUTOMATIC | 7109 | 7206 | 1 | Yes | Yes | 48318-E4601 |
| 17 | BOLT-HEX M8 | 08110-81610 | 7206 | 5 | |||||
| 17 | BOLT-HEX M8 | 08110-82525 | 7207 | 5 | No | No | 08110-81610 | ||
| 18 | WASHER-PLAIN | 08915-43810 | 7206 | 5 | |||||
| 19 | WASHER-SPRING | 08915-13810 | 7206 | 5 | |||||
| 20 | PROTECTOR-FLANGE | 68990-76002 | 1 | ||||||
| 21 | ASSY-PEDAL CLUTCH | 46540-N3600 | 2 SEATER 2+2 SEAT ER MANUAL | 7308 | 1 | No | No | 46540-N3300 | |
| 21 | ASSY-PEDAL CLUTCH | 46540-E4601 | MANUAL | 7206 | 1 | ||||
| 21 | ASSY-PEDAL CLUTCH | 46540-N3300 | MANUAL | 7207 | 7307 | 1 | No | No | 46540-E4601 |
| 22 | BUSH-PEDAL CLUTCH | 46525-P0100 | 2 SEATER MANUAL | 2 | No | No | 46525-73000 | ||
| 22 | BUSH-PEDAL CLUTCH | 46525-73000 | MANUAL | 7307 | 2 | ||||
| 23 | COVER-PEDAL PAD CLUT | 46531-78500 | 2 SEATER MANUAL | 7308 | 1 | No | No | 46531-10601 | |
| 23 | COVER-PEDAL PAD CLUT | 46531-10601 | MANUAL | 7307 | 1 | ||||
| 24 | SLEEV-PEDAL SHAFT | 46582-21000 | MANUAL | 1 | |||||
| 25 | ASSY-STOPPER PEDAL | 46518-21000 | MANUAL | 1 | |||||
| 26 | NUT-LOCK | 08911-30810 | MANUAL | 1 | |||||
| 27 | PIN-FULCRUM RH THREA | 46561-21000 | MANUAL | 1 | |||||
| 28 | WASHER-SPRING M12 | 08916-14210 | MANUAL | 1 | |||||
| 29 | PIN-CLEVIS | 46123-N3400 | 2 SEATER MANUAL | 7308 | 1 | No | No | 46123-E8210 | |
| 29 | PIN-CLEVIS (L 16) | 46123-08700 | MANUAL | 7004 | 1 | ||||
| 29 | PIN-CLEVIS (L 18) | 46123-34500 | MANUAL | 7005 | 7108 | 1 | 46123-08700 | ||
| 29 | PIN-CLEVIS (L 18) | 46123-E8210 | MANUAL | 7109 | 7307 | 1 | No | No | 46123-34500 |
| 30 | PIN-COTTER | 00921-11810 | MANUAL | 7004 | 1 | ||||
| 30 | PIN-SNAP | 01532-00031 | 2 SEATER MANUAL | 1 | |||||
| 30 | SPRING-RETAINER | 46124-35100 | MANUAL | 7005 | 7307 | 1 | No | No | 00921-11810 |
| 31 | SEAT-RETURN SPRING | 46488-21000 | 1 | ||||||
| 32 | SPRING-RETURN CLUTCH | 46587-E4100 | 7512 | 1 | |||||
| 32 | SPRING-RETURN CLUTCH | 46587-N4401 | 7601 | 1 | Yes | Yes | 46587-E4100 | ||
| 33 | NUT M8X1.25 | 08911-10810 | 2 | ||||||
| 34 | WASHER-SPRING | 08915-13810 | MANUAL | 2 | |||||
| 35 | BUMPER-CLUTCH PEDAL | 46570-E4102 | MANUAL | 1 | |||||
| 36 | WASHER-PLAIN | 18019-15800 | MANUAL | 1 |
