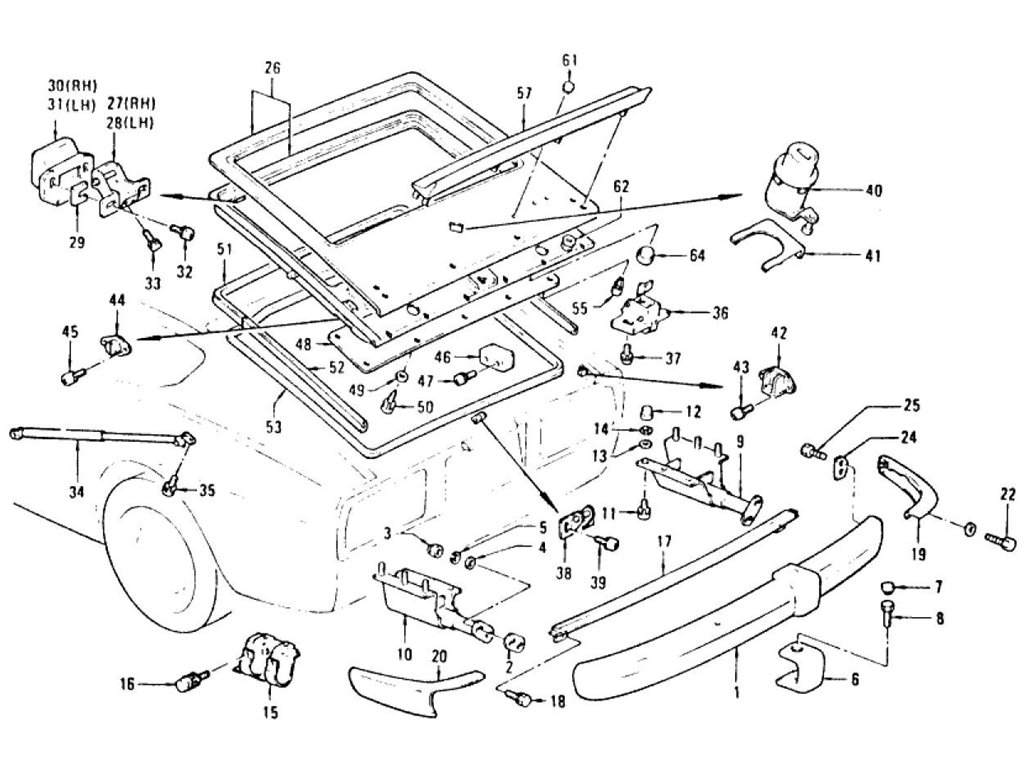

Tail Gate Panel, Trim, Lock & Rear Bumper (2 Seater) (From Sep.-'74 To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-BUMPER | 85301-N4200 | 7409 | 7507 | 1 | ||||
| 1 | ASSY-BUMPER | 85301-N4201 | 7508 | 1 | Yes | Yes | 85301-N4200 | ||
| 2 | SHIM-REAR BUMPER | 85388-N4200 | 7409 | 2 | |||||
| 3 | NUT-HEX | 08912-84010 | 7409 | 4 | |||||
| 4 | WASHER-PLAIN | 08915-54010 | 7409 | 4 | |||||
| 5 | WASHER-LOCK | 08915-24010 | 7409 | 4 | |||||
| 6 | ASSY-OVERRIDER REAR | 85340-N4200 | 7409 | 2 | |||||
| 7 | PLUG-OVERRIDER | 85345-N4200 | 7409 | 2 | |||||
| 8 | BOLT-HEX | 08126-82037 | 7409 | 4 | |||||
| 9 | ASSY-ABSORBER REAR B | 85210-N4200 | 7409 | 1 | |||||
| 10 | ASSY-ABSORBER REAR B | 85211-N4200 | 7409 | 1 | |||||
| 11 | BOLT-HEX | 01121-00053 | 7409 | 6 | |||||
| 12 | NUT-CAP | 13274-78200 | 7409 | 6 | |||||
| 13 | WASHER-PLAIN | 08915-53810 | 7409 | 6 | |||||
| 14 | WASHER-SPRING | 08915-23810 | 7409 | 6 | |||||
| 15 | HEAT SHIELD-REAR BUM | 85090-N3600 | 7409 | 1 | |||||
| 16 | SCREW | 08160-61610 | 7409 | 3 | |||||
| 17 | ASSY-SIGHT SHIELD RE | 85360-N4200 | 7409 | 1 | |||||
| 18 | BOLT-HEX | 08116-83047 | 7409 | 3 | |||||
| 19 | ASSY-BUMPER REAR SID | 85350-N4200 | 7409 | 1 | |||||
| 20 | ASSY-BUMPER REAR SID | 85351-N4200 | 7409 | 1 | |||||
| 21 | PLUG-REAR BUMPER SID | 85352-N4200 | 7409 | 2 | |||||
| 22 | BOLT-HEX | 08116-84037 | 7409 | 2 | |||||
| 23 | BOLT-HEX | 08116-83047 | 7409 | 2 | |||||
| 24 | SHIELD-DUST REAR BUM | 85396-N4200 | 7409 | 2 | |||||
| 25 | BOLT-HEX | 08363-61648 | 7409 | 4 | |||||
| 26 | ASSY-PANEL TAIL GATE | 90101-N3400 | 1 | ||||||
| 26 | ASSY-PANEL TAIL GATE | 90101-N4500 | 1 | Yes | Yes | 90101-N4400 | |||
| 26 | ASSY-PANEL TAIL GATE | 90101-N4400 | 7409 | 1 | Yes | Yes | 90101-N3400 | ||
| 27 | ASSY-TAIL GATE HINGE | 90400-E4100 | 1 | ||||||
| 28 | ASSY-TAIL GATE HINGE | 90401-E4100 | 1 | ||||||
| 29 | SHIM-ADJUSTING TAIL | 90407-E4100 | 4 | ||||||
| 30 | SEAL-COVER HINGE TAI | 90410-N3000 | 1 | ||||||
| 31 | SEAT-COVER HINGE TAI | 90411-N3000 | 1 | ||||||
| 32 | SCREW-MACHINE M8 | 08363-83026 | 4 | ||||||
| 33 | SCREW-MACHINE M8 | 08320-82019 | 4 | ||||||
| 34 | SET-STAY | 90420-N3400 | 1 | ||||||
| 34 | SET-STAY-TAIL GATE L | 90421-N3400 | 1 | ||||||
| 35 | SCREW-MACHINE | 08363-62026 | 4 | ||||||
| 36 | ASSY-TAIL GATE LOCK | 90502-E4101 | 1 | ||||||
| 37 | SCREW-MACHINE M6 | 08363-61626 | 2 | ||||||
| 38 | ASSY-STRIKER TAIL GA | 90805-E4100 | 1 | ||||||
| 39 | SCREW-MACHINE M6 | 08363-61626 | 2 | ||||||
| 40 | CYLINDER-LOCK TAIL G | 90560-E8201 | 7508 | 1 | |||||
| 40 | CYLINDER-LOCK TAIL G | 90560-N4400 | 7509 | 1 | Yes | Yes | 90560-E8201 | ||
| 41 | CLIP-CYLINDER | 96809-19700 | 1 | ||||||
| 42 | ASSY-DOWN STOPPER TA | 90522-E4100 | 2 | ||||||
| 43 | SCREW-MACHINE | 08363-61626 | 4 | ||||||
| 44 | DOVE TAIL-TAIL GATE | 90524-E4100 | 2 | ||||||
| 45 | SCREW-MACHINE | 08313-51226 | 4 | ||||||
| 46 | BUMPER-RUBBER TAIL G | 90526-E4100 | 2 | ||||||
| 47 | SCREW-MACHINE | 08310-51218 | 4 | ||||||
| 48 | ASSY-TRIM TAIL DARK | 90902-N3604 | 1 | ||||||
| 48 | ASSY-TRIM TAIL GATE | 90902-N3300 | 1 | ||||||
| 48 | ASSY-TRIM TAIL GATE | 90902-N3304 | 1 | ||||||
| 49 | WASHER-FINISH | 08915-80442 | 10 | ||||||
| 50 | SCREW-TAPPING | 08530-41642 | 10 | ||||||
| 51 | WEATHERSTRIP-TAIL GA | 76910-N3000 | 1 | ||||||
| 52 | WEATHERSTRIP-TAIL GA | 76911-N3000 | 2 | ||||||
| 53 | WEATHERSTRIP-TAIL GA | 76912-E4100 | 7505 | 1 | |||||
| 53 | WEATHERSTRIP-TAIL GA | 76912-N4500 | 7506 | 1 | Yes | Yes | 76912-E4100 | ||
| 54 | RUBBER-SEALING TAIL | 90965-E4100 | 1 | ||||||
| 55 | CLIP-TRIM | 66919-H1001 | 8 | ||||||
| 56 | WASHER-NYLON | 17499-78500 | 4 | ||||||
| 57 | ASSY-SPOILAR AIR | 98100-N3525 | OP | 1 | |||||
| 57 | ASSY-SPOILAR AIR | 98100-N3528 | OP. AUTOMATIC | 1 | Yes | Yes | 98100-N3526 | ||
| 57 | ASSY-SPOILAR AIR | 98100-N3105 | OP.MANUAL | 1 | Yes | Yes | 98100-N3527 | ||
| 57 | ASSY-SPOILAR AIR | 98100-N3527 | OP.MANUAL | 1 | Yes | Yes | 98100-N3525 | ||
| 58 | SEALING-AIR SPOILAR | 98115-E7200 | OP | 2 | |||||
| 59 | CUSHION-AIR SPOILAR | 98116-E7200 | OP | 2 | |||||
| 60 | NUT-FLANGE | 01225-00021 | OP | 6 | |||||
| 60 | WASHER | 08915-53610 | OP | 8 | |||||
| 61 | PLUG | 77700-89922 | OP | 6 | |||||
| 62 | NUT-FLANG M6 (AIR SP | 01225-00021 | OP | 6 | |||||
| 63 | PLUG-NYLON (EMBLEM H | 77700-89922 | OP | 5 | |||||
| 64 | GROMMET-HEATER | 27035-21000 | 2 |
