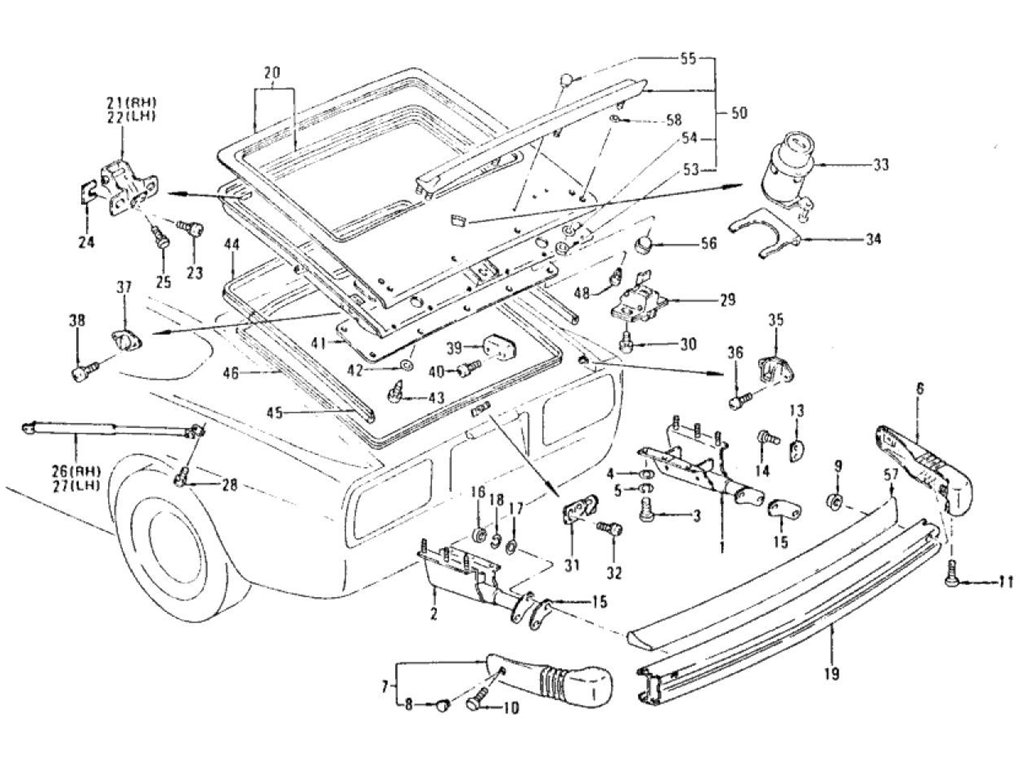

Tail Gate Panel, Trim Lock & Rear Bumper (2 Seater) (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP-SHOCKAB REAR BU | 85210-N4700 | 7608 | 1 | |||||
| 2 | COMP-SHOCKAB REAR BU | 85211-N4700 | 7608 | 1 | |||||
| 3 | BOLT-HEX | 08114-03010 | 7608 | 6 | |||||
| 4 | WASHER-PLAIN | 08915-54010 | 7608 | 6 | |||||
| 5 | WASHER-SPRING | 08915-24010 | 7608 | 6 | |||||
| 6 | ASSY-BUMPER REAR SID | 85350-N4700 | 7608 | 1 | |||||
| 7 | ASSY-BUMPER REAR SID | 85351-N4700 | 7608 | 1 | |||||
| 8 | PLUG-BUMPER SIDE REA | 85365-N4700 | 7608 | 2 | |||||
| 9 | NUT-FLANGE | 01221-00043 | 7608 | 2 | |||||
| 10 | BOLT-HEX | 08120-81633 | 7608 | 2 | |||||
| 11 | BOLT-HEX | 08116-82037 | 7608 | 2 | |||||
| 12 | SCREW-TAPPING | 08510-61623 | 7608 | 2 | |||||
| 13 | SHIELD-DUST REAR BUM | 85396-N4200 | 7608 | 2 | |||||
| 14 | BOLT-HEX | 08363-61648 | 7608 | 4 | |||||
| 15 | SHIM-REAR BUMPER | 85388-N4700 | 7608 | 2 | |||||
| 16 | NUT-HEX | 08912-84010 | 7608 | 4 | |||||
| 17 | WASHER-SPECIAL | 54473-N3400 | 7608 | 4 | |||||
| 18 | WASHER-LOCK | 08915-24010 | 7608 | 4 | |||||
| 19 | ASSY-BUMPER REAR | 85301-N4701 | 7608 | 1 | |||||
| 20 | ASSY-PANEL TAIL GATE | 90101-N4500 | 7608 | 1 | |||||
| 21 | ASSY-HINGE TAIL GATE | 90400-N4400 | 7608 | 1 | |||||
| 22 | ASSY-HINGE TAIL GATE | 90401-N4400 | 7608 | 1 | |||||
| 23 | SCREW-MACHINE M8 | 08320-82019 | 7608 | 4 | |||||
| 24 | SHIM-ADJUSTING TAIL | 90407-E4100 | 7608 | 4 | |||||
| 25 | SCREW-MACHINE M8 | 08363-83026 | 7608 | 4 | |||||
| 26 | SET-STAY | 90420-N3400 | 7608 | 1 | |||||
| 27 | SET-STAY | 90421-N3400 | 7608 | 1 | |||||
| 28 | SCREW-MACHINE | 08363-62026 | 7608 | 4 | |||||
| 29 | ASSY-TAIL GATE LOCK | 90502-E4101 | 7608 | 1 | |||||
| 30 | SCREW-MACHINE M6 | 08363-61626 | 7608 | 2 | |||||
| 31 | ASSY-STRIKER TAIL GA | 90805-E4100 | 7608 | 1 | |||||
| 32 | SCREW-MACHINE M6 | 08363-61626 | 7608 | 2 | |||||
| 33 | CYLINDER-LOCK TAIL G | 90560-E8201 | 7608 | 1 | |||||
| 34 | CLIP-CYLINDER | 96809-19700 | 7608 | 1 | |||||
| 35 | ASSY-DOWN STOPPER TA | 90522-E4100 | 7608 | 2 | |||||
| 36 | SCREW-MACHINE | 08363-61626 | 7608 | 4 | |||||
| 37 | DOVE-TAIL GATE | 90524-E4100 | 7608 | 2 | |||||
| 38 | SCREW-MACHINE | 08313-51226 | 7608 | 4 | |||||
| 39 | BUMPER-RUBBER TAIL G | 90526-E4100 | 7608 | 2 | |||||
| 40 | SCREW-MACHINE | 08310-51218 | 7608 | 4 | |||||
| 41 | ASSY-TRIM TAIL GATE | 90902-N3300 | 7608 | 1 | |||||
| 41 | ASSY-TRIM TAIL GATE | 90902-N3304 | 7608 | 1 | |||||
| 41 | ASSY-TRIM TAIL GATE | 90902-N3604 | 7608 | 1 | |||||
| 42 | WASHER-FINISH | 08915-80442 | 7608 | 7709 | 10 | ||||
| 43 | SCREW-TAPPING | 08530-41642 | 7608 | 10 | |||||
| 44 | WEATHERSTRIP-TAIL GA | 76910-N3000 | 7608 | 1 | |||||
| 45 | WEATHERSTRIP-TAIL GA | 76911-N3000 | 7608 | 2 | |||||
| 46 | WEATHERSTRIP-TAIL GA | 76912-N4500 | 7608 | 1 | |||||
| 47 | RUBBER-SEALING TAIL | 90965-E4100 | 7608 | 1 | |||||
| 48 | CLIP-TRIM | 66919-H1001 | 7608 | 8 | |||||
| 49 | WASHER-NYLON | 17499-78500 | 7608 | 7709 | 4 | ||||
| 49 | WASHER-NYLON | 80999-89900 | 7710 | 10 | |||||
| 50 | ASSY-SPOILAR AIR | 98100-N3528 | OP AUTOMATIC | 7608 | 1 | ||||
| 50 | ASSY-SPOILAR AIR | 98100-N3105 | OP MANUAL | 1 | Yes | Yes | 98100-N3527 | ||
| 50 | ASSY-SPOILAR AIR | 98100-N3527 | OP MANUAL | 7608 | 1 | ||||
| 51 | SEALING-AIR SPOILAR | 98115-E7200 | OP | 7608 | 2 | ||||
| 52 | CUSHION-AIR SPOILAR | 98116-E7200 | OP | 7608 | 2 | ||||
| 53 | NUT-FLANGE | 01225-00021 | OP | 7608 | 6 | ||||
| 54 | WASHER | 08915-53610 | OP | 7608 | 6 | ||||
| 55 | PLUG-NYLON (EMBLEM H | 77700-89922 | OP | 7608 | 6 | ||||
| 56 | GROMMET-HEATER | 27035-21000 | OP | 7608 | 2 | ||||
| 57 | SIGHTSHIELD REAR BUM | 85360-N4700 | 7608 | 1 | |||||
| 58 | WASHER AIR SPOILAR | 68875-10600 | OP | 6 |
