Seat & Slide

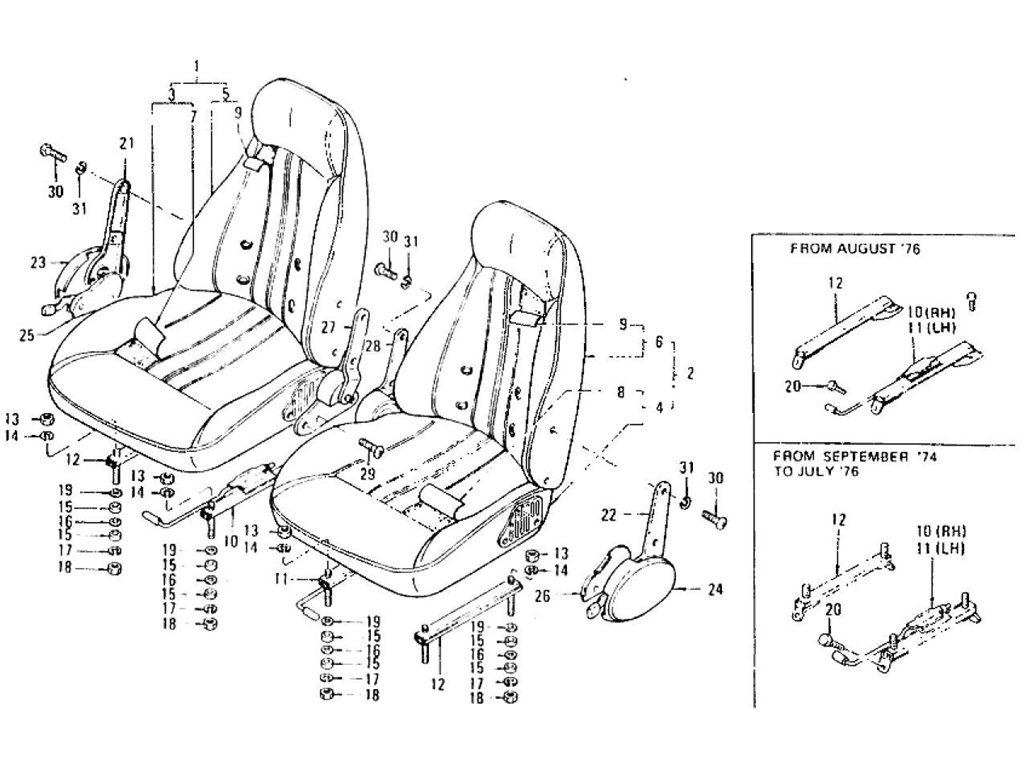

Seat & Slide (2 Seater) (From Aug.-'73)

Seat & Slide
Parts List
Key Part Name Part Number Model From To Qty Newer Former Superceded
  1 COMP SEAT RH BEIGE 86000-N3602 7403 1
  1 COMP SEAT RH BEIGE 86000-N3607 7404 7408 1 Yes Yes 86000-N3602
  1 COMP SEAT RH BEIGE 86000-N4301 7506 7607 1 Yes Yes 86000-N4212
  1 COMP SEAT RH BEIGE 86000-N4702 7608 1 No No 86000-N4301
  1 COMP SEAT RH BEIGE 86000-N4202 USA 7409 7502 1 No No 86000-N3607
  1 COMP SEAT RH BEIGE 86000-N4212 USA 7503 7505 1 No No 86000-N4202
  1 COMP SEAT RH BLACK 86000-N3600 7403 1
  1 COMP SEAT RH BLACK 86000-N3605 7404 7408 1 Yes Yes 86000-N3600
  1 COMP SEAT RH BLACK 86000-N4300 7506 7607 1 Yes Yes 86000-N4210
  1 COMP SEAT RH BLACK 86000-N4700 7608 1 No No 86000-N4300
  1 COMP SEAT RH BLACK 86000-N4200 USA 7409 7502 1 No No 86000-N3605
  1 COMP SEAT RH BLACK 86000-N4210 USA 7503 7505 1 No No 86000-N4200
  1 COMP SEAT RH BROWN 86000-N3601 7403 1
  1 COMP SEAT RH BROWN 86000-N3606 7404 7408 1 Yes Yes 86000-N3601
  1 COMP SEAT RH DARK BR 86000-N3603 7403 1
  1 COMP SEAT RH DARK BR 86000-N3608 7404 7408 1 Yes Yes 86000-N3603
  1 COMP SEAT RH DARK BR 86000-N4302 7506 7607 1 Yes Yes 86000-N4213
  1 COMP SEAT RH DARK BR 86000-N4701 7608 1 No No 86000-N4302
  1 COMP SEAT RH DARK BR 86000-N4203 USA 7409 7502 1 No No 86000-N3608
  1 COMP SEAT RH DARK BR 86000-N4213 USA 7503 7505 1 No No 86000-N4203
  2 COMP SEAT LH BEIGE 87000-N3602 7403 1
  2 COMP SEAT LH BEIGE 87000-N3607 7404 7408 1 Yes Yes 87000-N3602
  2 COMP SEAT LH BEIGE 87000-N4212 7503 7505 1 No No 87000-N4202
  2 COMP SEAT LH BEIGE 87000-N4301 7506 7607 1 Yes Yes 87000-N4212
  2 COMP SEAT LH BEIGE 87000-N4702 7608 1 No No 87000-N4301
  2 COMP SEAT LH BEIGE 87000-N4202 USA 7409 7502 1 No No 87000-N3607
  2 COMP SEAT LH BLACK 87000-N3600 7403 1
  2 COMP SEAT LH BLACK 87000-N3601 7403 1
  2 COMP SEAT LH BLACK 87000-N3605 7404 7408 1 Yes Yes 87000-N3600
  2 COMP SEAT LH BLACK 87000-N3606 7404 7408 1 Yes Yes 87000-N3601
  2 COMP SEAT LH BLACK 87000-N4210 7503 7505 1 No No 87000-N4200
  2 COMP SEAT LH BLACK 87000-N4300 7506 7607 1 Yes Yes 87000-N4210
  2 COMP SEAT LH BLACK 87000-N4700 7608 1 No No 87000-N4300
  2 COMP SEAT LH BLACK 87000-N4200 USA 7409 7502 1 No No 87000-N3605
  2 COMP SEAT LH DARK BR 87000-N3603 7403 1
  2 COMP SEAT LH DARK BR 87000-N3608 7404 7408 1 Yes Yes 87000-N3603
  2 COMP SEAT LH DARK BR 87000-N4213 7503 7505 1 No No 87000-N4203
  2 COMP SEAT LH DARK BR 87000-N4302 7506 7607 1 Yes Yes 87000-N4213
  2 COMP SEAT LH DARK BR 87000-N4701 7608 1 No No 87000-N4302
  2 COMP SEAT LH DARK BR 87000-N4203 USA 7409 7502 1 No No 87000-N3608
  3 ASSY CUSHION SEAT BL 86300-N3605 7408 1 Yes Yes 86300-N3600
  3 ASSY CUSHION SEAT RH 86300-N3607 7408 1 Yes Yes 86300-N3602
  3 ASSY CUSHION SEAT RH 86300-N3608 7408 1 Yes Yes 86300-N3603
  3 ASSY CUSHION SEAT RH 86300-N4301 7506 7607 1 Yes Yes 86300-N4502
  3 ASSY CUSHION SEAT RH 86300-N4302 7506 7607 1 Yes Yes 86300-N4503
  3 ASSY CUSHION SEAT RH 86300-N4702 7608 1 No No 86300-N4301
  3 ASSY CUSHION SEAT RH 86300-N4200 USA 7409 7502 1 Yes Yes 86300-N3605
  3 ASSY CUSHION SEAT RH 86300-N4202 USA 7409 7502 1 Yes Yes 86300-N3607
  3 ASSY CUSHION SEAT RH 86300-N4203 USA 7409 7502 1 Yes Yes 86300-N3608
  3 ASSY CUSHION SEAT RH 86300-N4502 USA 7503 7505 1 No No 86300-N4202
  3 ASSY CUSHION SEAT RH 86300-N4503 USA 7503 7505 1 No No 86300-N4203
  3 ASSY CUSION SEAT RH 86300-N3606 7408 1 Yes Yes 86300-N3601
  3 ASSY CUSION SEAT RH 86300-N4701 7608 1 No No 86300-N4302
  3 ASSY CUSIONN SEAT RH 86300-N4300 7506 7607 1 Yes Yes 86300-N4500
  3 ASSY CUSIONN SEAT RH 86300-N4700 7608 1 No No 86300-N4300
  3 ASSY CUSIONN SEAT RH 86300-N4500 USA 7503 7505 1 No No 86300-N4200
  4 ASSY CUSHION SEAT LH 86300-N3605 7408 1
  4 ASSY CUSHION SEAT LH 86300-N3606 7408 1
  4 ASSY CUSHION SEAT LH 86300-N3607 7408 1
  4 ASSY CUSHION SEAT LH 87300-N4210 7503 7505 1 No No 87300-N4200
  4 ASSY CUSHION SEAT LH 87300-N4212 7503 7505 1 No No 87300-N4202
  4 ASSY CUSHION SEAT LH 87300-N4300 7506 7607 1 Yes Yes 87300-N4210
  4 ASSY CUSHION SEAT LH 87300-N4301 7506 7607 1 Yes Yes 87300-N4212
  4 ASSY CUSHION SEAT LH 87300-N4302 7506 7607 1 Yes Yes 87300-N4213
  4 ASSY CUSHION SEAT LH 87300-N4700 7608 1 No No 87300-N4300
  4 ASSY CUSHION SEAT LH 87300-N4701 7608 1 No No 87300-N4302
  4 ASSY CUSHION SEAT LH 87300-N4702 7608 1 No No 87300-N4301
  4 ASSY CUSHION SEAT LH 87300-N4200 USA 7409 7502 1 No No 86300-N3605
  4 ASSY CUSHION SEAT LH 87300-N4202 USA 7409 7502 1 No No 86300-N3607
  4 ASSY CUSHION SEAT LH 87300-N4203 USA 7409 7502 1 No No 86300-N3608
  4 ASSY CUSHION SEAT LH 87300-N4213 USA 7503 7505 1 No No 87300-N4203
  5 ASSY BACK SEAT RH BE 86600-N3402 7408 1
  5 ASSY BACK SEAT RH BE 86600-N4202 7409 7505 1 Yes Yes 86600-N3402
  5 ASSY BACK SEAT RH BE 86600-N4301 7506 7607 1 Yes Yes 86600-N4202
  5 ASSY BACK SEAT RH BE 86600-N4702 7608 1 No No 86600-N4301
  5 ASSY BACK SEAT RH BL 86600-N3400 7408 1
  5 ASSY BACK SEAT RH BL 86600-N4200 7409 7505 1 Yes Yes 86600-N3400
  5 ASSY BACK SEAT RH BL 86600-N4300 7506 7607 1 Yes Yes 86600-N4200
  5 ASSY BACK SEAT RH BL 86600-N4700 7608 1 No No 86600-N4300
  5 ASSY BACK SEAT RH BR 86600-N3401 7408 1
  5 ASSY BACK SEAT RH CL 86600-N4205 OP 7409 7505 1
  5 ASSY BACK SEAT RH CL 86600-N4305 OP 7506 7607 1 Yes Yes 86600-N4205
  5 ASSY BACK SEAT RH CL 86600-N3505 OP 7608 1 No No 86600-N4305
  5 ASSY BACK SEAT RH CL 86600-N3506 OP 7608 1 No No 86600-N4306
  5 ASSY BACK SEAT RH DA 86600-N3403 7408 1
  5 ASSY BACK SEAT RH DA 86600-N4203 7409 7505 1 Yes Yes 86600-N3403
  5 ASSY BACK SEAT RH DA 86600-N4302 7506 7607 1 Yes Yes 86600-N4203
  5 ASSY BACK SEAT RH DA 86600-N4701 7608 1 No No 86600-N4302
  6 ASSY BACK SEAT LH BE 87600-N3402 7408 1
  6 ASSY BACK SEAT LH BE 87600-N4202 7409 7505 1 Yes Yes 87600-N3402
  6 ASSY BACK SEAT LH BL 87600-N3400 7408 1
  6 ASSY BACK SEAT LH BL 87600-N4200 7409 7505 1 Yes Yes 87600-N3400
  6 ASSY BACK SEAT LH BL 87600-N4300 7506 7607 1 Yes Yes 87600-N4200
  6 ASSY BACK SEAT LH BL 87600-N4700 7608 1 No No 87600-N4300
  6 ASSY BACK SEAT LH BR 87600-N3401 7408 1
  6 ASSY BACK SEAT LH CL 87600-N4205 OP 7409 7505 1
  6 ASSY BACK SEAT LH CL 87600-N4305 OP 7506 7607 1 Yes Yes 87600-N4205
  6 ASSY BACK SEAT LH CL 87600-N3505 OP 7608 1 No No 87600-N4305
  6 ASSY BACK SEAT LH CL 87600-N3506 OP 7608 1 No No 87600-N4306
  6 ASSY BACK SEAT LH DA 87600-N3403 7408 1
  6 ASSY BACK SEAT LH DA 87600-N4203 7409 7505 1 Yes Yes 87600-N3403
  6 ASSY BACK SEAT LH DA 87600-N4302 7506 7607 1 Yes Yes 87600-N4203
  6 ASSY BACK SEAT LH DA 87600-N4701 7608 1 No No 87600-N4302
  6 ASSY BLACK SEAT LH B 87600-N4301 7506 7607 1 Yes Yes 87600-N4202
  6 ASSY BLACK SEAT LH B 87600-N4702 7608 1 No No 87600-N4301
  7 TIM CUSHION SEAT RH 86320-N3400 7505 1
  7 TIRM CUSHION SEAT RH 86320-N4305 OP 7506 7607 1 Yes Yes 86320-N4215
  7 TRIM CUSHION SEAT RH 86320-N3401 7408 1
  7 TRIM CUSHION SEAT RH 86320-N3402 7505 1
  7 TRIM CUSHION SEAT RH 86320-N3403 7505 1
  7 TRIM CUSHION SEAT RH 86320-N4301 7506 7607 1 Yes Yes 86320-N3402
  7 TRIM CUSHION SEAT RH 86320-N4302 7506 7607 1 Yes Yes 86320-N3403
  7 TRIM CUSHION SEAT RH 86320-N4701 7608 1 No No 86320-N4302
  7 TRIM CUSHION SEAT RH 86320-N4702 7608 1 No No 86320-N4301
  7 TRIM CUSHION SEAT RH 86320-N4215 OP 7409 7505 1
  7 TRIM CUSHION SEAT RH 86320-N3505 OP 7608 1 No No 86320-N4305
  7 TRIM CUSION SEAT RH 86320-N4300 7506 7607 1 Yes Yes 86320-N3400
  7 TRIM CUSION SEAT RH 86320-N4700 7608 1 No No 86320-N4300
  7 TRIM-CUSHION SEAT RH 86320-N3506 OP 7608 1
  8 TRIM CUSHION SEAT LH 86320-N3400 7408 1
  8 TRIM CUSHION SEAT LH 86320-N3401 7408 1
  8 TRIM CUSHION SEAT LH 86320-N3402 7408 1
  8 TRIM CUSHION SEAT LH 86320-N3403 7408 1
  8 TRIM CUSHION SEAT LH 87320-N4210 7409 7505 1 No No 86320-N3400
  8 TRIM CUSHION SEAT LH 87320-N4212 7409 7505 1 No No 86320-N3402
  8 TRIM CUSHION SEAT LH 87320-N4213 7409 7505 1 No No 86320-N3403
  8 TRIM CUSHION SEAT LH 87320-N4300 7506 7607 1 Yes Yes 87320-N4210
  8 TRIM CUSHION SEAT LH 87320-N4301 7506 7607 1 Yes Yes 87320-N4212
  8 TRIM CUSHION SEAT LH 87320-N4302 7506 7607 1 Yes Yes 87320-N4213
  8 TRIM CUSHION SEAT LH 87320-N4700 7608 1 No No 87320-N4300
  8 TRIM CUSHION SEAT LH 87320-N4701 7608 1 No No 87320-N4302
  8 TRIM CUSHION SEAT LH 87320-N4702 7608 1 No No 87320-N4301
  8 TRIM CUSHION SEAT LH 87320-N4215 OP 7409 7505 1
  8 TRIM CUSHION SEAT LH 87320-N4305 OP 7506 7607 1 Yes Yes 87320-N4215
  8 TRIM CUSHION SEAT LH 87320-N3505 OP 7608 1 No No 87320-N4305
  8 TRIM CUSHION SEAT LH 87320-N3506 OP 7608 1
  9 TRIM BACK SEAT BALCK 86620-N4300 7506 7607 2 Yes Yes 86620-N3400
  9 TRIM BACK SEAT BEIGE 86620-N3402 7505 2
  9 TRIM BACK SEAT BEIGE 86620-N4301 7506 7607 2 Yes Yes 86620-N3402
  9 TRIM BACK SEAT BEIGE 86620-N4702 7608 2 No No 86620-N4301
  9 TRIM BACK SEAT BLACK 86620-N3400 7505 2
  9 TRIM BACK SEAT BLACK 86620-N4700 7608 2 No No 86620-N4300
  9 TRIM BACK SEAT BROWN 86620-N3401 7408 2
  9 TRIM BACK SEAT CLOTH 86620-N4215 OP 7409 7505 2
  9 TRIM BACK SEAT CLOTH 86620-N4305 OP 7506 7607 2 Yes Yes 86620-N4215
  9 TRIM BACK SEAT CLOTH 86620-N3505 OP 7608 2 No No 86620-N4305
  9 TRIM BACK SEAT CLOTH 86620-N3506 OP 7608 2
  9 TRIM BACK SEAT DARK 86620-N3403 7505 2
  9 TRIM BACK SEAT DARK 86620-N4302 7506 7607 2 Yes Yes 86620-N3403
  9 TRIM BACK SEAT DARK 86620-N4701 7608 2 No No 86620-N4302
  10 ASSY SLIDE WITH LEVE 86500-E4100 7311 1
  10 ASSY SLIDE WITH LEVE 86500-N3400 7312 7408 1 Yes Yes 86500-E4100
  10 ASSY SLIDE WITH LEVE 86500-N4500 7409 7607 1 No No 86500-N3400
  10 ASSY SLIDE WITH LEVE 86500-N4700 7608 1 No No 86500-N4500
  11 ASSY SLIDE WITH LEVE 87500-E4100 7311 1
  11 ASSY SLIDE WITH LEVE 87500-N3400 7312 7408 1 Yes Yes 87500-E4100
  11 ASSY SLIDE WITH LEVE 87500-N4500 7409 7607 1 No No 87500-N3400
  11 ASSY SLIDE WITH LEVE 87500-N4700 7608 1 No No 87500-N4500
  12 ASSY SLIDE LESS LEVE 86550-N3601 7311 2
  12 ASSY SLIDE LESS LEVE 86550-N3602 7312 7408 2 Yes Yes 86550-N3601
  12 ASSY SLIDE LESS LEVE 86550-N4200 7409 7607 2 No No 86550-N3602
  12 ASSY SLIDE LESS LEVE 86550-N4700 7608 2 No No 86550-N4200
  13 NUT HEX FIX SLIDE TO 08911-10810 8
  14 WASHER LOCK FIX SLID 08915-13810 8
  15 SPACER SEAT 86511-E4100 7408 16
  16 SPACER SEAT 86510-E4100 7408 8
  17 WASHER LOCK FIX SEAT 08915-13810 7408 8
  18 NUT HEX FIX SEAT TO 08911-10810 7408 8
  19 WASHER PLAON FIX SEA 08915-43810 7408 8
  20 BOLT HEX FIX SEAT TO 08116-82037 7409 7607 8
  20 BOLT HEX FIX SEAT TO 08116-82547 7608 8
  21 ASSY DEVICE SEAT REC 86470-E8800 7602 1
  21 ASSY DEVICE SEAT REC 86470-N4500 7603 7607 1 No No 86470-E8800
  21 ASSY DEVICE SEAT REC 86470-N4700 7608 1 No No 86470-N4500
  22 ASSY-DEVICE 87470-E8800 7602 1
  22 ASSY-DEVICE 87470-N4200 7603 7607 1 No No 87470-E8800
  22 ASSY-DEVICE 87470-N4700 7608 1 No No 87470-N4200
  23 COVER-DEVICE 86475-N3400 7602 1
  23 COVER-DEVICE 86475-N4200 7603 7607 1 No No 86475-N3400
  23 COVER-DEVICE 86475-N4700 7608 1 No No 86475-N4200
  24 COVER-DEVICE 87475-N3400 7602 1
  24 COVER-DEVICE 87475-N4200 7603 7607 1 No No 87475-N3400
  24 COVER-DEVICE 87475-N4700 7608 1 No No 87475-N4200
  25 COVER-DEVICE 86478-N3400 7607 1
  25 COVER-DEVICE H6478-N3400 7607 1 Yes Yes 86478-N3400
  25 COVER-DEVICE 86478-N4700 7608 1 No No 86478-N3400
  26 COVER-DEVICE 87478-N3400 7607 1
  26 COVER-DEVICE H7478-N3400 7607 1 Yes Yes 87478-N3400
  26 COVER-DEVICE 87478-N4700 7608 1 No No 87478-N3400
  27 ASSY-SPRING 86480-E8210 7410 1
  27 ASSY-SPRING 86480-N4500 7411 7607 1 Yes Yes 86480-E8210
  27 ASSY-SPRING 86480-N4700 7608 1 No No 86480-N4500
  28 ASSY-SPRING 87480-E8210 7410 1
  28 ASSY-SPRING 87480-N4500 7411 7607 1 Yes Yes 87480-E8210
  28 ASSY-SPRING 87480-N4700 7608 1 No No 87480-N4500
  29 SCREW-SPECIAL FIX DE 86902-U0201 8
  30 SCREW-SPECIAL FIX DE 86902-E8800 8
  31 WASHER-LOCK FIX DEVI 08916-43810 8
