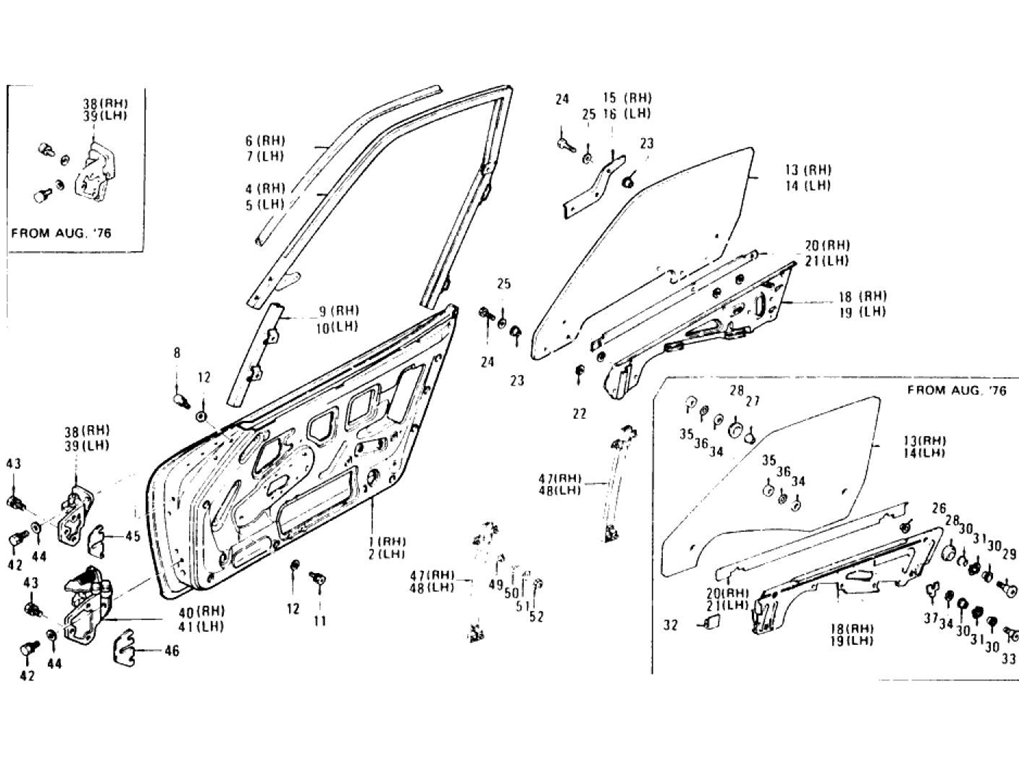

Door Panel, Glass & Hinge Door Panel, Glass & Hinge (2 Seater) (From Aug.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-PANEL DOOR RH | 80100-N3600 | | | | 1 | | | |
|
1 | ASSY-PANEL DOOR RH | 80100-N4200 | | 7507 | | 1 | No | No | 80100-N3600 |
|
1 | ASSY-PANEL DOOR RH | 80100-N4202 | | 7608 | | 1 | No | No | H0100-N4201 |
|
1 | ASSY-PANEL DOOR RH | H0100-N4201 | FROM HLS30-272992 | 7509 | 7607 | 1 | No | No | H0100-N4200 |
|
1 | ASSY-PANEL DOOR RH | H0100-N4200 | UP TO HLS30-27299 1 | | 7508 | 1 | Yes | Yes | 80100-N4200 |
|
2 | ASSY-PANEL DOOR LH | 80101-N3600 | | | 7506 | 1 | | | |
|
2 | ASSY-PANEL DOOR LH | 80101-N4200 | | 7507 | | 1 | No | No | 80101-N3600 |
|
2 | ASSY-PANEL DOOR LH | 80101-N4201 | | 7608 | | 1 | No | No | H0101-N4201 |
|
2 | ASSY-PANEL DOOR LH | H0101-N4201 | FROM HLS30-272992 | 7509 | 7607 | 1 | No | No | H0101-N4200 |
|
2 | ASSY-PANEL DOOR LH | H0101-N4200 | UP TO HLS30-27299 1 | | 7508 | 1 | Yes | Yes | 80101-N4200 |
|
3 | PANEL-DOOR OUTER LH | 80151-N3400 | | | | 1 | | | |
|
3 | PANEL-DOOR OUTER RH | 80150-N3400 | | | | 1 | | | |
|
4 | ASSY-SASH DOOR RH | 80200-N3400 | | | 7506 | 1 | | | |
|
4 | ASSY-SASH DOOR RH | 80200-N4500 | | 7507 | 7607 | 1 | No | No | 80200-N3400 |
|
4 | ASSY-SASH DOOR RH | 80200-N4400 | | 7608 | | 1 | No | No | 80200-N4500 |
|
5 | ASSY-SASH DOOR LH | 80201-N3400 | | | 7506 | 1 | | | |
|
5 | ASSY-SASH DOOR LH | 80201-N4500 | | 7507 | 7607 | 1 | No | No | 80201-N3400 |
|
5 | ASSY-SASH DOOR LH | 80201-N4400 | | 7608 | | 1 | No | No | 80201-N4500 |
|
6 | WEATHERSTRIP-DOOR SA | 80810-N4500 | | 7507 | | 1 | | | |
|
7 | WERTHERSTRIP-DOOR SA | 80811-N4500 | | 7507 | | 1 | | | |
|
8 | BOLT-HEX M6 | 01431-00063 | | | | 16 | | | |
|
9 | ASSY-SASH DOOR FRON | 80210-N3400 | | | | 1 | | | |
|
10 | ASSY-SASH DOOR FRON | 80211-N3400 | | | | 1 | | | |
|
11 | SCREW-MACHINE M6 | 01431-00063 | | | | 4 | | | |
|
12 | WASHER-PLAIN M6 | 08915-43610 | | | | 2 | | | |
|
13 | GLASS-DOOR WINDOW RH | 80311-E4101 | | | 7506 | 1 | | | |
|
13 | GLASS-DOOR WINDOW RH | 80311-N4500 | | 7507 | 7607 | 1 | No | No | 80311-E4101 |
|
13 | GLASS-DOOR WINDOW RH | 80312-N4400 | | 7608 | | 1 | No | No | 80311-N4500 |
|
14 | GLASS-DOOR WINDOW LH | 80312-E4101 | | | 7506 | 1 | | | |
|
14 | GLASS-DOOR WINDOW LH | 80312-N4500 | | 7507 | 7607 | 1 | No | No | 80312-E4101 |
|
14 | GLASS-DOOR WINDOW LH | 80313-N4400 | | 7608 | | 1 | No | No | 80312-N4500 |
|
15 | PATCH-DOOR GLASS RH | 80320-E4100 | | | 7607 | 1 | | | |
|
16 | PATCH-DOOR GLASS LH | 80321-E4100 | | | 7607 | 1 | | | |
|
17 | WASHER-PLAIN | 08915-43510 | | | 7607 | 6 | | | |
|
18 | ASSY-BOTTOM DOOR GLA | 80302-N3400 | | | 7607 | 1 | | | |
|
18 | ASSY-BOTTOM DOOR GLA | 80302-N4400 | | 7608 | | 1 | No | No | 80302-N3400 |
|
19 | ASSY-BOTTOM DOOR GLA | 80303-N4400 | | 7608 | | 1 | No | No | 80303-N3400 |
|
19 | ASSY-GLASS DOOR BOTT | 80303-N3400 | | | 7607 | 1 | | | |
|
20 | RUBBER-GLAZING DOOR | 80315-E4100 | | | 7607 | 1 | | | |
|
20 | RUBBER-GLAZING DOOR | 80314-N4400 | | 7608 | | 1 | No | No | 80315-E4100 |
|
21 | RUBBER-GLAZING DOOR | 80316-E4100 | | | 7607 | 1 | | | |
|
21 | RUBBER-GLAZING DOOR | 80315-N4400 | | 7608 | | 1 | No | No | 80316-E4100 |
|
22 | PACKING-GLASS DOOR W | 80317-E4100 | | | 7607 | 8 | | | |
|
23 | FASIENER-GLASS DOOR | 80318-E4100 | | | 7607 | 14 | | | |
|
24 | BOLT-SOUARE M5 | 08360-51410 | | | 7607 | 14 | | | |
|
25 | WASHER-SPECIAL | 96830-A0800 | | | 7607 | 14 | | | |
|
26 | BUSH-WINDOW GLASS IN | 80824-E6601 | | 7608 | | 4 | | | |
|
27 | BUSH-WINDOW GLASS OU | 80823-E6601 | | 7608 | | 4 | | | |
|
28 | WASHER-WINDOW GLASS | 82322-E6600 | | 7608 | | 8 | | | |
|
29 | SHAFT-GUIDE ROLLER | 80338-E6600 | | 7608 | | 4 | | | |
|
30 | RUBBER-BUSH ROLLER | 80357-E6601 | | 7608 | | 16 | | | |
|
31 | SLIDE-DOOR WINDOW | 80325-E6601 | | 7608 | | 16 | | | |
|
32 | RUBBER-GLAZING BACK | 80345-N3700 | | 7608 | | 8 | | | |
|
33 | SHAFT-GUIDE ROLLER | 80356-E6600 | | 7608 | | 4 | | | |
|
34 | WASHER-PLAIN | 08915-53610 | | 7608 | | 8 | | | |
|
35 | NUT-JUM | 08911-30610 | | 7608 | | 8 | | | |
|
36 | WASHER-LOCK | 08916-33610 | | 7608 | | 8 | | | |
|
37 | SHIM-DOOR WINDOW | 80346-E6600 | | 7608 | | 4 | | | |
|
38 | ASSY-HINGE DOOR UPPE | 80400-N3000 | | | 7507 | 1 | | | |
|
38 | ASSY-HINGE DOOR UPPE | 80400-N4501 | | 7508 | 7607 | 1 | No | No | 80400-N3000 |
|
38 | ASSY-HINGE DOOR UPPE | 80400-N4400 | | 7608 | | 1 | No | No | 80400-N4501 |
|
39 | ASSY-HINGE DOOR UPPE | 80401-N3000 | | | 7507 | 1 | | | |
|
39 | ASSY-HINGE DOOR UPPE | 80401-N4501 | | 7508 | 7607 | 1 | No | No | 80401-N3000 |
|
39 | ASSY-HINGE DOOR UPPE | 80401-N4400 | | 7608 | | 1 | No | No | 80401-N4501 |
|
40 | ASSY-HINGE DOOR LOWE | 80420-E8200 | | | 7507 | 1 | | | |
|
40 | ASSY-HINGE DOOR LOWE | 80420-N4501 | | 7508 | | 1 | No | No | 80420-E8200 |
|
41 | ASSY-HINGE DOOR LOWE | 80421-E8200 | | | 7507 | 1 | | | |
|
41 | ASSY-HINGE DOOR LOWE | 80421-N4501 | | 7508 | | 1 | No | No | 80421-E8200 |
|
42 | BOLT-HEX (FIX TO DOO | 08130-82062 | | | | 10 | | | |
|
43 | BOLT-HEX (FIX TO PIL | 08130-82062 | | | 7507 | 12 | | | |
|
43 | BOLT-HEX (FIX TO PIL | 08130-83062 | | 7508 | | 12 | No | No | 08130-82062 |
|
44 | WASHER-SPECIAL | 80425-22900 | | | | 24 | | | |
|
45 | SHIM-DOOR HINGE UPPE | 80405-E4100 | | | 7507 | 2 | | | |
|
45 | SHIM-DOOR HINGE UPPE | 80406-E4100 | | | 7507 | 2 | | | |
|
45 | SHIM-DOOR HINGE UPPE | 80405-N4501 | | 7508 | | 2 | No | No | 80405-E4100 |
|
45 | SHIM-DOOR HINGE UPPE | 80406-N4501 | | 7508 | | 2 | No | No | 80406-E4100 |
|
46 | SHIM-DOOR HINGE LOWE | 80426-E4100 | | | 7507 | 2 | | | |
|
46 | SHIM-DOOR HINGE LOWE | 80426-N4501 | | 7508 | | 2 | No | No | 80426-E4100 |
|
46 | SHIM-DOOR HINGE LWER | 80425-E4100 | | | 7507 | 2 | | | |
|
46 | SHIM-DOOR HINGE LWER | 80425-N4501 | | 7508 | | 2 | No | No | 80425-E4100 |
|
47 | ASSY-RAIL | 80240-N4400 | | 7608 | | 2 | | | |
|
48 | ASSY-RAIL | 80241-N4400 | | 7608 | | 2 | | | |
|
49 | SCREW-ADJUST | 82299-E6600 | | 7608 | | 12 | | | |
|
50 | WASHER-PLAIN | 08915-44210 | | 7608 | | 12 | | | |
|
51 | WASHER-LOCK | 08916-34210 | | 7608 | | 12 | | | |
|
52 | NUT | 08911-34210 | | 7608 | | 12 | | | |
