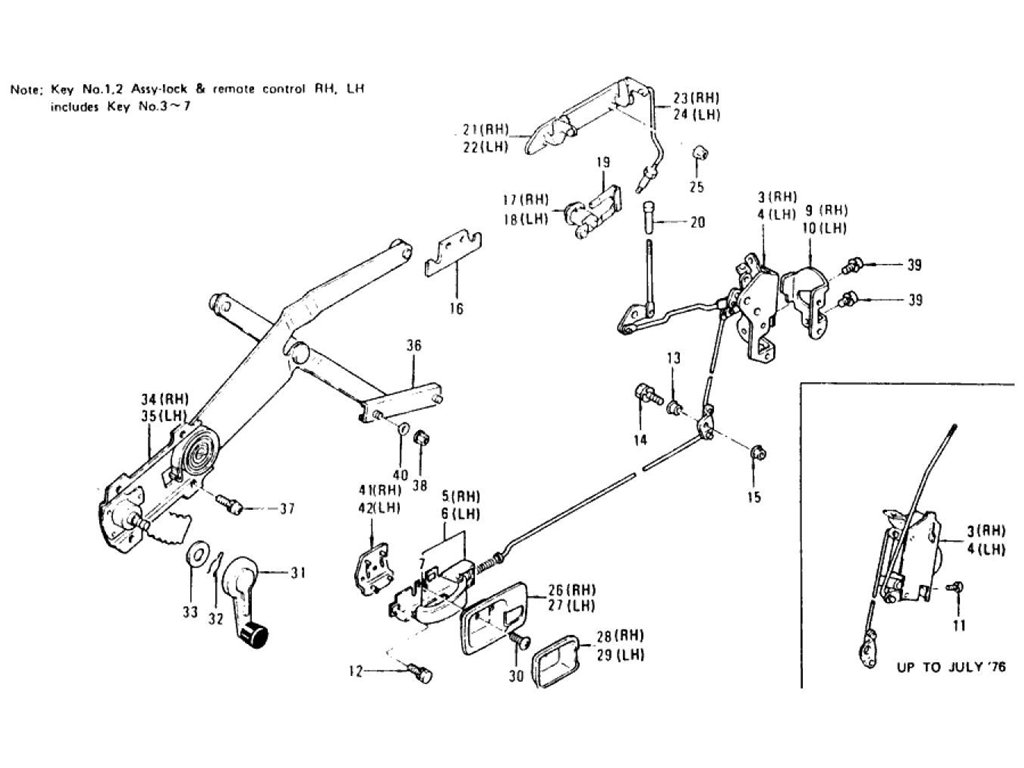

Door Lock, Regulator & Handle Door Lock, Window Regulator & Door Handle (2 Seater) (From Aug.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-LOCK & REMOTE C | 80500-E4100 | | | 7607 | 1 | | | |
|
1 | ASSY-LOCK & REMOTE C | 80500-N4400 | | 7608 | | 1 | No | No | 80500-E4100 |
|
1 | ASSY-LOCK & REMOTE C | 80500-N7601 | | 7708 | | 1 | | | |
|
1 | ASSY-LOCK & REMOTE C | 80500-N7602 | | 7708 | | 1 | | | |
|
2 | ASSY-LOCK & REMOTE C | 80501-E4100 | | | 7607 | 1 | | | |
|
2 | ASSY-LOCK & REMOTE C | 80501-N4400 | | 7608 | | 1 | No | No | 80501-E4100 |
|
2 | ASSY-LOCK & REMOTE C | 80501-N7601 | | 7708 | | 1 | | | |
|
2 | ASSY-LOCK & REMOTE C | 80501-N7602 | | 7708 | | 1 | | | |
|
3 | ASSY-LOCK DOOR RH | 80502-E4100 | | | 7607 | 1 | | | |
|
3 | ASSY-LOCK DOOR RH | 80502-N4420 | | 7608 | | 1 | No | No | 80502-E4100 |
|
4 | ASSY-LOCK DOOR LH | 80503-E4100 | | | 7607 | 1 | | | |
|
4 | ASSY-LOCK DOOR LH | 80503-N4420 | | 7608 | | 1 | No | No | 80503-E4100 |
|
5 | ASSY-REMOTE CONTROL | 80504-N3000 | | | 7607 | 1 | | | |
|
5 | ASSY-REMOTE CONTROL | 80504-N4400 | | 7608 | | 1 | No | No | 80504-N3000 |
|
6 | ASSY-REMOTE CONTROL | 80505-N3000 | | | 7607 | 1 | | | |
|
6 | ASSY-REMOTE CONTROL | 80505-N4400 | | 7608 | | 1 | No | No | 80505-N3000 |
|
7 | ASSY-INSIDE HANDLE D | 80520-E4100 | | | | 2 | | | |
|
7 | ASSY-INSIDE HANDLE D | 80520-N7601 | | 7708 | | 2 | | | |
|
7 | ASSY-INSIDE HANDLE D | 80520-N7602 | | 7708 | | 2 | | | |
|
8 | DOVE-TAIL DOOR | 80530-N3400 | | | 7505 | 2 | | | |
|
8 | DOVE-TAIL DOOR | 80530-N4500 | | 7506 | 7607 | 2 | Yes | Yes | 80530-N3400 |
|
9 | RUBBER-SEATING RH | 80530-N4600 | | 7608 | | 1 | | | |
|
10 | RUBBER-SEATING LH | 80531-N4600 | | 7608 | | 1 | | | |
|
11 | SCREW-MACHINE | 01433-00021 | | 7608 | | 6 | | | |
|
11 | SCREW-MACHINE M6X1.0 | 08320-61219 | | | 7607 | 6 | | | |
|
12 | SCREW-MACHINE FIX RE | 08363-61226 | | | | 4 | | | |
|
13 | COLLAR-BELL CRANK | 80515-N3000 | | | 7607 | 4 | | | |
|
14 | BOLT-HEX FLANGE HEAD | 08363-61214 | | | 7607 | 2 | | | |
|
15 | NUT-FLANGE BELL CRAN | 01221-00033 | | | 7607 | 2 | | | |
|
16 | BAFFLE-OUTER HANDLE | 80680-B0700 | | | | 2 | | | |
|
17 | CYLINDER-LOCK DOOR R | 80600-E8201 | | | | 1 | | | 80600-E8200 |
|
18 | CYLINDER-LOCK DOOR L | 80601-E8200 | | | | 1 | | | |
|
18 | CYLINDER-LOCK DOOR L | 80601-E8201 | | | | 1 | | | 80601-E8200 |
|
19 | CLIP-RETAINING CYLIN | 80590-10601 | | | | 2 | | | |
|
20 | KNOB-DOOR LOCK (BEIG | 80595-N7602 | | 7708 | | 2 | | | |
|
20 | KNOB-DOOR LOCK (BLAC | 80595-N1600 | | | | 2 | | | |
|
20 | KNOB-DOOR LOCK (BROW | 80595-N7601 | | 7708 | | 2 | | | |
|
21 | ASSY-HANDLE DOOR OUT | 80605-E4100 | | | 7607 | 1 | | | |
|
21 | ASSY-HANDLE DOOR OUT | 80605-N4400 | | 7608 | | 1 | No | No | 80605-E4100 |
|
22 | ASSY-HANDLE DOOR OUT | 80606-E4100 | | | 7607 | 1 | | | |
|
22 | ASSY-HANDLE DOOR OUT | 80606-N4400 | | 7608 | | 1 | No | No | 80606-E4100 |
|
23 | ASSY-ROD HANDLE DOOR | 80608-E4101 | | | 7607 | 1 | | | |
|
23 | ASSY-ROD HANDLE DOOR | 80608-N4400 | | 7608 | | 1 | No | No | 80608-E4101 |
|
24 | ASSY-ROD HANDLE DOOR | 80609-E4101 | | | 7607 | 1 | | | |
|
24 | ASSY-ROD HANDLE DOOR | 80609-N4400 | | 7608 | | 1 | No | No | 80609-E4101 |
|
25 | NUT-FLANGE | 01221-00023 | | | | 4 | | | |
|
26 | ESCUTCHEON-REMOTE CO | 80512-E4100 | | | | 1 | | | |
|
27 | ESCUTCHEON-REMOTE CO | 80513-E4100 | | | | 1 | | | |
|
28 | COVER-ESCUTCHEON RH | 80517-E0101 | | | | 1 | | | |
|
28 | COVER-ESCUTCHEON RH | 80517-N7601 | | 7708 | | 1 | | | |
|
28 | COVER-ESCUTCHEON RH | 80517-N7602 | | 7708 | | 1 | | | |
|
29 | COVER-ESCUTCHEON LH | 80518-E0101 | | | | 1 | | | |
|
29 | COVER-ESCUTCHEON LH | 80518-N7601 | | 7708 | | 1 | | | |
|
29 | COVER-ESCUTCHEON LH | 80518-N7602 | | 7708 | | 1 | | | |
|
30 | SCREW-MACHINE | 08320-40812 | | | | 2 | | | |
|
31 | ASSY-HANDLE DOOR WIN | 80760-A0600 | | | | 2 | | | |
|
31 | ASSY-HANDLE DOOR WIN | 80760-N7601 | | 7708 | | 2 | | | |
|
31 | ASSY-HANDLE DOOR WIN | 80760-N7602 | | 7708 | | 2 | | | |
|
32 | 54229-0201P | 80673-A0600 | | | | 2 | | | |
|
33 | WASHER-SEATING HANDL | 80763-A0600 | | | | 2 | | | |
|
34 | ASSY-REGULATOR DOOR | 80700-N3400 | | | 7607 | 1 | | | |
|
34 | ASSY-REGULATOR DOOR | 80700-N4400 | | 7608 | | 1 | No | No | 80700-N3400 |
|
35 | ASSY-REGULATOR DOOR | 80701-N3400 | | | 7607 | 1 | | | |
|
35 | ASSY-REGULATOR DOOR | 80701-N4400 | | 7608 | | 1 | No | No | 80701-N3400 |
|
36 | ASSY-GUIDE DOOR WIND | 80710-21000 | | | 7607 | 2 | | | |
|
37 | SCREW-MACHINE M6X1.0 | 08310-61014 | | | 7607 | 8 | | | |
|
37 | SCREW-MACHINE M6X1.0 | 08360-61226 | | 7608 | | 8 | | | |
|
38 | NUT-FLANGE | 01221-00033 | | | 7607 | 4 | | | |
|
38 | SCREW-MACHINE | 08363-61226 | | 7608 | | 4 | | | |
|
39 | SCREW-MACHINE | 08310-51226 | | 7608 | | 8 | | | |
|
40 | WASHER-SPECIAL MB | 77740-89909 | | | 7607 | 4 | | | |
|
41 | BRACKET ASSY CONTROL | 80116-N3400 | | | 7607 | 1 | | | |
|
41 | BRACKET ASSY CONTROL | 80116-N4400 | | 7608 | | 1 | | | |
|
42 | BRACKET ASSY CONTROL | 80117-N3400 | | | 7607 | 1 | | | |
|
42 | BRACKET ASSY CONTROL | 80117-N4400 | | 7608 | | 1 | | | |
