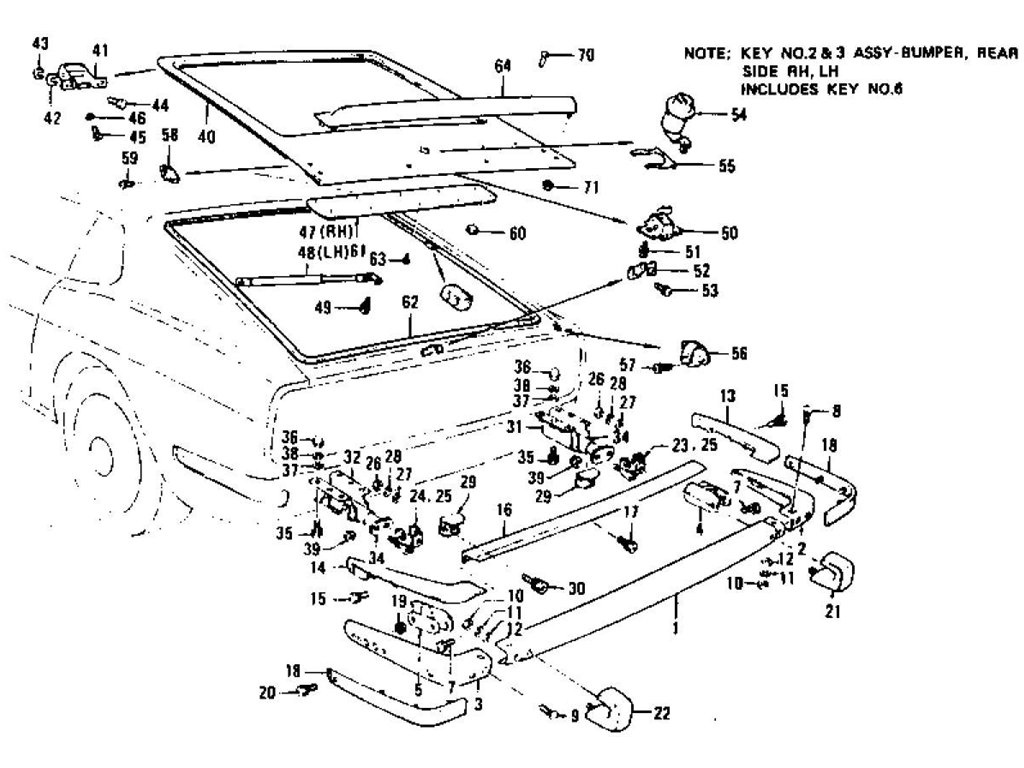

Tail Gate Panel, Trim, Lock & Rear Bumper (2+2 Seater) (From Oct.-'73 To Aug.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY BUMPER REAR CEN | 85009-N4100 | 1 | ||||||
| 2 | ASSY BUMPER REAR SID | 85005-N3600 | 1 | ||||||
| 3 | ASSY BUMPER REAR SID | 85006-N3600 | 1 | ||||||
| 4 | ASSY INSULATOR REAR | 85040-N4100 | 1 | ||||||
| 5 | ASSY INSULATOR REAR | 85041-N4100 | 1 | ||||||
| 6 | BRACKET REAR BUMPER | 85020-N3600 | 2 | ||||||
| 7 | SCREW WITH WASHER | 08363-61248 | 8 | ||||||
| 8 | BOLT CARRIDGE | 62663-N3600 | 2 | ||||||
| 9 | BOLT CARRIDGE | 62663-18000 | 2 | ||||||
| 10 | NUT HEX | 08911-10610 | 4 | ||||||
| 11 | WASHER LOCK | 08915-23610 | 4 | ||||||
| 12 | WASHER PLAIN | 08915-43610 | 4 | ||||||
| 13 | ASSY PACKING REAR BU | 85900-N4100 | 1 | ||||||
| 14 | ASSY PACKING REAR BU | 85901-N4100 | 1 | ||||||
| 15 | BOLT WITH WASHER | 08360-41426 | 6 | ||||||
| 16 | ASSY SIGHT SHIELD RE | 85950-N4100 | 1 | ||||||
| 17 | BOLT WITH WASHER | 08360-61826 | 5 | ||||||
| 18 | RUBBER REAR BUMPER S | 85007-N3600 | 2 | ||||||
| 19 | NUT FLANGE M5 | 01221-00023 | 8 | ||||||
| 20 | SCREW | 08313-41698 | 2 | ||||||
| 21 | ASSY OVERRIDER REAR | 85050-N3600 | 1 | ||||||
| 22 | ASSY-OVERRIDER | 85051-N3600 | 1 | ||||||
| 23 | ASSY-JOINT REAR BUMP | 85030-N3600 | 1 | ||||||
| 24 | ASSY-JOINT REAR BUMP | 85031-N3600 | 1 | ||||||
| 25 | ASSY-JOINT REAR BUMP | 85032-N3600 | 2 | ||||||
| 26 | NUT-HEX. | 08911-10810 | 4 | ||||||
| 27 | WASHER-PLAIN | 08915-43810 | 4 | ||||||
| 28 | WASHER-LOCK | 08915-13810 | 4 | ||||||
| 29 | ASSY-HOOK | 85220-N3700 | 2 | ||||||
| 30 | BOLT | 08124-03033 | 4 | ||||||
| 31 | ASSY-STAY | 85210-N4100 | 1 | ||||||
| 32 | ASSY-STAY | 85211-N4100 | 1 | ||||||
| 33 | SHIM-JOINT | 62669-N3601 | 2 | Yes | Yes | 85027-N3600 | |||
| 33 | SHIM-JOINT | 85027-N3600 | 2 | ||||||
| 34 | KIT-ABSORBER | 85028-N3600 | 2 | ||||||
| 35 | BOLT-WITH WASHER FIX | 08120-83033 | 6 | ||||||
| 36 | NUT-CUP | 13274-78200 | 6 | ||||||
| 37 | WASHER-PLAIN | 08915-53810 | 6 | ||||||
| 38 | WASHER-LOCK | 08915-23800 | 6 | ||||||
| 38 | WASHER-LOCK | 08915-23810 | 6 | Yes | Yes | 08915-23800 | |||
| 39 | NUT-HEX.FIX SHOCK AB | 08911-10837 | 4 | ||||||
| 40 | ASSY-PANEL TAIL GATE | 90101-N3700 | 7507 | 1 | |||||
| 40 | ASSY-PANEL TAIL GATE | 90101-N4000 | 7508 | 1 | Yes | Yes | 90101-N3700 | ||
| 41 | ASSY-TAIL GATE HINDE | 90400-N3700 | 2 | ||||||
| 42 | SHIM-ADJUSTING TAIL | 90407-N3700 | 4 | ||||||
| 43 | SHIM-ADJUSTING TAIL | 90407-E4100 | 4 | ||||||
| 44 | SCREW-MACHINE M8 | 08110-82525 | 4 | ||||||
| 45 | SCREW-MACHINE M8 | 08320-81812 | 4 | ||||||
| 46 | WASHER-TOOTH M8 | 08916-43810 | 4 | ||||||
| 47 | SET-STAY TAIL GATE R | 90420-N3701 | 7408 | 1 | |||||
| 47 | SET-STAY TAIL GATE R | 90420-N3702 | 7409 | 1 | Yes | Yes | 90420-N3701 | ||
| 48 | SET-STAY TAIL GATE L | 90421-N3701 | 7408 | 1 | |||||
| 48 | SET-STAY TAIL GATE L | 90421-N3702 | 7409 | 1 | Yes | Yes | 90421-N3701 | ||
| 49 | SCREW-MACHINE | 08363-61626 | 6 | ||||||
| 50 | ASSY-TAIL GATE LOCK | 90502-E4101 | 1 | ||||||
| 51 | SCREW-MACHINE M6 | 08363-61626 | 2 | ||||||
| 52 | ASSY-STRIKER TAIL GA | 90805-E4100 | 1 | ||||||
| 53 | SCREW-MACHINE M6 | 08363-61626 | 2 | ||||||
| 54 | CYLINDER-LOCK TAIL G | 90560-E8200 | 1 | ||||||
| 54 | CYLINDER-LOCX TAIL G | 90560-E8201 | 7508 | 1 | 90560-E8200 | ||||
| 55 | CLIP-CYLINDER | 96809-19700 | 1 | ||||||
| 56 | ASSY-DOWN STOPPER TA | 90522-E4100 | 2 | ||||||
| 56 | ASSY-DOWN STOPPER TA | 90522-E4100 | 2 | Yes | Yes | 90522-E4100 | |||
| 57 | SCREW-MACHINE M5 | 08363-61626 | 4 | ||||||
| 58 | BUMPER-RUBBER TAIL G | 90526-E4100 | 2 | ||||||
| 58 | BUMPER-RUBBER TAIL G | 90526-N4600 | 7705 | 2 | Yes | Yes | 90526-E4100 | ||
| 59 | SCREW-MACHINE | 08313-51226 | 4 | ||||||
| 60 | GROMMET-HEATER | 27035-21000 | 2 | ||||||
| 61 | ASSY-TRIM TAIL GATE | 90902-N4100 | 1 | ||||||
| 61 | ASSY-TRIM TAIL GATE | 90902-N4101 | 7408 | 1 | |||||
| 61 | ASSY-TRIM TAIL GATE | 90902-N4104 | 1 | ||||||
| 61 | ASSYTRIM TAIL GATE B | 90902-N4103 | 1 | ||||||
| 62 | WEATHERSTRIP-TAIL GA | 76912-N3700 | 7505 | 1 | |||||
| 62 | WEATHERSTRIP-TAIL GA | 76912-N4521 | 7506 | 1 | Yes | Yes | 76912-N3700 | ||
| 63 | CLIP-TRIM | 01553-00081 | 10 | ||||||
| 64 | ASSY-AIR SPOILER | 98100-N3105 | OP. | 1 | Yes | Yes | 98100-N3527 | ||
| 64 | ASSY-AIR SPOILER | 98100-N3525 | OP. | 1 | |||||
| 64 | ASSY-AIR SPOILER | 98100-N3527 | OP. | 1 | Yes | Yes | 98100-N3525 | ||
| 65 | WASHER-PLAIN | 08915-53610 | 8 | ||||||
| 66 | SEALING-AIR SPOILER | 98115-E7200 | 2 | ||||||
| 67 | CUSHION-AIR SPOILER | 98116-E7200 | 2 | ||||||
| 68 | NUT-FLANGE | 01225-00021 | 6 | ||||||
| 69 | WASHER | 08915-53610 | 6 | ||||||
| 70 | PLUG | 77700-89922 | 6 | ||||||
| 71 | MUT-FLANGE M6 | 01225-00021 | 6 | ||||||
| 72 | PLUG-NYLON | 77700-89922 | 5 |
