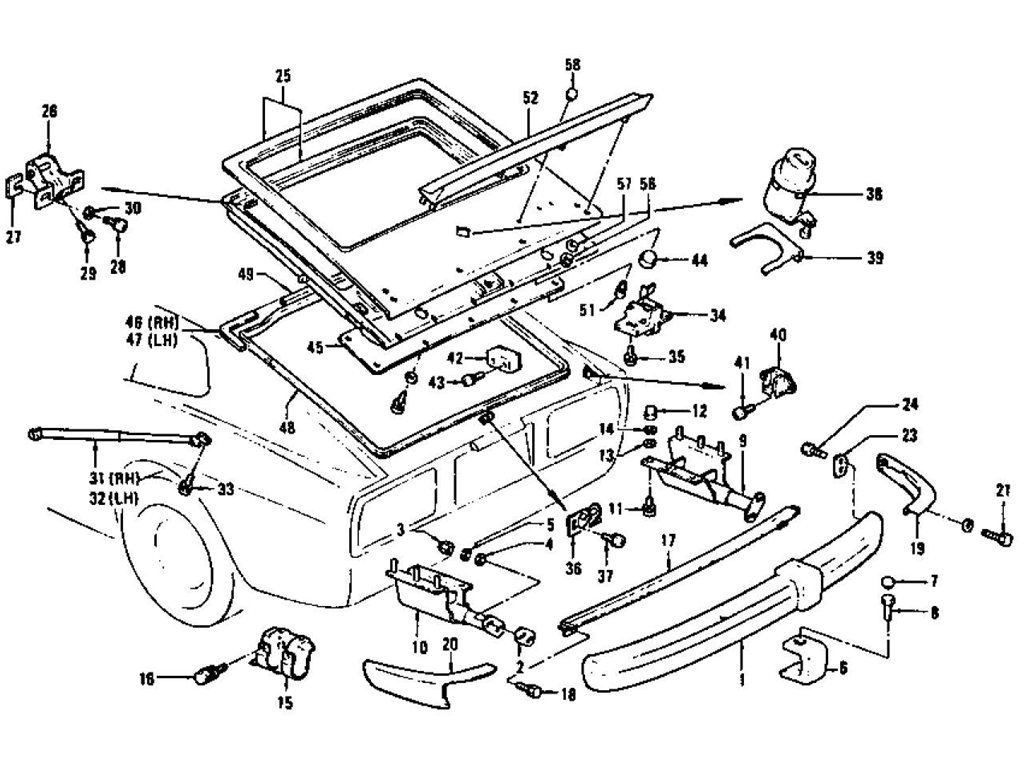

Sep.-'74 To Jul.-'76 Tail Gate Panel, Trim, Lock & Rear Bumper (2+2 Seater) (From Sep.-'74 To Jul.-'76)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-BUMPER | 85301-N4200 | | 7409 | 7507 | 1 | | | |
|
1 | ASSY-BUMPER | 85301-N4201 | | 7508 | | 1 | Yes | Yes | 85301-N4200 |
|
2 | SHIM-REAR BUMPER | 85388-N4200 | | 7409 | | 1 | | | |
|
3 | NUT-HEX | 08912-84010 | | 7409 | | 4 | | | |
|
4 | WASHER-PLAIN | 08915-54010 | | 7409 | 7507 | 4 | | | |
|
4 | WASHER-PLAIN | 54473-N3400 | | 7508 | | 4 | Yes | Yes | 08915-54010 |
|
5 | WASHER-LOCK | 08915-24010 | | 7409 | | 4 | | | |
|
6 | ASSY-OVERRIDER REAR | 85340-N4200 | | 7409 | | 2 | | | |
|
7 | PLUG-OVERRIDER | 85345-N4200 | | 7409 | | 2 | | | |
|
8 | BOLT-HEX | 08120-81633 | | 7409 | | 4 | | | |
|
9 | ASSY-ABSORBER REAR B | 85210-N4220 | | 7409 | | 1 | | | |
|
10 | ASSY-ABSORBER REAR B | 85211-N4220 | | 7409 | | 1 | | | |
|
11 | BOLT-HEX | 01121-00053 | | 7409 | | 6 | | | |
|
12 | NUT-CAP | 13274-78200 | | 7409 | | 6 | | | |
|
13 | WASHER-PLAIN | 08915-53810 | | 7409 | | 6 | | | |
|
14 | WASHER-SPRING | 08915-23810 | | 7409 | | 6 | | | |
|
15 | HEATSHIELD-REAR BUMP | 85090-N3600 | | 7409 | | 1 | | | |
|
16 | SCREW | 08160-61610 | | 7409 | | 3 | | | |
|
17 | ASSY-SIGHT SHIELD RE | 85360-N4200 | | 7409 | | 1 | | | |
|
18 | BOLT-HEX | 08116-83047 | | 7409 | | 3 | | | |
|
19 | ASSY-BUMPER REAR SID | 85350-N4220 | | 7409 | | 1 | | | |
|
20 | ASSY-BUMPER REAR SID | 85351-N4220 | | 7409 | | 1 | | | |
|
21 | BOLT HEX | 08116-84037 | | 7409 | | 2 | | | |
|
22 | BOLT HEX | 08116-83047 | | 7409 | | 2 | | | |
|
23 | SHIELD DUST REAR BUM | 85396-N4200 | | 7409 | | 2 | | | |
|
24 | BOLT HEX | 08363-61648 | | 7409 | | 4 | | | |
|
25 | ASSY PANEL TAIL GATE | 90101-N3700 | | | 7507 | 1 | | | |
|
25 | ASSY PANEL TAIL GATE | 90101-N4000 | | 7508 | | 1 | Yes | Yes | 90101-N3700 |
|
26 | ASSY TAIL GATE HINGE | 90400-N3700 | | | | 2 | | | |
|
27 | SHIM-ADJUSTING TAIL | 90407-E4100 | | | | 4 | | | |
|
27 | SHIM-ADJUSTING TAIL | 90407-N3700 | | | | 4 | | | |
|
28 | SCREW MCHINE M8 | 08110-82525 | | | | 4 | | | |
|
29 | SCREW MACHINE M8 | 08320-81812 | | | | 4 | | | |
|
30 | WASHER TOOTH M8 | 08916-43810 | | | | 4 | | | |
|
31 | SET STAY TAIL GATE R | 90420-N3701 | | | 7408 | 1 | | | |
|
31 | SET STAY TAIL GATE R | 90420-N3702 | | 7409 | | 1 | Yes | Yes | 90420-N3701 |
|
32 | SET STAY TAIL GATE L | 90421-N3701 | | | 7408 | 1 | | | |
|
32 | SET STAY TAIL GATE L | 90421-N3702 | | 7409 | | 1 | Yes | Yes | 90421-N3701 |
|
33 | SCREW MACHINE | 08363-61626 | | | | 6 | | | |
|
34 | ASSY TAIL GATE LOCK | 90502-E4101 | | | | 1 | | | |
|
35 | SCREW MACHINE | 08363-61626 | | | | 2 | | | |
|
36 | ASSY STRICKER TAIL G | 90805-E4100 | | | | 1 | | | |
|
37 | SCREW MACHINE | 08363-61626 | | | | 2 | | | |
|
38 | CYLINDER LOCK TAIL G | 90560-E8201 | | | 7508 | 1 | | | |
|
38 | CYLINDER LOCK TAIL G | 90560-N4420 | | 7509 | | 1 | Yes | Yes | 90560-E8201 |
|
39 | CLIP CYLINDER | 96809-19700 | | | | 1 | | | |
|
40 | ASSY DOWN STOPPER TA | 90522-E4100 | | | | 2 | | | |
|
40 | ASSY DOWN STOPPER TA | 90522-E4100 | | | | 2 | Yes | Yes | 90522-E4100 |
|
41 | SCREW MACHINE | 08363-61626 | | | | 4 | | | |
|
42 | BUMPER RUBBER TAIL G | 90526-E4100 | | | | 2 | | | |
|
43 | SCREW MACHINE | 08313-51226 | | | | 4 | | | |
|
44 | GROMMET HEATER | 27035-21000 | | | | 2 | | | |
|
45 | ASSY TRIM TAIL GATE | 90902-N4100 | | | | 1 | | | |
|
45 | ASSY TRIM TAIL GATE | 90902-N4103 | | | | 1 | | | |
|
45 | ASSY TRIM TAIL GATE | 90902-N4104 | | | | 1 | | | |
|
46 | WEATHERSTRIP TAIL GA | 76913-N4520 | | 7506 | | 1 | | | |
|
47 | WEATHERSTRIP TAIL GA | 76914-N4520 | | 7506 | | 1 | | | |
|
48 | WEATHER STRIP GATE I | 76912-N3700 | | | 7505 | 1 | | | |
|
48 | WEATHER STRIP TAIL G | 76912-N4521 | | 7506 | | 1 | Yes | Yes | 26912-N3700 |
|
49 | WELT TAIL GATE CENTE | 76921-N4420 | | 7508 | | 1 | Yes | Yes | 76921-N4520 |
|
49 | WELT TAIL GATE CENTE | 76921-N4520 | | 7508 | | 1 | | | |
|
50 | SEALING SCREEN TAIL | 90905-N4100 | | 7508 | | 1 | | | |
|
51 | CLIP TRIM | 01553-00081 | | | | 10 | | | |
|
52 | ASSY AIR SPOILAR | 98100-N3105 | OP | | | 1 | Yes | Yes | 98100-N3525 |
|
52 | ASSY AIR SPOILAR | 98100-N3525 | OP | | | 1 | | | |
|
53 | WASHER PLAIN | 08915-53610 | OP | | | 8 | | | |
|
54 | SEALING AIR SPOILER | 98115-E7200 | OP | | | 2 | | | |
|
55 | CUSHION AIR SPOILER | 98116-E7200 | OP | | | 2 | | | |
|
56 | NUT FLANGE | 01225-00021 | OP | | | 6 | | | |
|
57 | WASHER | 08915-53610 | OP | | | 6 | | | |
|
58 | PLUG | 77700-89922 | OP | | | 6 | | | |
|
59 | NUT FLANGE | 01225-00021 | OP | | | 6 | | | |
|
60 | PLUG NYLON | 77700-89922 | OP | | | 5 | | | |
