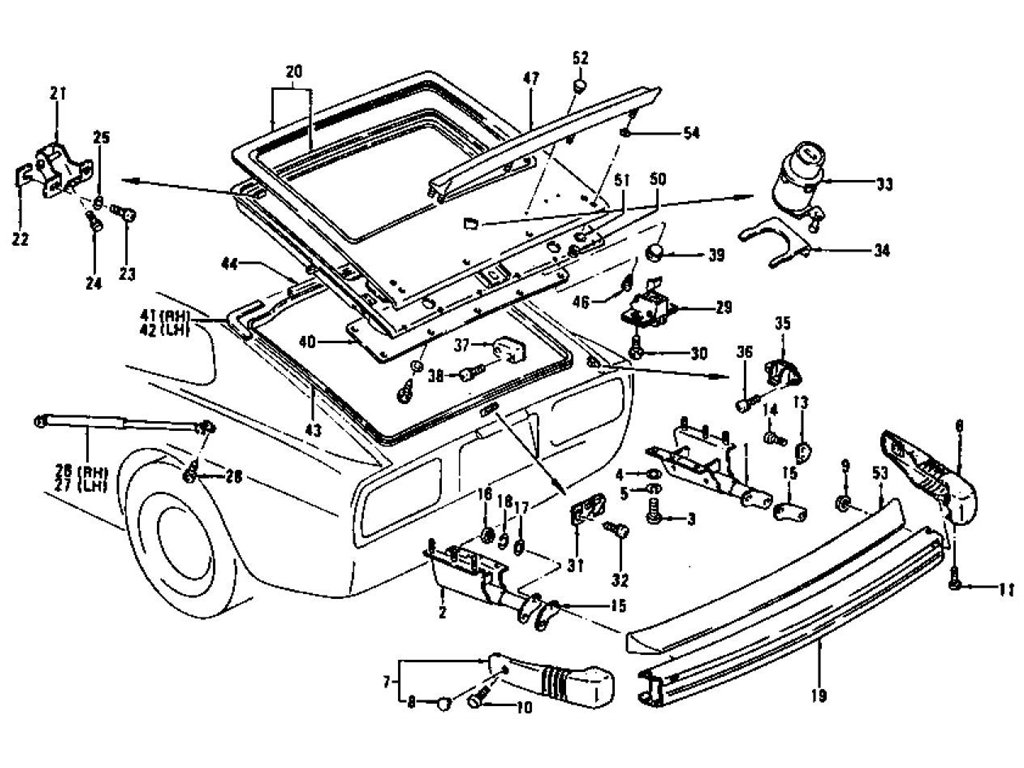

Tail Gate Panel, Trim, Lock & Rear Bumper (2+2 Seater) (From Aug.-'76)

From Aug.-'76
Parts List
Key Part Name Part Number Model From To Qty Newer Former Superceded
  1 COMP SHOCKAB BUMPER 85210-N4710 7608 1
  2 COMP SHOCKAB REAR BU 85211-N4710 7608 1
  3 BOLT HEX 08114-03010 7608 6
  4 WASHER PLAIN 08915-54010 7608 6
  5 WASHER SPRING 08915-24010 7608 6
  6 ASSY BUMPER REAR SID 85350-N4710 7608 1
  7 ASSY BUMPER REAR SID 85351-N4710 7608 1
  8 PLUG BUMPER SIDE REA 85365-N4700 7608 2
  9 NUT FLANGE 01221-00043 7608 2
  10 BOLT HEX 08120-81633 7608 2
  11 BOLT HEX 08116-82037 7608 2
  12 SCREW TAPPING 08510-61623 7608 2
  13 SHIELD DUST REAR BUM 85396-N4200 7608 2
  14 BOLT HEX 08363-61648 7608 4
  15 SHIM REAR BUMPER 85388-N4700 7608 2
  16 NUT HEX 08912-84010 7608 4
  17 J 54473-N3400 7608 4
  18 WASHER LOCK 08915-24010 7608 4
  19 ASSY BUMPER REAR 85301-N4701 7608 1
  20 ASSY PANEL TAIL GATE 90101-N4000 7608 1
  21 ASSY TAIL GATE HINGE 90400-N3700 7608 2
  22 SHIM ADJUSTING TAIL 90407-E4100 7608 4
  22 SHIM ADJUSTING TAIL 90407-N3700 7608 4
  23 SCREW MACHINE M8 08110-82525 7608 4
  24 SCREW MACHINE M8 08320-81812 7608 4
  25 WASHER TOOTH M8 08916-43810 7608 4
  26 SET STAY TAIL GATE R 90420-N3702 7608 1
  27 SET STAY TAIL GATE L 90421-N3702 7608 1
  28 SCREW MACHINE 08363-61626 7608 6
  29 ASSY TAIL GATE LOCK 90502-E4101 7608 1
  30 SCREW MACHINE 08363-61626 7608 2
  31 ASSY STRIKER TAIL GA 90805-E4100 1
  32 SCREW MACHINE 08363-61626 7608 2
  33 CYLINDER LOCK TAIL G 90560-E8201 7608 1
  34 CLIP CYLINDER 96809-19700 7608 1
  35 ASSY DOWN STOPPER TA 90522-E4100 7608 2
  36 SCREW MACHINE 08363-61626 7608 4
  37 BUMPER RUBBER TAIL G 90526-E4100 7608 2
  38 SCREW MACHINE 08313-51226 7608 4
  39 GROMMET HEATER 27035-21000 7608 2
  40 ASSY TRIM TAIL GATE 90902-N4100 7608 1
  40 ASSY TRIM TAIL GATE 90902-N4103 7608 1
  40 ASSY TRIM TAIL GATE 90902-N4104 7608 1
  41 WEATHERSTRIP TAIL GA 76913-N4520 7608 1
  42 WEATHERSTRIP TAIL GA 76914-N4520 7608 1
  43 WEATHERSTRIP TAIL GA 76912-N4521 7608 1
  44 WELT TAIL GATE CENTE 76921-N4420 7608 1
  45 SEALING SCREEN TAIL 90905-N4100 7608 1
  46 CLIP TRIM 01553-00081 7608 10
  47 ASSY SPOILAR AIR 98100-N3527 OP MANUAL 7608 1
  47 ASSY SPOILER AIR 98100-N3528 OP AUTOMATIC 7608 1
  47 ASSY SPOILER AIR 98100-N3105 OP MANUAL 1 Yes Yes 98100-N3527
  48 SEALING AIR SPOILER 98115-E7200 OP 7608 2
  49 CUHSION AIR SPOILER 98116-E7200 OP 7608 2
  50 NUT FLANGE 01225-00021 OP 7608 6
  51 WAHSER 08915-53610 OP 7608 6
  52 PLUG 77700-89922 OP 7608 6
  53 SHINGTSHIELD REAR BU 85360-N4710 7608 1
  54 WASHER AIR SPOILAR 68875-10600 OP 7608 6
