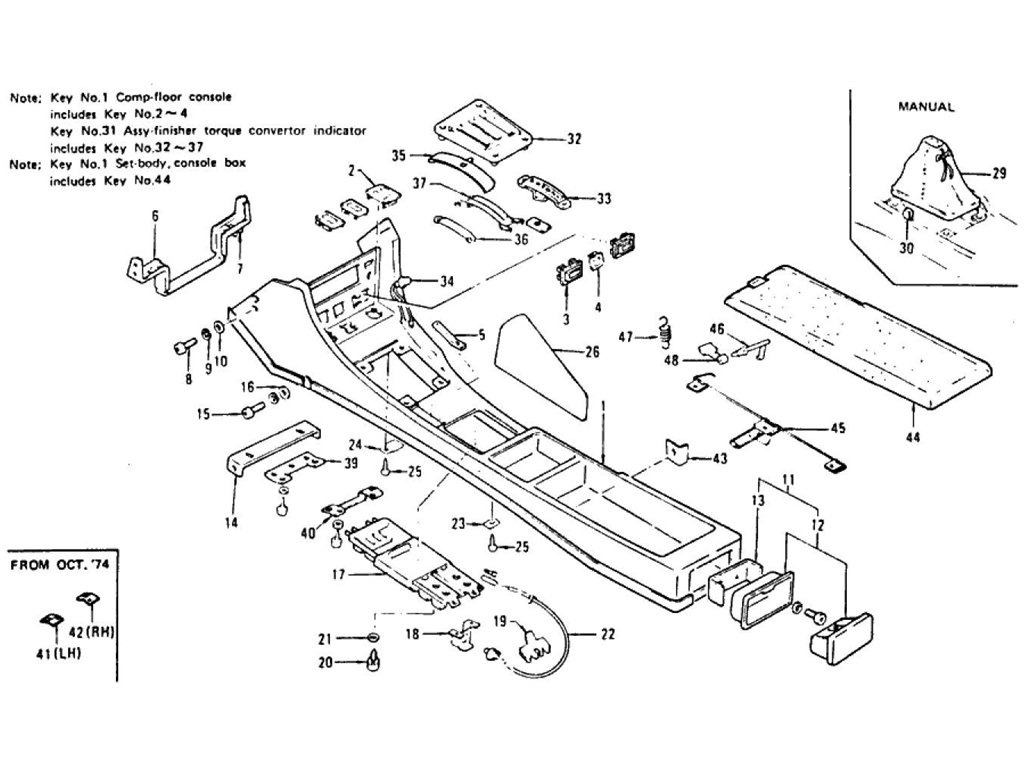

Floor Console, Finisher & Ash Tray Floor Console, Finisher & Ash Tray (2+2 Seater) (From Oct.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | CONSOLE-FLOOR | 96911-N3400 | | | 7507 | 1 | | | |
|
1 | CONSOLE-FLOOR | 96911-N3525 | | | 7607 | 1 | Yes | Yes | 96911-N4500 |
|
1 | CONSOLE-FLOOR | 96911-N4500 | | 7508 | 7607 | 1 | Yes | Yes | 96911-N3400 |
|
1 | SET-BODY CONSOLE BOX | 96911-N4725 | | 7608 | | 1 | No | No | 96911-N3525 |
|
2 | GROMMET-PARKING SWIT | 96925-N3400 | | | | 1 | | | |
|
3 | GROMMET-REAR DEFROST | 96926-N3400 | | | | 3 | | | |
|
4 | GROMMET-FUEL WARNING | 96926-N4200 | | 7409 | | 1 | | | |
|
5 | GROMMET-CHOKE HOLE | 96927-N3400 | | 7412 | | 1 | | | |
|
6 | ASSY-BRACKET | 96915-N3400 | | | | 1 | | | |
|
6 | ASSY-BRACKET | 96915-N4200 | | 7508 | | 1 | Yes | Yes | 96915-N3400 |
|
7 | CLIP | 01551-00013 | | | | 1 | | | |
|
8 | SCREW-MACHINE | 08410-51642 | | | | 1 | | | |
|
9 | WASHER-LOCK | 08915-13542 | | | | 4 | | | |
|
10 | WASHER-PLAIN | 08915-43542 | | | | 4 | | | |
|
11 | ASSY-ASH TRAY REAR | 96530-N3700 | | | 7607 | 1 | Yes | Yes | 96530-N3725 |
|
11 | ASSY-ASH TRAY REAR | 96530-N4420 | | 7608 | | 1 | Yes | Yes | 96530-N3700 |
|
11 | ASSY-ASH TRAY REAR W | 96530-N3725 | | | | 1 | | | |
|
12 | ASH TRAY | 96530-68203 | | | | 1 | | | |
|
13 | ASSY-BRACKET | 96531-N3700 | | | 7607 | 1 | | | |
|
13 | ASSY-BRACKET | 96532-N3700 | | 7608 | | 1 | Yes | Yes | 96531-N3700 |
|
14 | ASSY-BRACKET | 96912-N3400 | | | | 1 | | | |
|
15 | SCREW-MACHINE | 08310-51242 | | | | 2 | | | |
|
16 | WASHER-PLAIN | 08915-43542 | | | | 2 | | | |
|
17 | ASSY-ASH TRAY | 96500-N3400 | | | 7601 | 1 | | | |
|
17 | ASSY-ASH TRAY | 96500-N4400 | | 7602 | 7607 | 1 | Yes | Yes | 96500-N3400 |
|
17 | ASSY-ASH TRAY | 96500-N4600 | | 7608 | | 1 | Yes | Yes | 96500-N4400 |
|
18 | BRACKET-ASH TRAY LAM | 96506-N4600 | | 7608 | | 1 | | | |
|
19 | CLAMP-ASH TRAY | 96509-N4600 | | 7608 | | 1 | | | |
|
20 | SCREW-SELF TAPPING | 01421-00133 | AUTOMATIC | | | 4 | | | |
|
21 | WASHER-PLAIN | 08915-43510 | AUTOMATIC | | | 4 | | | |
|
22 | ASSY-LAMP ASH TRAY | 74987-N4600 | | 7608 | | 1 | | | |
|
23 | CLIP-PLATE | 24210-N4603 | | 7608 | | 4 | | | |
|
24 | CLIP | 24020-N3401 | | 7608 | | 3 | | | |
|
25 | SCREW | 08316-51226 | | 7608 | | 7 | | | |
|
26 | ASSY-COVER | 74980-E4101 | | | | 1 | | | |
|
26 | ASSY-COVER | 74980-E8700 | | | | 1 | Yes | Yes | 74980-E4101 |
|
26 | ASSY-COVER | 74980-N7601 | | | | 1 | | | |
|
27 | FASTENER-FEMALE (BLA | 74982-12900 | | | | 4 | | | |
|
28 | FASTENER-MALE | 74983-12900 | | | | 4 | | | |
|
28 | FASTENER-MALE | 97756-12900 | | | | 4 | Yes | Yes | 74983-12900 |
|
29 | ASSY-BOTTS | 96935-N3400 | MANUAL | | | 1 | | | |
|
30 | CLIP-BOOTS | 75155-E8700 | MANUAL | | | 8 | | | |
|
31 | ASSY-FINISHOR T/CONV | 96940-N3602 | AUTOMATIC | | 7409 | 1 | | | |
|
31 | ASSY-FINISHOR T/CONV | 96940-N3603 | AUTOMATIC | 7410 | 7607 | 1 | Yes | Yes | 96940-N3602 |
|
31 | ASSY-FINISHOR T/CONV | 96940-N4700 | AUTOMATIC | 7608 | | 1 | Yes | Yes | 96940-N3603 |
|
32 | FINISHER-TORQUE CONV | 96941-N3400 | AUTOMATIC | | | 1 | | | |
|
33 | ASSY-BOX LAMP | 96942-N3600 | AUTOMATIC | | | 1 | | | |
|
33 | ASSY-BOX LAMP | 96942-N3601 | AUTOMATIC | | 7409 | 1 | Yes | Yes | 96942-N3600 |
|
33 | ASSY-BOX LAMP | 96942-N3603 | AUTOMATIC | 7410 | 7607 | 1 | | | 96942-N3601 |
|
33 | ASSY-BOX LAMP | 96942-N4700 | AUTOMATIC | 7608 | | 1 | Yes | Yes | 96942-N3603 |
|
34 | ASSY-LAMP INDICATOR | 74985-E8700 | AUTOMATIC | | | 1 | | | |
|
34 | ASSY-LAMP INDICATOR | 74985-N3400 | AUTOMATIC | | 7409 | 1 | Yes | Yes | 74985-E8700 |
|
34 | ASSY-LAMP INDICATOR | 74985-N3403 | AUTOMATIC | 7410 | 7607 | 1 | | | 74985-N3400 |
|
34 | ASSY-LAMP INDICATOR | 74985-N4600 | AUTOMATIC | 7608 | | 1 | Yes | Yes | 74985-N3403 |
|
35 | MASK-SHIFT LEVER | 86773-N3600 | AUTOMATIC | | | 1 | | | |
|
36 | MASK-INDICATOR | 86775-E7900 | AUTOMATIC | | | 1 | | | |
|
37 | GUIDE-INDICATOR | 86771-E7900 | AUTOMATIC | | | 1 | | | |
|
38 | CLIP | 01551-00053 | AUTOMATIC | | | 1 | | | |
|
39 | ASSY-BRACKET | 96917-N3400 | AUTOMATIC | | 7603 | 1 | | | |
|
39 | ASSY-BRACKET | 96917-N4200 | AUTOMATIC | 7604 | | 1 | Yes | Yes | 96917-N3400 |
|
40 | ASSY-BRACKET | 96918-N3401 | AUTOMATIC | | 7409 | 1 | | | |
|
41 | ASSY-BRACKET | 96918-N3400 | AUTOMATIC | 7410 | | 1 | | | 96918-N3401 |
|
42 | ASSY-BRACKET | 96919-N3400 | AUTOMATIC | 7410 | | 1 | | | 96918-N3401 |
|
43 | LOCK-CONSOLE LID "B" | 96968-N4700 | | 7608 | | 1 | | | |
|
44 | ASSY-LID FLOOR CONSO | 96961-N4700 | | 7608 | | 1 | | | |
|
45 | ASSY-HINGE LID | 96965-N4701 | | 7608 | | 1 | | | |
|
46 | LOCK-CONSOLE LID "A" | 96967-N4700 | | 7608 | | 1 | | | |
|
47 | SPRING-LID LOCK | 96966-N4600 | | 7608 | | 1 | | | |
|
48 | KNOB-CONSOLE LID | 96969-N4600 | | 7608 | | 1 | | | |
