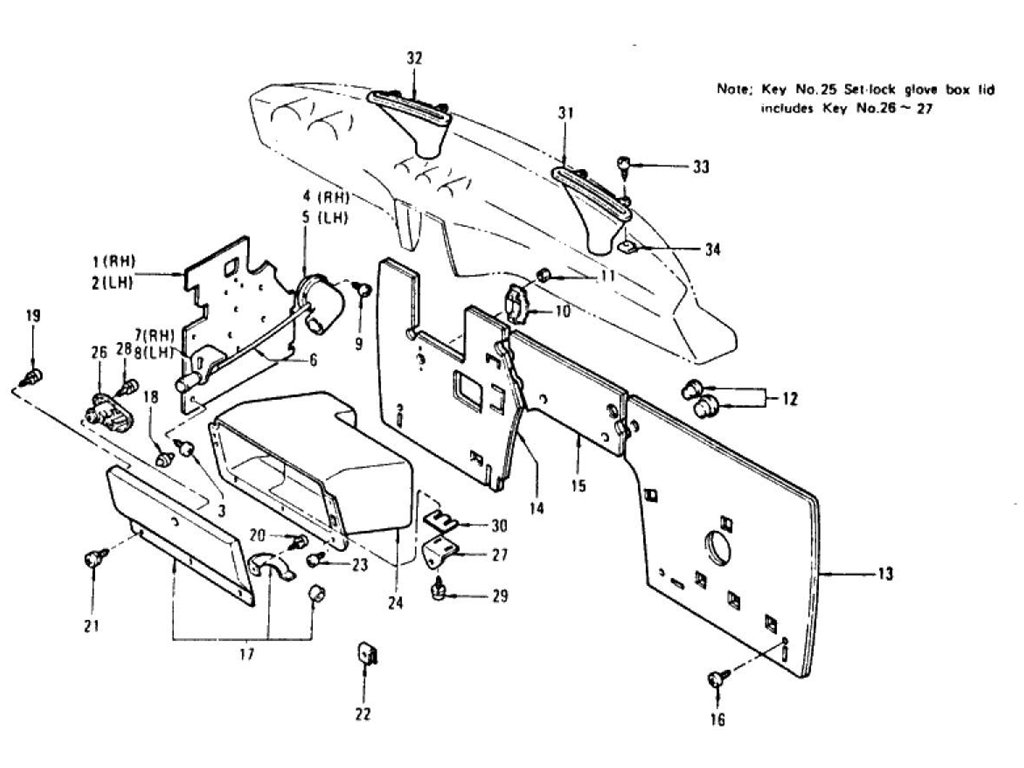

Dash Side Trim, Insulator & Glove Box Dash Side Trim, Insulator & Glove Box (2+2 Seater) (From Oct.-'73)
Parts List Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
1 | TRIM DASH SIDE RH | 66911-N3400 | | | 7408 | 1 | | | |
1 | TRIM DASH SIDE RH | 66911-N4200 | | 7409 | 7607 | 1 | No | No | 66911-N3400 |
1 | TRIM DASH SIDE RH | 66911-N4600 | | 7608 | | 1 | Yes | Yes | 66911-N4200 |
2 | TRIM DASH SIDE LH | 66912-N3400 | | | 7408 | 1 | | | |
2 | TRIM DASH SIDE LH | 66912-N4200 | | 7409 | 7411 | 1 | No | No | 66912-N3400 |
3 | FASTENER TRIM | 67931-08700 | | | | 2 | | | |
4 | SET SIDE AIR VENTILA | 66514-N3400 | | | | 1 | | | |
5 | SET SIDE AIR VENTILA | 66524-N3600 | | | 7411 | 1 | | | |
5 | SET SIDE AIR VENTILA | 66524-N4600 | | | 7411 | 1 | Yes | Yes | 66524-N3600 |
5 | SET SIDE AIR VENTILA | 66524-N4700 | | 7608 | | 1 | No | No | 66524-N3600 |
6 | ASSY CABLE SIDE AIR | 66516-N3400 | | | 7607 | 2 | | | |
6 | ASSY CABLE SIDE AIR | 66516-N3400 | | 7608 | | 1 | | | |
6 | ASSY CABLE SIDE AIR | 66516-N4700 | | 7608 | | 1 | No | No | 66516-N3400 |
7 | BRACKET SIDE VENT | 66519-N3400 | | | | 2 | | | |
7 | BRACKET SIDE VENT RH | 66519-N3400 | | 7608 | | 1 | No | No | 66912-N3400 |
8 | BRACKET SIDE VENT LH | 66519-N4700 | | 7608 | | 1 | | | |
9 | SCREW TAPPING | 08510-51623 | | | | 4 | | | |
10 | COVER CYLINDER HOLE | 67132-36720 | AUTOMATIC | | | 1 | | | |
11 | NUT FLANGE M8 | 01221-00043 | AUTOMATIC | | | 2 | | | |
12 | PLUG RUBBER 30 | 77700-89915 | OP | | | 2 | | | |
13 | ASSY INSULATOR DASH | 67901-N3600 | | | 7408 | 1 | | | |
13 | ASSY INSULATOR DASH | 67901-N4220 | | 7409 | 7607 | 1 | No | No | 67901-N3600 |
13 | ASSY INSULATOR DASH | 67901-N4701 | | 7608 | | 1 | No | No | 67901-N4220 |
14 | ASSY INSULATOR DASH | 67902-N4100 | | | 7408 | 1 | | | |
14 | ASSY INSULATOR DASH | 67902-N4220 | | 7409 | 7607 | 1 | No | No | 67902-N4100 |
14 | ASSY INSULATOR DASH | 67902-N4701 | | 7608 | | 1 | No | No | 67902-N4220 |
15 | ASSY INSULATOR DASH | 67903-N3600 | | | 7607 | 1 | | | |
16 | FASTNER MALE | 97756-E4101 | | | | 4 | | | |
17 | LID GLOVE BOX | 68510-N3600 | | | | 1 | | | |
18 | BUMPER GLOVE BOX LID | 68643-E4101 | | | | 1 | | | |
19 | SCREW TAPPING FIX LI | 08523-41042 | | | | 8 | | | |
20 | SCREW MACHINE WITH W | 08310-41291 | | | | 2 | | | |
21 | SCREW MACHINE WITH W | 08313-51226 | | | | 2 | | | |
22 | NUT SPRING FIX GLOVE | 08964-10410 | | | | 6 | | | |
23 | SCREW TAPPING FIX GL | 08520-41212 | | | | 6 | | | |
24 | ASSY GLOVE BOX | 68500-N3600 | | | | 1 | | | |
25 | SET LOCK GLOVE BOX L | 68630-P0101 | | | | 1 | | | |
26 | ASSY LOCK GLOVE BOX | 68631-P0101 | | | | 1 | | | |
27 | STRIKER GLOVE BOX LI | 68640-N3400 | | | | 1 | | | |
28 | SCREW MACHINE WITH W | 08320-41896 | | | | 2 | | | |
29 | SCREW MACHINE WITH W | 08313-51226 | | | | 2 | | | |
30 | SPACER STRIKER GLOVE | 68645-N3400 | | | | 1 | | | |
31 | ASSY NOZZLE DEFROSTE | 27040-N3100 | | | | 1 | | | |
32 | ASSY NOZZLE DEFROSTE | 27041-N3100 | | | | 1 | | | |
33 | SCREW TAPPING | 08510-41623 | | | | 3 | | | |
34 | NUT SPRING | 08963-10410 | | | | 3 | | | |
