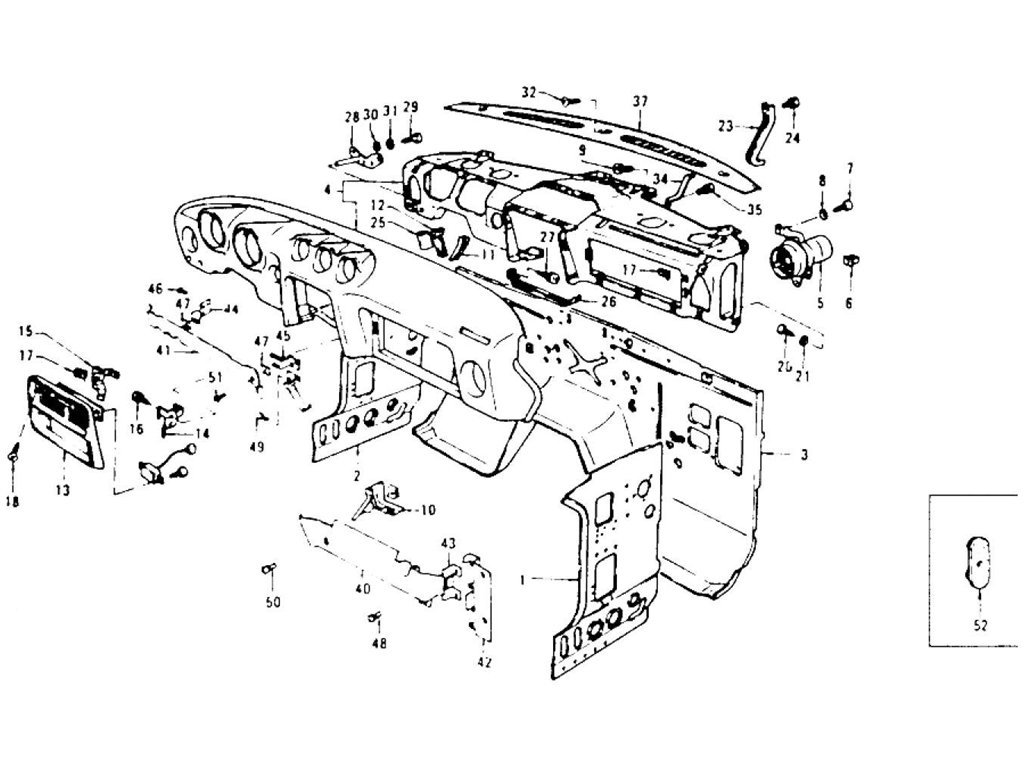

Dash Panel, Side & Instrument Dash Panel, Dash Side Panel & Instrument (2+2 Seater) (From Oct.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY PANEL DASH SIDE | 66400-N3600 | | | 7408 | 1 | | | |
|
1 | ASSY PANEL DASH SIDE | 66400-N4200 | | 7409 | 7507 | 1 | No | No | 66400-N3600 |
|
1 | ASSY PANEL DASH SIDE | 66400-N4224 | USA | 7508 | 7601 | 1 | Yes | Yes | 66400-N4200 |
|
1 | ASSY PANEL DASH SIDE | 66400-N4208 | USA | 7602 | 7607 | 1 | No | No | 66400-N4224 |
|
1 | ASSY PANEL DASH SIDE | 66400-N4700 | USA | 7608 | | 1 | No | No | 66400-N4208 |
|
2 | ASSY PANEL DASH SIDE | 66401-N3600 | | | 7408 | 1 | | | |
|
2 | ASSY PANEL DASH SIDE | 66401-N4310 | | 7409 | 7411 | 1 | No | No | 66401-N3600 |
|
2 | ASSY PANEL DASH SIDE | 66401-N4200 | | 7412 | 7507 | 1 | No | No | 66401-N4310 |
|
2 | ASSY PANEL DASH SIDE | 66401-N4220 | USA | 7508 | 7602 | 1 | No | No | 66401-N4200 |
|
2 | ASSY PANEL DASH SIDE | 66401-N4312 | USA | 7603 | 7607 | 1 | No | No | 66401-N4220 |
|
2 | ASSY PANEL DASH SIDE | 66401-N4700 | USA | 7608 | | 1 | No | No | 66401-N4312 |
|
3 | ASSY PANEL DASH LOWE | 67100-N3626 | AUTOMATIC | | 7408 | 1 | | | |
|
3 | ASSY PANEL DASH LOWE | 67100-N4321 | AUTOMATIC | 7409 | 7411 | 1 | No | No | 67100-N3626 |
|
3 | ASSY PANEL DASH LOWE | 67100-N4206 | AUTOMATIC | 7412 | 7607 | 1 | No | No | 67100-N4321 |
|
3 | ASSY PANEL DASH LOWE | 67100-N4700 | AUTOMATIC | 7608 | | 1 | No | No | 67100-N4206 |
|
3 | ASSY PANEL DASH LOWE | 67100-N3606 | MANUAL | | 7408 | 1 | | | |
|
3 | ASSY PANEL DASH LOWE | 67100-N4320 | MANUAL | 7409 | 7411 | 1 | No | No | 67100-N3606 |
|
3 | ASSY PANEL DASH LOWE | 67100-N4205 | MANUAL | 7412 | 7607 | 1 | No | No | 67100-N4320 |
|
3 | ASSY PANEL DASH LOWE | 67100-N4701 | MANUAL | 7608 | | 1 | No | No | 67100-N4205 |
|
4 | ASSY PANEL INSTRUMEN | 68100-N3650 | | | 7411 | 1 | | | |
|
4 | ASSY PANEL INSTRUMEN | 68100-N4250 | | 7412 | 7607 | 1 | Yes | Yes | 68100-N3650 |
|
4 | ASSY PANEL INSTRUMEN | 68100-N4750 | | 7608 | | 1 | No | No | 68100-N4250 |
|
5 | ASSY VENTILATOR INST | 68750-N3400 | | | | 2 | | | |
|
6 | SCREW GROMMET M5 | 96706-P0105 | | | | 4 | | | |
|
7 | SCREW TAPPING | 08510-51212 | | | | 4 | | | |
|
8 | WASHER PLAIN | 74340-12161 | | | | 4 | | | |
|
9 | SCREW MACHINE WITH W | 08363-61626 | | | | 14 | | | |
|
10 | STAY INSTRUMENT LOWE | 68245-N4202 | | | | 1 | | | |
|
11 | STAY INSTRUMENT CENT | 68250-N3400 | | | | 1 | | | |
|
12 | STAY INSTRUMENT CENT | 68251-N3400 | | | | 1 | | | |
|
12 | STAY INSTRUMENT CENT | 68251-N4700 | | 7608 | | 1 | No | No | 68251-N3400 |
|
13 | ASSY FINISHER INSTRU | 68280-N3400 | | | | 1 | | | |
|
14 | ASSY BRACKET INSTRUM | 68284-N3400 | | | | 1 | | | |
|
15 | ASSY BRACKET INSTRUM | 68285-N3400 | | | | 1 | | | |
|
16 | SCREW MACHINE W/WASH | 08313-51226 | | | | 4 | | | |
|
17 | NUT SPRING M5 FIX FI | 08963-10510 | | | | 6 | | | |
|
18 | SCREW TAPPING FIX FI | 08520-51642 | | | | 4 | | | |
|
19 | SCREW TAPPING FIX 3 | 08310-51612 | | | | 2 | | | |
|
20 | SCREW TAPPING FIX PA | 08510-51212 | | | | 21 | | | |
|
21 | WASHER PLAIN FIX PAD | 74340-12161 | | | | 19 | | | |
|
22 | WASHER PLAIN FIX PAD | 08915-43610 | | | | 2 | | | |
|
23 | ASSY STAY INSTRUMENT | 68255-N3401 | | | | 2 | | | |
|
24 | SCREW MACHINE WITH W | 08313-51226 | | | | 4 | | | |
|
25 | PROTECTOR INSTRUMENT | 68258-N3400 | | | | 1 | | | |
|
26 | REINF INSTRUMENT PAN | 68260-N3400 | | | | 1 | | | |
|
27 | SCREW WITH WASHER FI | 08360-51226 | | | | 4 | | | |
|
28 | ASSY PLATE TRIP & IL | 68240-N3600 | | | | 1 | | | |
|
29 | SCREW MACHINE FIX PL | 08450-51210 | | | | 6 | Yes | Yes | 08450-51212 |
|
29 | SCREW MACHINE FIX PL | 08450-51212 | | | | 6 | | | |
|
30 | WASHER PLAIN FIX PLA | 74340-12161 | | | | 6 | | | |
|
31 | WASHER LOCK FIX PLAT | 08915-13510 | | | | 6 | | | |
|
32 | SCREW TAPPING FIX GA | 08530-51242 | | | | 4 | | | |
|
33 | SCREW TAPPING FIX GA | 08963-10510 | | | | 4 | | | |
|
34 | SPRING COMBINATION M | 68920-N3400 | | | | 3 | | | |
|
35 | SCREW MACHINE WITH W | 08360-51226 | | | | 3 | | | |
|
36 | MASK WARNING LAMP | 68282-N3400 | | | | 1 | | | |
|
37 | GARNISH INSTRUMENT | 68310-N3400 | | | | 1 | | | |
|
37 | GARNISH INSTRUMENT | 68310-N3600 | | | | 1 | | | |
|
38 | SPRING COMB METER SU | 68290-N3400 | | | | 3 | | | |
|
39 | SCREW W/SPW & PW | 08313-51226 | | | | 3 | | | |
|
40 | ASSY COVER INSTRUMEN | 68860-N4200 | | | | 1 | | | |
|
41 | ASSY COVER INSTRUMEN | 68870-N4700 | | | | 1 | | | |
|
42 | EXTENTION-INSTRUMENT | 68865-N4200 | | | | 1 | | | |
|
43 | SPRING LOCK INSTRUME | 68866-N4200 | | | | 2 | | | |
|
44 | BRACKET INST L/COVER | 68253-N4201 | | | | 1 | | | |
|
45 | BRACKET INST L/COVER | 68252-N4700 | | | | 1 | | | |
|
46 | SCREW MACHINE | 08310-61226 | | | | 4 | | | |
|
47 | NUT SPRING B | 08964-10510 | | | | 2 | Yes | Yes | 08964-10540 |
|
47 | NUT SPRING B | 08964-10540 | | | | 2 | | | |
|
48 | SCREW MACHINE | 08310-61614 | | | | 2 | | | |
|
49 | SCREW MACHINE | 08360-61626 | | | | 2 | | | |
|
50 | SCREW TAPPING | 08510-51697 | | | | 2 | | | |
|
51 | SCREW TAPPING | 08510-52597 | | | | 2 | | | |
|
52 | GROMMET COOLER HOSE | 27681-N3400 | | | 7611 | 1 | | | |
|
52 | GROMMET COOLER HOSE | 27683-73000 | | 7612 | | 1 | Yes | Yes | 27681-N3400 |
