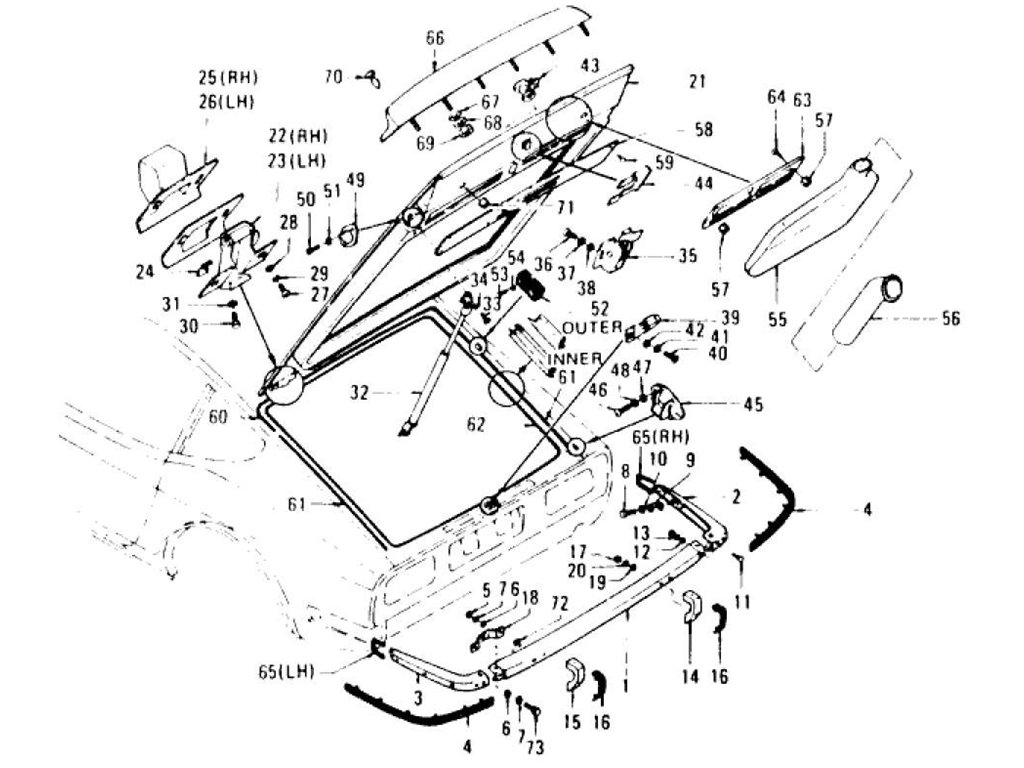

Tail Gate Panel, Trim, Lock & Rear Bumper Tail Gate Panel, Trim, Lock & Rear Bumper (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | BUMPER-ARM CENTER(DE | 85002-E4126 | | | | 1 | | | |
|
1 | BUMPER-REAR CENTER | 85002-N3300 | | 7207 | | 1 | Yes | Yes | 85002-E4126 |
|
1 | BUMPER-REAR CENTER ( | 85002-E4125 | | | | 1 | | | |
|
2 | BUMPER-REAR SIDE RH | 85003-E4125 | | | | 1 | | | |
|
2 | BUMPER-REAR SIDE RH( | 85003-E4126 | | | | 1 | | | |
|
3 | BUMPER-REAR SIDE LH | 85004-E4125 | | | | 1 | | | |
|
3 | BUMPER-REAR SIDE LH | 85004-E4126 | | | | 1 | | | |
|
4 | RUBBER-REAR BUMPER S | 85007-E4100 | | | | 2 | | | |
|
4 | RUBBER-REAR BUMPER S | 85007-N3300 | | 7207 | | 2 | No | No | 85007-E4100 |
|
5 | NUT-HEX | 08911-14010 | | | | 4 | | | |
|
6 | WASHER-PLAIN | 08915-44010 | | | | 8 | | | |
|
7 | WASHER-LOCK | 08915-14010 | | | | 8 | | | |
|
8 | BOLT-HEX | 08114-02010 | | | | 2 | | | |
|
9 | WASHER-PLAIN | 08915-44010 | | | | 2 | | | |
|
10 | WASHER-LOCK | 08915-14010 | | | | 2 | | | |
|
11 | BOLT-SPECIAL | 62663-18000 | | | | 4 | | | |
|
12 | WASHER-PLAIN | 00915-51510 | | | | 4 | | | |
|
13 | WASHER-LOCK | 00911-11410 | | | | 4 | | | |
|
14 | ASSY-OVER RIDER BUMP | 85050-E4600 | | | | 1 | | | |
|
14 | ASSY-OVER RIDER BUMP | 85050-N3300 | | 7207 | | 1 | No | No | 85050-E4600 |
|
15 | ASSY-OVER RIDER BUMP | 85051-E4600 | | | | 1 | | | |
|
15 | ASSY-OVER RIDER BUMP | 85051-N3300 | | 7207 | | 1 | No | No | 85051-E4600 |
|
16 | RUBBER-OVER RIDER BU | 85056-E4600 | | | | 2 | | | |
|
16 | RUBBER-OVER RIDER BU | 85056-N3300 | | 7207 | | 1 | No | No | 85056-E4600 |
|
16 | RUBBER-OVER RIDER BU | 85057-N3300 | | 7207 | | 1 | No | No | 85056-E4600 |
|
17 | NUT-HEX | 08911-14010 | | | | 2 | | | |
|
18 | BRACKET-REAR BUMPER | 85012-E4101 | | | | 2 | | | |
|
18 | BRACKET-REAR BUMPER | 85012-N3300 | | 7207 | | 2 | No | No | 85012-E4101 |
|
19 | WASHER-PLAIN | 08915-44010 | | | | 2 | | | |
|
20 | WASHER-LOCK | 08915-14010 | | | | 2 | | | |
|
21 | ASSY-PANEL TAIL GATE | 90101-E4100 | | | | 1 | | | |
|
21 | ASSY-PANEL TAIL GATE | 90101-E4600 | | | 7012 | 1 | Yes | Yes | 90101-E4100 |
|
21 | ASSY-PANEL TAIL GATE | 90101-E8300 | | 7101 | | 1 | No | No | 90101-E4600 |
|
22 | ASSY-TAIL GATE HINGE | 90400-E4100 | | | | 1 | | | |
|
23 | ASSY-TAIL GATE HINGE | 90401-E4100 | | | | 1 | | | |
|
24 | SHIM-ADJUSTING TAIL | 90407-E4100 | | | | 4 | | | |
|
25 | SEAL-COVER HINGE TAI | 90410-E4101 | | | 7301 | 1 | | | |
|
25 | SEAL-COVER HINGE TAI | 90410-N3000 | | 7302 | | 1 | No | No | 90410-E4101 |
|
26 | SEAL-COVER HING TAIL | 90411-N3000 | | 7302 | | 1 | No | No | 90411-E4101 |
|
26 | SEAL-COVER HINGE TRA | 90411-E4101 | | | 7301 | 1 | | | |
|
27 | SCREW-MACHINE M8 | 08460-83012 | | | | 4 | | | |
|
28 | WASHER-PLAIN M8 | 08915-43810 | | | | 4 | | | |
|
29 | WASHER-SPRING M8 | 08915-13810 | | | | 4 | | | |
|
30 | SCREW-MACHINE M8 | 08320-81212 | | | | 4 | | | |
|
31 | WASHER-TOOTH M8 | 08916-43810 | | | | 4 | | | |
|
32 | SET-TAIL GATE STAY | 90420-E4100 | | | | 1 | | | |
|
32 | SET-TAIL GATE STAY | 90420-E4600 | | | | 1 | Yes | Yes | 90420-E4100 |
|
32 | SET-TAIL GATE STAY | 90420-E4650 | | | | 1 | Yes | Yes | 90420-E4600 |
|
32 | SET-TAIL GATE STAY | 90420-E8250 | | | | 1 | Yes | Yes | 90420-E4650 |
|
32 | SET-TAIL GATE STAY | 90420-E8750 | | 7108 | | 1 | Yes | Yes | 90420-E8250 |
|
33 | SCREW-MACHINE | 08330-61610 | | | | 4 | | | |
|
34 | WASHER-LOCK SUNK TOO | 08916-43610 | | | | 4 | | | |
|
35 | ASSY-TAIL GATE LOCK | 90502-E4100 | | | 7005 | 1 | | | |
|
35 | ASSY-TAIL GATE LOCK | 90502-E4101 | | 7006 | | 1 | No | No | 90502-E4100 |
|
36 | SCREW-MACHINE M6 | 08360-61410 | | | | 2 | | | |
|
36 | SCREW-MACHINE M6 | 08360-61412 | | | | 2 | Yes | Yes | 08360-61410 |
|
37 | WASHER-SPRING M6 | 08915-13610 | | | | 2 | | | |
|
38 | WASHER-PLAIN M6 | 08915-43610 | | | | 2 | | | |
|
39 | ASSY-STRIKER TAIL GA | 90805-E4100 | | | | 1 | | | |
|
40 | SCREW-MACHINE M6 | 08360-61410 | | | | 2 | | | |
|
40 | SCREW-MACHINE M6 | 08360-61412 | | | | 2 | | | |
|
41 | WASHER-SPRING M6 | 08915-13610 | | | | 2 | | | |
|
42 | WASHER-PLAIN M6 | 08915-43610 | | | | 2 | | | |
|
43 | CYLINDER-LOCK TAIL G | 90560-E8200 | | | | 1 | | | |
|
43 | CYLINDER-LOCK TAIL G | 90560-E8201 | | | | 1 | Yes | Yes | 90560-E8200 |
|
44 | CLIP-CYLINDER | 96809-19700 | | | | 1 | | | |
|
45 | ASSY-DOWN STOPPER TA | 90522-E4100 | | | | 2 | | | |
|
46 | SCREW-MACHINE M5 | 08310-51610 | | | | 4 | | | |
|
46 | SCREW-MACHINE M5 | 08310-51612 | | | | 4 | Yes | Yes | 08310-51610 |
|
47 | WASHER-PLAIN M5 | 08915-43510 | | | | 4 | | | |
|
48 | WASHER-SPRING M5 | 08915-13510 | | | | 4 | | | |
|
49 | DOVE TAIL-TAIL GATE | 90524-E4100 | | | | 2 | | | |
|
50 | SCREW-MACHINE M5 | 08310-51012 | | | | 4 | | | |
|
51 | WASHER-SPRING M5 | 08915-13510 | | | | 4 | | | |
|
52 | BUMPER-RUBBER TAIL G | 90526-22900 | | | | 2 | | | |
|
53 | SCREW-MACHINE | 08310-61212 | | | | 4 | | | |
|
54 | WASHER-EXTERNAL TOOT | 08916-33610 | | | | 4 | | | |
|
55 | ASSY-DUCT REAR VENTI | 90820-E4100 | | | | 2 | | | |
|
56 | TUBE-DRAIN | 90828-E4101 | | | | 2 | | | |
|
57 | NUT-PUSH ON SPRING | 08961-43210 | | | | 4 | | | |
|
58 | ASSY-TRIM GATE BLUE | 90902-E4602 | | | 7012 | 1 | Yes | Yes | 90902-E4600 |
|
58 | ASSY-TRIM GATE BLUE | 90902-E8301 | | 7101 | | 1 | No | No | 90902-E4602 |
|
58 | ASSY-TRIM GATE | 90902-E8800 | | | 7206 | 1 | | | |
|
58 | ASSY-TRIM GATE | 90902-E8801 | | | 7206 | 1 | | | |
|
58 | ASSY-TRIM TAIL GATE | 90902-E4100 | | | | 1 | | | |
|
58 | ASSY-TRIM TAIL GATE | 90902-E4101 | | | | 1 | | | |
|
58 | ASSY-TRIM TAIL GATE | 90902-E4104 | | | 7012 | 1 | Yes | Yes | 90902-E4100 |
|
58 | ASSY-TRIM TAIL GATE | 90902-E4105 | | | 7012 | 1 | Yes | Yes | 90902-E4101 |
|
58 | ASSY-TRIM TAIL GATE | 90902-E4600 | | | | 1 | | | |
|
58 | ASSY-TRIM TAIL GATE | 90902-E8202 | | 7101 | 7206 | 1 | No | No | 90902-E4104 |
|
58 | ASSY-TRIM TAIL GATE | 90902-E8203 | | 7101 | 7206 | 1 | No | No | 90902-E4105 |
|
58 | ASSY-TRIM TAIL GATE | 90902-N3300 | | 7207 | | 1 | No | No | 90902-E8202 |
|
58 | ASSY-TRIM TAIL GATE | 90902-N3301 | | 7207 | | 1 | No | No | 90902-E8203 |
|
58 | ASSY-TRIM TAIL GATE | 90902-N3302 | | 7207 | | 1 | No | No | 90902-E8800 |
|
58 | ASSY-TRIM TAIL GATE | 90902-N3303 | | 7207 | | 1 | No | No | 90902-E8801 |
|
58 | ASSY-TRIM TAIL GATE | 90902-N3304 | | 7207 | | 1 | Yes | Yes | 90902-N3303 |
|
59 | RIVER-PLASTIC | 90909-E4100 | | | | 10 | | | |
|
59 | RIVER-PLASTIC | 90909-E4600 | | | | 10 | | | |
|
59 | RIVER-PLASTIC | 90909-E8800 | | | | 10 | | | |
|
59 | RIVER-PLASTIC | 90909-E8801 | | | | 10 | | | |
|
59 | RIVET-PLASTIC | 90909-E4101 | | | | 10 | | | |
|
60 | WEATHERSTRIP-TAIL GA | 76910-E4100 | | | | 1 | | | |
|
60 | WEATHERSTRIP-TAIL GA | 76910-N3000 | | | | 1 | | | |
|
61 | WEATHERSTRIP-TAIL GA | 76911-N3000 | | | | 2 | | | |
|
62 | WEATHERSTRIP-TAIL GA | 76912-E4100 | | | | 1 | | | |
|
62 | WEATHERSTRIP-TAIL GA | 76912-N4500 | | | | 1 | Yes | Yes | 76912-E4100 |
|
63 | GRILLE-REAR VENTILAT | 90950-E4101 | | | | 2 | | | |
|
64 | SCREW-TAPPING M4 | 08530-41620 | | | | 4 | | | |
|
65 | RUBBER-BASE BUMPER L | 62693-E4101 | | | | 1 | | | |
|
65 | RUBBER-BASE BUMPER R | 62692-E4101 | | | | 1 | | | |
|
66 | ASSY-AIR SPOILAR | 98100-N3525 | | | | 1 | Yes | Yes | 98100-N3300 |
|
66 | ASSY-AIR SPOILAR | 98100-E4600 | OP | | | 1 | | | |
|
66 | ASSY-AIR SPOILAR | 98100-E4601 | OP | | | 1 | Yes | Yes | 98100-E4600 |
|
66 | ASSY-AIR SPOILAR | 98100-N3300 | OP | | | 1 | Yes | Yes | 98100-E4601 |
|
66 | ASSY-AIR SPOILAR | 98100-N3528 | OP.AUTOMATIC | | | 1 | Yes | Yes | 98100-N3526 |
|
66 | ASSY-AIR SPOILAR | 98100-N3105 | OP.MANUAL | | | 1 | Yes | Yes | 98100-N3527 |
|
66 | ASSY-AIR SPOILAR | 98100-N3527 | OP.MANUAL | | | 1 | Yes | Yes | 98100-N3525 |
|
67 | WASHER-PLAIN M5 (AIR | 08915-43510 | OP | | 7211 | 6 | | | |
|
68 | WASHER-LOCK M5 (AIR | 08915-13510 | OP | | 7211 | 6 | | | |
|
69 | NUT-FLANGE M-6 (AIR | 01225-00021 | OP | 2201 | | 6 | | | 08911-10510 |
|
69 | NUT-HEX M5 (AIR SPOI | 08911-10510 | OP | | 7211 | 6 | | | |
|
70 | PLUG-NYLON (EMBLEM H | 77700-89922 | OP | | | 5 | | | |
|
71 | GROMMET | 27035-21000 | | | | 2 | | | |
|
72 | SHIM-REAR BUMPER | 85015-E4101 | | | | 4 | | | |
|
73 | BOLT-WITH WASHER | 08114-02510 | | | | 2 | | | |
