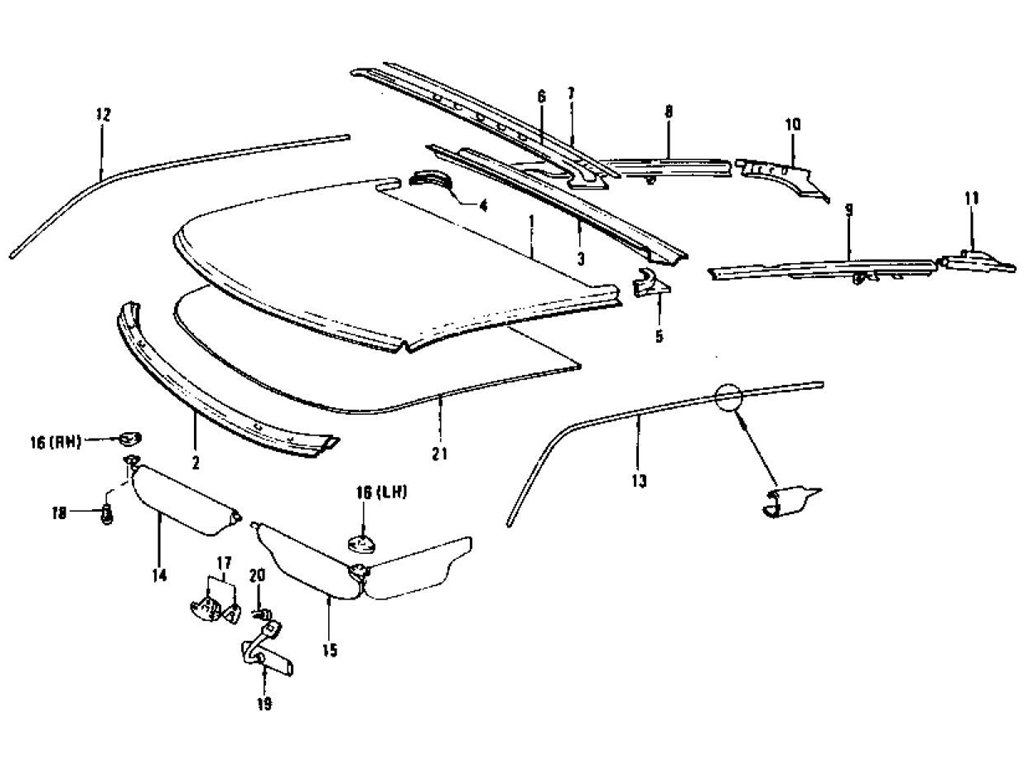

Roof Panel, Moulding Sunvisor & Head Lining Roof Panel, Moulding Sunvisor & Head Lining (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | PANEL-ROOF | 73102-E4100 | | | | 1 | | | |
|
2 | ASSY-RAIL ROOF FRONT | 73210-E4100 | | | | 1 | | | |
|
3 | ASSY-TAIL RAIL INNTE | 73261-N3000 | | | | 1 | | | |
|
4 | BRACE-REAR CORNER RH | 73232-E4100 | | | | 1 | | | |
|
5 | BRACE-REAR CORNER LH | 73233-E4100 | | | | 1 | | | |
|
6 | ASSY-TAIL RAIL MAIN | 73275-E4150 | | | 7301 | 1 | | | |
|
6 | ASSY-TAIL RAIL MAIN | 73275-N3050 | | 7302 | | 1 | No | No | 73275-E4150 |
|
7 | DRIP-TAIL RAIL | 73269-E4100 | | 7207 | | 1 | | | |
|
8 | ASSY-TAIL RAIL MAIN | 73270-E4150 | | | | 1 | | | |
|
9 | ASSY-TAIL RAIL MAIN | 73271-E4150 | | | | 1 | | | |
|
10 | ASSY-BRACE TAIL RAIL | 73274-E4100 | | | | 1 | | | |
|
11 | ASSY-BRACE TAIL RAIL | 73277-E4100 | | | | 1 | | | |
|
12 | MOULDING-ROOF DRIP L | 73812-N4425 | | | | 1 | Yes | Yes | 73813-N4500 |
|
12 | MOULDING-ROOF DRIP R | 73810-E4100 | | | | 1 | Yes | Yes | 73810-E4100 |
|
12 | MOULDING-ROOF DRIP R | 73812-N4500 | | | | 1 | Yes | Yes | 73812-N4500 |
|
13 | MOULDING-ROOF DRIP L | 73813-N4425 | | | | 1 | Yes | Yes | 73813-N4500 |
|
13 | MOULDING-ROOF DRIP L | 73813-N4500 | | | | 1 | Yes | Yes | 73811-E4100 |
|
13 | MOUNDING-ROOF DRIP L | 73811-E4100 | | | | 1 | | | |
|
14 | ASSY-SUNVISOR RH (WH | 96401-E8801 | | | 7206 | 1 | | | |
|
14 | ASSY-SUNVISOR RH (WH | 96401-N3303 | | 7207 | | 1 | No | No | 96401-E8801 |
|
14 | ASSY-SUNVISOR RH(BEI | 96401-N3304 | | 7207 | | 1 | Yes | Yes | 96401-N3303 |
|
14 | ASSY-SUNVISOR RH(BLU | 96401-E4600 | | | | 1 | | | |
|
14 | ASSY-SUNVISOR RH(BLU | 96401-E8300 | | | | 1 | Yes | Yes | 96401-E4600 |
|
14 | ASSY-SUNVISOR RH(BRO | 96401-N3301 | | 7207 | | 1 | No | No | 96401-E8201 |
|
14 | ASSY-SUNVISOR RH(RED | 96401-E8800 | | | 7206 | 1 | | | |
|
14 | ASSY-SUNVISOR(BROWN) | 96401-E4101 | | | | 1 | | | |
|
14 | ASSY-SUNVISOR(BROWN) | 96401-E8201 | | | 7206 | 1 | Yes | Yes | 96401-E4101 |
|
14 | ASSY-SUNVISOR(RED) | 96401-N3302 | | 7207 | | 1 | No | No | 96401-E8800 |
|
14 | ASY-SUNVISOR RH(BLAC | 96401-E4100 | | | | 1 | | | |
|
14 | ASY-SUNVISOR RH(BLAC | 96401-E8200 | | | 7206 | 1 | Yes | Yes | 96401-E4100 |
|
14 | ASY-SUNVISOR RH(BLAC | 96401-N3300 | | 7207 | | 1 | No | No | 96401-E8200 |
|
15 | ASSY-SUNVISOR | 96402-E8301 | | | | 1 | Yes | Yes | 96402-E4600 |
|
15 | ASSY-SUNVISOR LH (BE | 96402-N3304 | | 7207 | | 1 | Yes | Yes | 96402-N3303 |
|
15 | ASSY-SUNVISOR LH(BLA | 96402-E4100 | | | | 1 | | | |
|
15 | ASSY-SUNVISOR LH(BLA | 96402-E8202 | | | 7206 | 1 | Yes | Yes | 96402-E4100 |
|
15 | ASSY-SUNVISOR LH(BLA | 96402-N3300 | | 7207 | | 1 | No | No | 96402-E8202 |
|
15 | ASSY-SUNVISOR LH(BLU | 96402-E4600 | | | | 1 | | | |
|
15 | ASSY-SUNVISOR LH(BRO | 96402-E4101 | | | | 1 | | | |
|
15 | ASSY-SUNVISOR LH(BRO | 96402-E8201 | | | 7206 | 1 | Yes | Yes | 96402-E4101 |
|
15 | ASSY-SUNVISOR LH(BRO | 96402-N3301 | | 7207 | | 1 | No | No | 96402-E8201 |
|
15 | ASSY-SUNVISOR LH(RED | 96402-E8800 | | | 7206 | 1 | | | |
|
15 | ASSY-SUNVISOR LH(RED | 96402-N3302 | | 7207 | | 1 | No | No | 96402-E8800 |
|
15 | ASSY-SUNVISOR LH(WHI | 96402-E8801 | | | 7206 | 1 | | | |
|
15 | ASSY-SUNVISOR LH(WHI | 96402-N3303 | | 7207 | | 1 | No | No | 96402-E8801 |
|
16 | BACE-SUNVISOR LH | 96405-E4100 | | | | 1 | | | |
|
16 | BACE-SUNVISOR LH | 96405-E8700 | | | | 1 | Yes | Yes | 96405-E4100 |
|
16 | BACE-SUNVISOR RH | 96404-E4100 | | | | 1 | | | |
|
16 | BACE-SUNVISOR RH | 96404-E8700 | | | | 1 | Yes | Yes | 96404-E4100 |
|
17 | HOLDER-SUNVISOR | 96409-E4100 | | | | 1 | | | |
|
17 | HOLDER-SUNVISOR | 96409-E8700 | | | | 1 | Yes | Yes | 96409-E4100 |
|
18 | SCREW-MACHINE | 08330-51612 | | | | 6 | | | |
|
19 | ASSY-INSIDE BACK MIR | 96321-E4100 | AUTOMATIC | | | 1 | | | |
|
19 | ASSY-INSIDE BACK MIR | 96321-E4600 | MANUAL | | | 1 | | | |
|
19 | ASSY-INSIDE BACK MIR | 96321-E4601 | MANUAL | | | 1 | Yes | Yes | 96321-E4600 |
|
20 | SCREW-MACHINE | 08330-52012 | | | | 3 | | | |
|
21 | HEAD-LINING (BLUE) | 73905-E4600 | | | | 1 | | | |
|
21 | HEAD-LINING (BROWN) | 73905-N3301 | | 7207 | | 1 | No | No | 73905-E4101 |
|
21 | HEAD-LINING (RED) | 73905-E8800 | | | 7206 | 1 | | | |
|
21 | HEAD-LINING (RED) | 73905-N3302 | | 7207 | | 1 | Yes | Yes | 73905-E8800 |
|
21 | HEAD-LINING(BEIGE) | 73905-N3304 | | 7207 | | 1 | Yes | Yes | 73905-N3303 |
|
21 | HEAD-LINING(BLACK) | 73905-E4100 | | | | 1 | | | |
|
21 | HEAD-LINING(BLACK) | 73905-N3300 | | 7207 | | 1 | No | No | 73905-E4100 |
|
21 | HEAD-LINING(BROWN) | 73905-E4101 | | | | 1 | | | |
|
21 | HEAD-LINING(WHITE) | 73905-E8801 | | | 7206 | 1 | | | |
|
21 | HEAD-LINING(WHITE) | 73905-N3303 | | 7207 | | 1 | No | No | 73905-E8801 |
