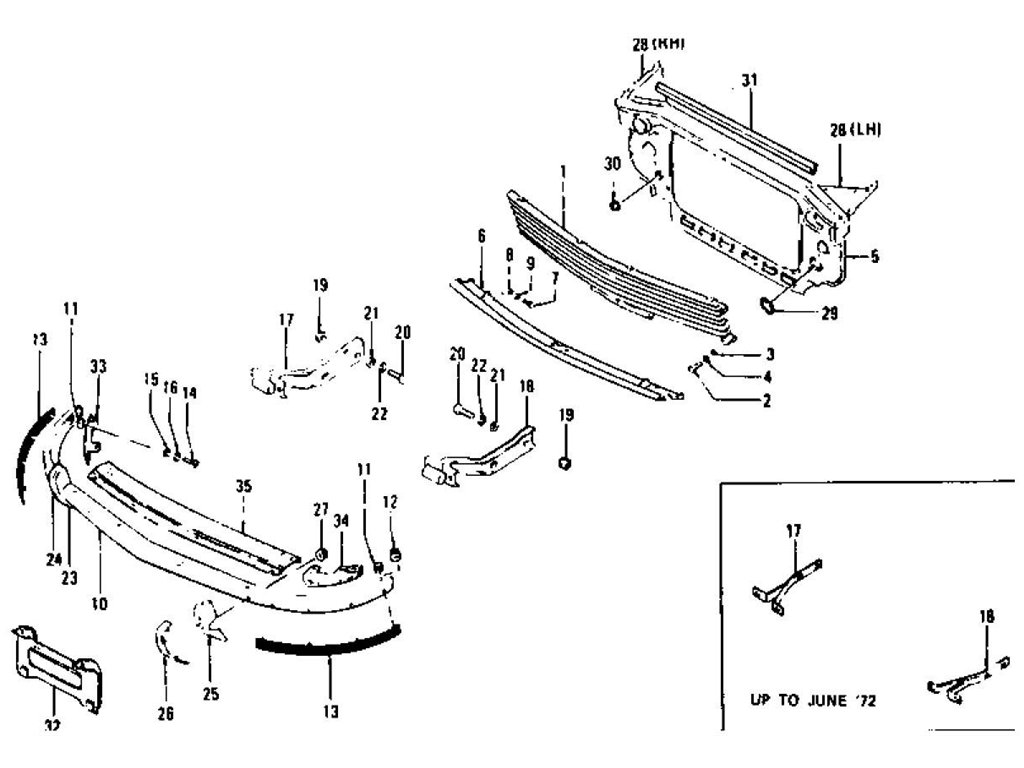

Radiator Grille & Bumper Radiator Grille, Front Bumper & Over Rider (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-GRILLE RADIATOR | 62300-E4600 | | | | 1 | | | |
|
1 | ASSY-GRILLE RADIATOR | 62300-E4601 | | | 7206 | 1 | Yes | Yes | 62300-E4600 |
|
1 | ASSY-GRILLE RADIATOR | 62300-N3300 | | 7207 | | 1 | No | No | 62300-E4601 |
|
1 | ASSY-GRILLE RADIATOR | 62300-N3301 | | 7207 | | 1 | Yes | Yes | 62300-N3300 |
|
2 | SCREW-MACHINE | 08310-51012 | | | | 5 | | | |
|
3 | WASHER-PLAIN | 08915-43510 | | | | 5 | | | |
|
4 | WASHER-SPRING | 08915-13510 | | | | 5 | | | |
|
5 | ASSY-RADIATOR CORE S | 62500-E4100 | | | 7209 | 1 | | | |
|
5 | ASSY-RADIATOR CORE S | 62500-N3000 | | 7210 | 7202 | 1 | Yes | Yes | 62500-E4100 |
|
5 | ASSY-RADIATOR CORE S | 62500-N3400 | | 7303 | | 1 | Yes | Yes | 62500-N3000 |
|
6 | ASSY-PANEL FRONT APR | 62600-E4100 | | | 7206 | 1 | | | |
|
6 | ASSY-PANEL FRONT APR | 62600-N3301 | | | | 1 | Yes | Yes | 62600-N3300 |
|
6 | ASSY-PANEL FRONT APR | 62600-N4210 | | | | 1 | Yes | Yes | 62600-N3301 |
|
6 | ASSY-PANEL FRONT APR | F2600-E4100 | | | 7206 | 1 | Yes | Yes | 62600-E4100 |
|
6 | ASSY-PANEL FRONT APR | 62600-N3300 | | 7207 | | 1 | No | No | 62600-E4100 |
|
7 | BOLT-HEX M6 | 08310-61410 | | | | 3 | | | |
|
7 | BOLT-HEX M6 | 08310-61412 | | | | 3 | Yes | Yes | 08310-61410 |
|
8 | WASHER-PRAIN | 08915-53610 | | | | 3 | | | |
|
9 | WASHER-LOCK | 08915-13610 | | | | 3 | | | |
|
10 | ASST-FRONT BUMPER | 62650-E4101 | | | 7005 | 1 | | | |
|
10 | ASSY-FRONT BUMPER | 62650-N3300 | USA | 7207 | | 1 | No | No | 62650-E4103 |
|
10 | ASSY-FRONT BUMPER (L | 62650-E4103 | | 7006 | | 1 | No | No | 62650-E4101 |
|
10 | ASSY-FRONT BUMPER (W | 62650-E4102 | OP | 7006 | | 1 | No | No | 62650-E4100 |
|
11 | SHIM-FRONT BUMPER SI | 62668-E4101 | | | | 2 | | | |
|
12 | NUT-FLANGE MS | 01221-00023 | | | | 8 | | | |
|
13 | RUBBER-BIMPER FRONT | 62690-E4100 | | | | 2 | | | |
|
13 | RUBBER-BIMPER FRONT | 62690-N3300 | | 7207 | | 2 | No | No | 62690-E4100 |
|
14 | SCREW-MACHINE | 01121-00033 | | | | 2 | | | |
|
14 | SCREW-MACHINE | 08110-61210 | | | | 2 | | | |
|
15 | WASHER-PLAIN | 08915-43610 | | | | 2 | | | |
|
16 | WASHER-SPRING | 08915-13610 | | | | 2 | | | |
|
17 | ASSY-STAY FRONT BUMP | 62656-E4100 | | | | 1 | | | |
|
17 | ASSY-STAY FRONT BUMP | 62656-E4101 | | | 7005 | 1 | Yes | Yes | 62656-E4100 |
|
17 | ASSY-STAY FRONT BUMP | 62656-E4102 | | 7006 | | 1 | Yes | Yes | 62656-E4101 |
|
17 | ASSY-STAY FRONT BUMP | 62652-N3300 | | 7207 | | 1 | No | No | 62656-E4102 |
|
18 | ASSY-STAY FRONT BUMP | 62657-E4100 | | | | 1 | | | |
|
18 | ASSY-STAY FRONT BUMP | 62657-E4101 | | | 7005 | 1 | | | |
|
18 | ASSY-STAY FRONT BUMP | 62657-E4102 | | 7006 | | 1 | No | No | 62657-E4101 |
|
18 | ASSY-STAY FRONT BUMP | 62653-N3300 | | 7207 | | 1 | No | No | 62657-E4102 |
|
19 | NUT-FLANGE M10 | 01221-00053 | | | | 4 | | | |
|
20 | BOLT-HEX | 08114-02010 | | | | 4 | | | |
|
21 | WASHER-PLAIN | 08915-44010 | | | | 4 | | | |
|
22 | WASHER-SPRING | 08915-14010 | | | | 4 | | | |
|
23 | ASSY-OVERRIDER BUMPE | 62663-E4600 | | | | 1 | | | |
|
23 | ASSY-OVERRIDER BUMPE | 62663-N3300 | | 7207 | | 1 | No | No | 62663-E4600 |
|
24 | RUBBER-OVERRIDER BUM | 62678-N3300 | | 7207 | | 1 | No | No | 62688-E4600 |
|
24 | RUBBER-OVERRIDER BUM | 62688-E4600 | OP | | | 1 | | | |
|
25 | ASSY-OVERRIDER BUMPE | 62664-E4600 | | | | 1 | | | |
|
25 | ASSY-OVERRIDER BUMPE | 62664-N3300 | | 7207 | | 1 | No | No | 62664-E4600 |
|
26 | RUBBER-OVERRIDER BUM | 62679-N3300 | | 7207 | | 1 | No | No | 62689-E4600 |
|
26 | RUBBER-OVERRIDER BUM | 62689-E4600 | OP | | | 1 | | | |
|
27 | NUT-FLANGE M10 | 01221-00053 | | | | 2 | | | |
|
28 | GUSSET-HOOD LEDGE FR | 64172-E4100 | | | | 1 | | | |
|
28 | GUSSET-HOOD LEDGE FR | 64173-E4100 | | | | 1 | | | |
|
29 | RUBBER-FLANGE COVER | 62807-N3000 | | 7207 | | 1 | | | |
|
30 | RUBBER-FLANGE COVER | 62808-N3000 | | 7207 | | 1 | | | |
|
31 | RUBBER-HEAT INSULATO | 62812-N3001 | | 7207 | | 1 | | | |
|
32 | ASSY-BRKT LICENCE PLATE | 62740-N3301 | CANADA | 7207 | | 1 | | | |
|
33 | ASSY-PACKING FRONT B | 62694-N3300 | | 7207 | | 1 | | | |
|
34 | ASSY-PACKING FRONT B | 62695-N3300 | | 7207 | | 1 | | | |
|
35 | EXTENSION-FRONT BUMP | 62669-N3300 | | 7207 | | 1 | | | |
