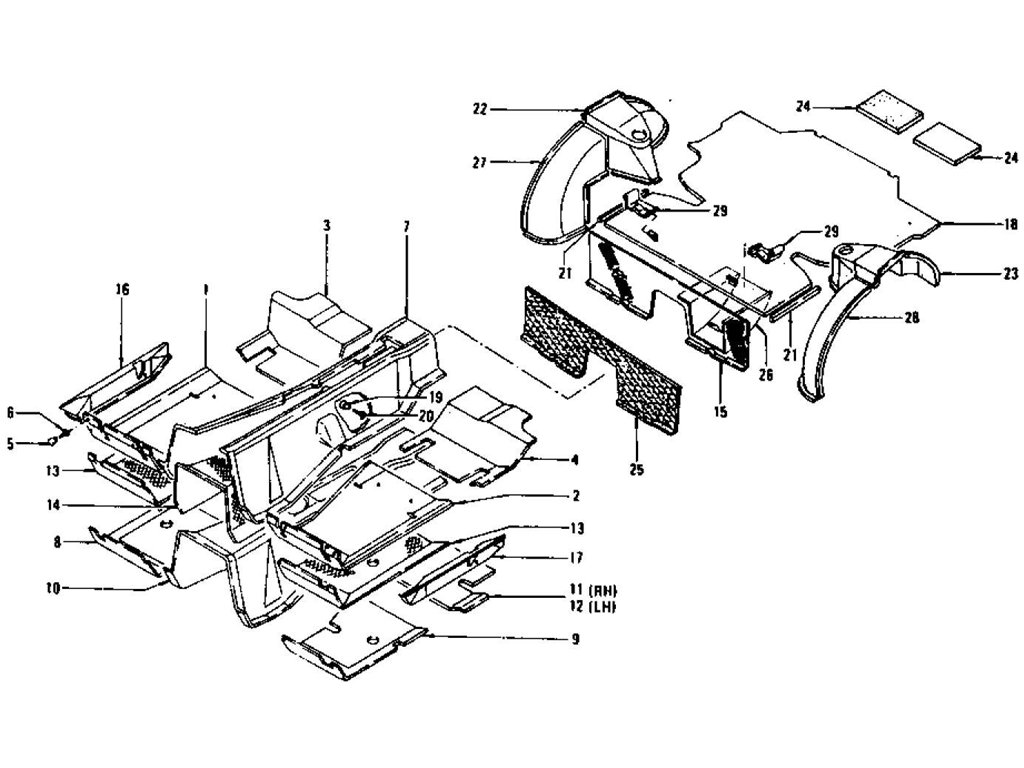

Floor Trim, Mat, Insulator & Rear Wheel House Trim Floor Trim, Mat, Insulator & Rear Wheel House Trim (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-TRIM FRONT FLOO | 74901-E4601 | | 5910 | 7108 | 1 | | | |
|
1 | ASSY-TRIM FRONT FLOO | 74901-E8800 | | 7109 | 7206 | 1 | No | No | 74901-E4601 |
|
1 | ASSY-TRIM FRONT FLOO | 74901-N3300 | | 7207 | 7301 | 1 | Yes | Yes | 74901-E8800 |
|
1 | ASSY-TRIM FRONT FLOO | 74901-N3302 | | 7302 | | 1 | No | No | 74901-N3300 |
|
1 | ASSY-TRIM FRONT FLOO | 74901-E4600 | OP | 5910 | | 1 | | | |
|
1 | ASSY-TRIM FRONT FLOO | 74901-E8801 | OP | 7111 | 7206 | 1 | | | |
|
1 | ASSY-TRIM FRONT FLOO | 74901-E8802 | OP | 7201 | | 1 | | | |
|
1 | ASSY-TRIM FRONT FLOO | 74901-N3302 | OP | 7207 | | 1 | No | No | 74901-E8801 |
|
2 | ASSY-TRIM FRONT FLOO | 74902-E4601 | | | 7108 | 1 | | | |
|
2 | ASSY-TRIM FRONT FLOO | 74902-E8800 | | 7109 | 7206 | 1 | No | No | 74902-E4600 |
|
2 | ASSY-TRIM FRONT FLOO | 74902-N3300 | | 7207 | 7301 | 1 | Yes | Yes | 74902-E8800 |
|
2 | ASSY-TRIM FRONT FLOO | 74902-N3304 | | 7302 | | 1 | No | No | 74902-N3300 |
|
2 | ASSY-TRIM FRONT FLOO | 74902-E4600 | OP | | 7301 | 1 | | | |
|
2 | ASSY-TRIM FRONT FLOO | 74902-N3306 | OP | 7302 | | 1 | No | No | 74902-E4600 |
|
3 | ASSY-TRIM REAR FLOOR | 74907-E4601 | | | 7012 | 1 | | | |
|
3 | ASSY-TRIM REAR FLOOR | 74907-E8800 | | | | 1 | Yes | Yes | 74907-E8300 |
|
3 | ASSY-TRIM REAR FLOOR | 74907-E8802 | | | | 1 | | | |
|
3 | ASSY-TRIM REAR FLOOR | 74907-E8300 | | 7101 | | 1 | No | No | 74907-E4601 |
|
3 | ASSY-TRIM REAR FLOOR | 74907-N3300 | | 7207 | | 1 | No | No | 74907-E8802 |
|
3 | ASSY-TRIM REAR FLOOR | 74907-E4600 | OP | | 7012 | 1 | | | |
|
3 | ASSY-TRIM REAR FLOOR | 74907-E8201 | OP | 7101 | | 1 | No | No | 74907-E4600 |
|
4 | ASSY-TRIM REAR FLOOR | 74908-E4601 | | | 7012 | 1 | | | |
|
4 | ASSY-TRIM REAR FLOOR | 74908-E8800 | | | | 1 | Yes | Yes | 74908-E8300 |
|
4 | ASSY-TRIM REAR FLOOR | 74908-E8300 | | 7101 | | 1 | No | No | 74908-E4601 |
|
4 | ASSY-TRIM REAR FLOOR | 74908-N3300 | | 7207 | | 1 | No | No | 74908-E8800 |
|
4 | ASSY-TRIM REAR FLOOR | 74908-E4600 | OP | | 7012 | 1 | | | |
|
4 | ASSY-TRIM REAR FLOOR | 74908-E8201 | OP | 7101 | | 1 | No | No | 74908-E4600 |
|
5 | FASTENER-MALE | 97756-12900 | | 7002 | | 14 | | | |
|
5 | FASTENER-MALE | 97756-E4101 | | 7003 | | 14 | No | No | 97756-12900 |
|
6 | CREW-TAPPING M3.5 | 08520-71212 | | | | 14 | | | |
|
7 | MAT-TUNNEL FRONT FLO | 74909-E4600 | | 5910 | 7206 | 1 | | | |
|
7 | MAT-TUNNEL FRONT FLO | 74909-E8800 | | 7109 | 7206 | 1 | | | |
|
7 | MAT-TUNNEL FRONT FLO | 74909-E8801 | | 7109 | 7206 | 1 | | | |
|
7 | MAT-TUNNEL FRONT FLO | 74909-N3300 | | 7207 | | 1 | No | No | 74909-E4600 |
|
7 | MAT-TUNNEL FRONT FLO | 74909-N3302 | | 7207 | | 1 | No | No | 74909-E8800 |
|
7 | MAT-TUNNEL FRONT FLO | 74909-N3303 | | 7207 | | 1 | No | No | 74909-E8801 |
|
7 | MAT-TUNNEL FRONT FLO | 74909-N3304 | | 7207 | | 1 | | | |
|
7 | MAT-TUNNEL FRONT FLO | 74909-N3301 | /MMI | | | 1 | | | |
|
8 | INSULATOR-FRONT FLOO | 74910-E4100 | | | | 1 | | | |
|
8 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74910-E4100 |
|
8 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74910-E4125 |
|
8 | SET-INSULATOR REAR F | 74910-E4125 | | | | 1 | | | |
|
9 | INSULATOR-FRONT FLOO | 74911-E4100 | | | | 1 | | | |
|
9 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74911-E4100 |
|
10 | INSULATOR-FRONT FLOO | 74912-E4100 | | | | 1 | | | |
|
10 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74912-E4100 |
|
11 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74913-E4100 |
|
11 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74913-E4125 |
|
11 | INSULATOR-FRONT REAR | 74913-E4100 | | | | 1 | | | |
|
11 | SET-INSULATOR FRONT | 74913-E4125 | | | | 1 | | | |
|
12 | INSULATOR-FRONT FLOO | 74914-E4100 | | | | 1 | | | |
|
12 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74914-E4100 |
|
12 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74915-E4625 |
|
12 | INSULATOR-FRONT FLOO | G5930-89902 | | | | 0 | Yes | Yes | 74915-E8200 |
|
12 | SET-INSULATOR REAR F | 74915-E4625 | | | 7012 | 1 | | | |
|
12 | SET-INSULATOR REAR F | 74915-E8200 | | 7101 | | 1 | No | No | 74915-E4625 |
|
13 | JUTE-FRONT FLOOR FRO | 74920-E4100 | | | | 1 | | | |
|
13 | SET-INSULATOR FRONT | 74920-E4125 | | | | 1 | | | |
|
14 | JUTE-FRONT FLOOR TUN | 74925-E4100 | | | | 1 | | | |
|
14 | SET-JUTE FRONT FLOOR | 74927-E4125 | | | 7012 | 1 | | | |
|
14 | SET-JUTE FRONT FLOOR | 74927-E8200 | | 7101 | | 1 | No | No | 74927-E4125 |
|
15 | JUTE-FRONT FLOOR REA | 74922-E4100 | | | 7012 | 1 | | | |
|
15 | JUTE-FRONT FLOOR REA | 74922-E8200 | | 7101 | | 1 | No | No | 74922-E4100 |
|
16 | TRIM-SILL INNER RH B | 74930-E4601 | | | 7206 | 1 | | | |
|
16 | TRIM-SILL INNER RH B | 74930-E4100 | | 7207 | | 1 | No | No | 74930-E4601 |
|
16 | TRIM-SILL INNER RH B | 74930-E4100 | OP | | | 1 | | | |
|
17 | TRIM-SILL INNER LH B | 74931-E4601 | | | 7206 | 1 | | | |
|
17 | TRIM-SILL INNER LH B | 74931-E4600 | | 7207 | | 1 | No | No | 74931-E4601 |
|
17 | TRIM-SILL INNER LH B | 74931-E4100 | OP | | | 1 | | | |
|
18 | ASSY-MAT REAR FLOOR | 74950-E4600 | | | 7012 | 1 | | | |
|
18 | ASSY-MAT REAR FLOOR | 74950-E8800 | | | | 1 | Yes | Yes | 74950-E8300 |
|
18 | ASSY-MAT REAR FLOOR | 74950-N3300 | | 7207 | | 1 | No | No | 74950-E8800 |
|
18 | ASSY-MAT REAR FLOOR | 74950-E4100 | OP | | 7012 | 1 | | | |
|
18 | ASSY-MAT REAR FLOOR | 74950-E8201 | OP | 7101 | | 1 | No | No | 74950-E4100 |
|
18 | ASSY-MATREAR FLOOR B | 74950-E8300 | | 7101 | | 1 | No | No | 74950-E4600 |
|
19 | FASTENER-MALE | 97756-12900 | | | 7002 | 4 | | | |
|
19 | FASTENER-MALE | 97756-E4101 | | 7003 | | 4 | No | No | 97756-12900 |
|
20 | SCREW-TAPPING | 08530-71210 | | | | 4 | | | |
|
21 | RUBBER-SEAL REAR FLO | 74945-E4100 | | | | 2 | | | |
|
22 | TRIM-REAR WHEEL HOUS | 76972-E4100 | | | 7206 | 1 | | | |
|
22 | TRIM-REAR WHEEL HOUS | 76972-E4101 | | | 7206 | 1 | | | |
|
22 | TRIM-REAR WHEEL HOUS | 76972-E4102 | | | | 1 | | | |
|
22 | TRIM-REAR WHEEL HOUS | 76972-E8800 | | | 7206 | 1 | | | |
|
22 | TRIM-REAR WHEEL HOUS | 76972-E8801 | | | 7206 | 1 | | | |
|
22 | TRIM-REAR WHEEL HOUS | 76972-N3300 | | 7207 | | 1 | Yes | Yes | 76972-E4100 |
|
22 | TRIM-REAR WHEEL HOUS | 76972-N3301 | | 7207 | | 1 | Yes | Yes | 76972-E4101 |
|
22 | TRIM-REAR WHEEL HOUS | 76972-N3302 | | 7207 | | 1 | Yes | Yes | 76972-E8800 |
|
22 | TRIM-REAR WHEEL HOUS | 76972-N3303 | | 7207 | | 1 | No | No | 76972-E8801 |
|
22 | TRIM-REAR WHEEL HOUS | 76972-N3304 | | 7207 | | 1 | Yes | Yes | 76972-N3303 |
|
23 | TRIM-REAR WHEEL HOUS | 76973-E4100 | | | 7206 | 1 | | | |
|
23 | TRIM-REAR WHEEL HOUS | 76973-E4101 | | | 7206 | 1 | | | |
|
23 | TRIM-REAR WHEEL HOUS | 76973-E4102 | | | | 1 | | | |
|
23 | TRIM-REAR WHEEL HOUS | 76973-E8800 | | | 7206 | 1 | | | |
|
23 | TRIM-REAR WHEEL HOUS | 76973-E8801 | | | 7206 | 1 | | | |
|
23 | TRIM-REAR WHEEL HOUS | 76973-N3303 | | | | 1 | | | |
|
23 | TRIM-REAR WHEEL HOUS | 76973-N3300 | | 7207 | | 1 | Yes | Yes | 76973-E4100 |
|
23 | TRIM-REAR WHEEL HOUS | 76973-N3301 | | 7207 | | 1 | Yes | Yes | 76973-E4101 |
|
23 | TRIM-REAR WHEEL HOUS | 76973-N3302 | | 7207 | | 1 | Yes | Yes | 76973-E8800 |
|
23 | TRIM-REAR WHEEL HOUS | 76973-N3304 | | 7207 | | 1 | Yes | Yes | 76973-N3303 |
|
24 | ASSY-FASTENER REAR F | 74956-E4100 | | | | 2 | | | |
|
25 | TRIM-RISER REAR FLOO | 74992-N3300 | | 7207 | | 1 | | | |
|
25 | TRIM-RISER REAR FLOO | 74992-N3301 | | 7207 | | 1 | | | |
|
25 | TRIM-RISER REAR FLOO | 74992-N3302 | | 7207 | | 1 | | | |
|
25 | TRIM-RISER REAR FLOO | 74992-N3304 | | 7207 | | 1 | | | |
|
26 | TRIM-REAR TOOL BOX | 74948-N3300 | | 7207 | | 2 | No | No | 74949-E8200 |
|
26 | TRIM-TOOL BOX | 74949-E8200 | | | 7206 | 1 | | | |
|
26 | TRIM-TOOL BOX | 74948-E8200 | | | 7206 | 1 | | | |
|
27 | TRIM-REAR WHEEL HOUS | 76970-E4100 | | | 7206 | 1 | | | |
|
27 | TRIM-REAR WHEEL HOUS | 76970-E4101 | | | 7206 | 1 | | | |
|
27 | TRIM-REAR WHEEL HOUS | 76970-E4102 | | | | 1 | | | |
|
27 | TRIM-REAR WHEEL HOUS | 76970-E8800 | | | 7206 | 1 | | | |
|
27 | TRIM-REAR WHEEL HOUS | 76970-E8801 | | | 7206 | 1 | | | |
|
27 | TRIM-REAR WHEEL HOUS | 76970-N3300 | | 7207 | | 1 | No | No | 76970-E4100 |
|
27 | TRIM-REAR WHEEL HOUS | 76970-N3301 | | 7207 | | 1 | No | No | 76970-E4101 |
|
27 | TRIM-REAR WHEEL HOUS | 76970-N3302 | | 7207 | | 1 | No | No | 76970-E8800 |
|
27 | TRIM-REAR WHEEL HOUS | 76970-N3303 | | 7207 | | 1 | No | No | 76970-E8801 |
|
27 | TRIM-REAR WHEEL HOUS | 76970-N3304 | | 7207 | | 1 | Yes | Yes | 76970-N3303 |
|
28 | TRIM-REAR WHEEL HOUS | 76971-E4100 | | | 7206 | 1 | | | |
|
28 | TRIM-REAR WHEEL HOUS | 76971-E4101 | | | 7206 | 1 | | | |
|
28 | TRIM-REAR WHEEL HOUS | 76971-E4102 | | | | 1 | | | |
|
28 | TRIM-REAR WHEEL HOUS | 76971-E8800 | | | 7206 | 1 | | | |
|
28 | TRIM-REAR WHEEL HOUS | 76971-E8801 | | | 7206 | 1 | | | |
|
28 | TRIM-REAR WHEEL HOUS | 76971-N3300 | | 7207 | | 1 | No | No | 74970-E4100 |
|
28 | TRIM-REAR WHEEL HOUS | 76971-N3301 | | 7207 | | 1 | No | No | 74971-E4101 |
|
28 | TRIM-REAR WHEEL HOUS | 76971-N3302 | | 7207 | | 1 | No | No | 76971-E8800 |
|
28 | TRIM-REAR WHEEL HOUS | 76971-N3303 | | 7207 | | 1 | No | No | 76971-E8801 |
|
28 | TRIM-REAR WHEEL HOUS | 76971-N3304 | | 7207 | | 1 | Yes | Yes | 76971-N3303 |
|
29 | CLIP-SPRING FRONT FL | 74995-E4100 | | | | 4 | | | |
