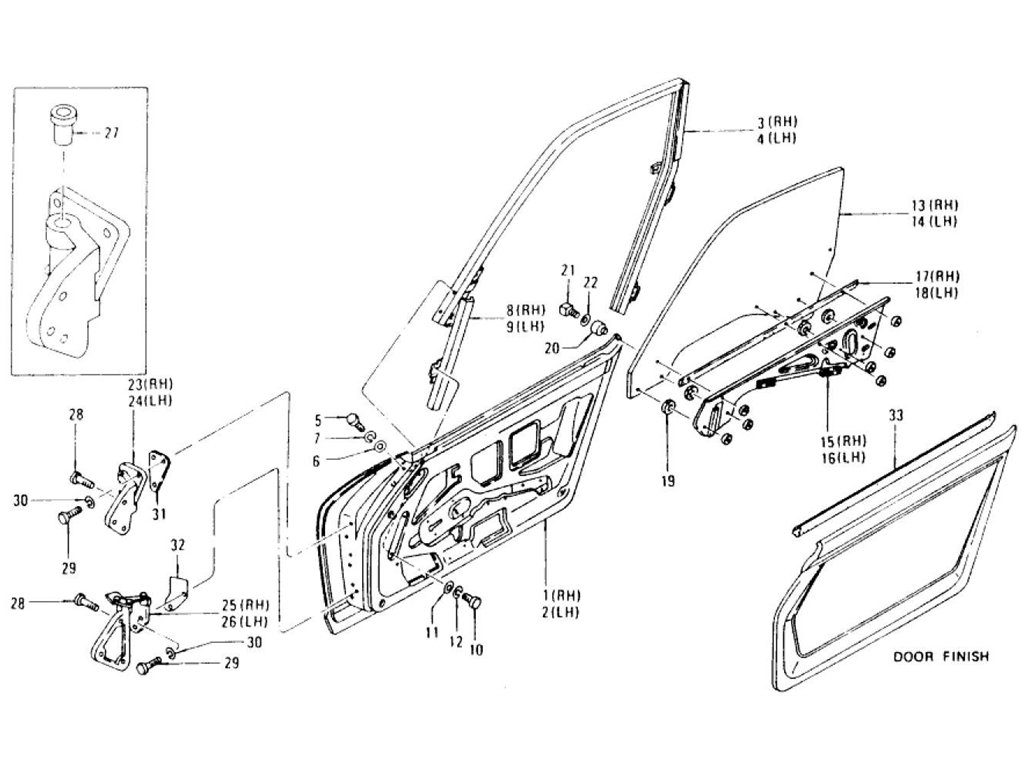

Door Panel, Glass & Hinge Door Panel, Glass & Hinge (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-PANEL DOOR RH | 80100-E4100 | | | 7109 | 1 | | | |
|
1 | ASSY-PANEL DOOR RH | 80100-E4125 | | 7110 | 7206 | 1 | | | 80100-E4100 |
|
1 | ASSY-PANEL DOOR RH | 80100-N3025 | | 7207 | | 1 | Yes | Yes | 80100-E4125 |
|
1 | ASSY-PANEL DOOR RH | 80100-N3325 | | 7212 | | 1 | Yes | Yes | 80100-N3025 |
|
2 | ASSY-PANEL DOOR LH | 80101-E4100 | | | 7109 | 1 | | | |
|
2 | ASSY-PANEL DOOR LH | 80101-E4125 | | 7110 | 7206 | 1 | | | 80101-E4100 |
|
2 | ASSY-PANEL DOOR LH | 80101-N3025 | | 7207 | | 1 | Yes | Yes | 80101-E4125 |
|
2 | ASSY-PANEL DOOR LH | 80101-N3325 | | 7212 | | 1 | Yes | Yes | 80101-N3025 |
|
3 | ASSY-SASH DOOR RH | 80200-E4100 | | | | 1 | | | |
|
4 | ASSY-SASH DOOR LH | 80201-E4100 | | | | 1 | | | |
|
5 | BOLT-HEXAGON M6X1.0 | 08110-61010 | | | | 16 | | | |
|
6 | WASHER-PLAIN M6 | 08915-43610 | | | | 16 | | | |
|
7 | WASHER-SPRING M6 | 08915-13610 | | | | 16 | | | |
|
8 | ASSY-SASH DOOR FRONT | 80210-E4100 | | | 7307 | 1 | | | |
|
8 | ASSY-SASH DOOR FRONT | 80210-N3400 | | 7308 | | 1 | No | No | 80210-E4100 |
|
9 | ASSY-SASH DOOR FRONT | 80211-E4100 | | | 7307 | 1 | | | |
|
9 | ASSY-SASH DOOR FRONT | 80211-N3400 | | 7308 | | 1 | No | No | 80211-E4100 |
|
10 | SCREW-MACHINE M6X1.0 | 08310-61010 | | | | 4 | | | |
|
10 | SCREW-MACHINE M6X1.0 | 08310-61012 | | | | 4 | Yes | Yes | 08310-61010 |
|
11 | WASHER-PLAIN M6 | 08915-43610 | | | | 4 | | | |
|
12 | WASHER-SPRING M6 | 08915-13610 | | | | 4 | | | |
|
13 | GLASS-DOOR WINDOW RH | 80311-E4100 | | | | 1 | | | |
|
13 | GLASS-DOOR WINDOW RH | 80311-E4101 | | | | 1 | Yes | Yes | 80311-E4100 |
|
14 | GLASS-DOOR WINDOW LH | 80312-E4100 | | | | 1 | | | |
|
14 | GLASS-DOOR WINDOW LH | 80312-E4101 | | | | 1 | Yes | Yes | 80312-E4100 |
|
15 | ASSY-GLASS DOOR BOTT | 80302-E4100 | | | | 1 | | | |
|
16 | ASSY-GLASS DOOR BOTT | 80303-E4100 | | | | 1 | | | |
|
17 | RUBBER-GLAZING DOOR | 80315-E4100 | | | | 1 | | | |
|
18 | RUBBER-GLAZING DOOR | 80316-E4100 | | | | 1 | | | |
|
19 | PACKING-GLASS DOOR W | 80317-E4100 | | | | 8 | | | |
|
20 | FASTENER-GLASS DOOR | 80318-E4100 | | | | 14 | | | |
|
21 | BOLT-SQUARE M5 | 08360-51610 | | | | 14 | | | |
|
21 | BOLT-SQUARE M5 | 08360-51612 | | | | 14 | Yes | Yes | 08360-51610 |
|
22 | WASHER-SPECIAL | 96830-A0800 | | | | 14 | | | |
|
23 | ASSY-HINGE DOOR UPPE | 80400-E4100 | | | 7206 | 1 | | | |
|
23 | ASSY-HINGE DOOR UPPE | 80400-N3000 | | 7207 | | 1 | No | No | 80400-E4100 |
|
24 | ASSY-HINGE DOOR UPPE | 80401-E4100 | | | 7206 | 1 | | | |
|
24 | ASSY-HINGE DOOR UPPE | 80401-N3000 | | 7207 | | 1 | No | No | 80401-E4100 |
|
25 | ASSY-HINGE DOOR LOWE | 80420-E4100 | | | | 1 | | | |
|
25 | ASSY-HINGE DOOR LOWE | 80420-E8200 | | | | 1 | Yes | Yes | 80420-E4100 |
|
26 | ASSY-HINGE DOOR LOWE | 80421-E4100 | | | | 1 | | | |
|
26 | ASSY-HINGE DOOR LOWE | 80421-E8200 | | | | 1 | Yes | Yes | 80421-E4100 |
|
27 | BUSH-DOOR HINGE | H0400-E4101 | | | | 8 | | | |
|
28 | BOLT-SPECIAL M8X1.25 | 77720-89910 | | | | 5 | | | |
|
29 | BOLT-HEX POINTED HEA | 08140-82010 | | | | 5 | | | |
|
30 | SPRING-LCOK WASHER M | 08915-13810 | | | | 5 | | | |
|
31 | SHIM-DOOR HINGE UPPE | 80405-E4100 | | | | 2 | | | |
|
31 | SHIM-DOOR HINGE UPPE | 80406-E4100 | | | | 2 | | | |
|
32 | SHIM-DOOR HINGE LOWE | 80425-E4100 | | | | 2 | | | |
|
32 | SHIM-DOOR HINGE LOWE | 80426-E4100 | | | | 2 | | | |
|
33 | WEATHERSTRIP-DOOR RH | 80845-E4100 | | | | 1 | | | |
|
33 | WEATHERSTRIP-DOOR RH | 80846-E4100 | | | | 1 | | | |
