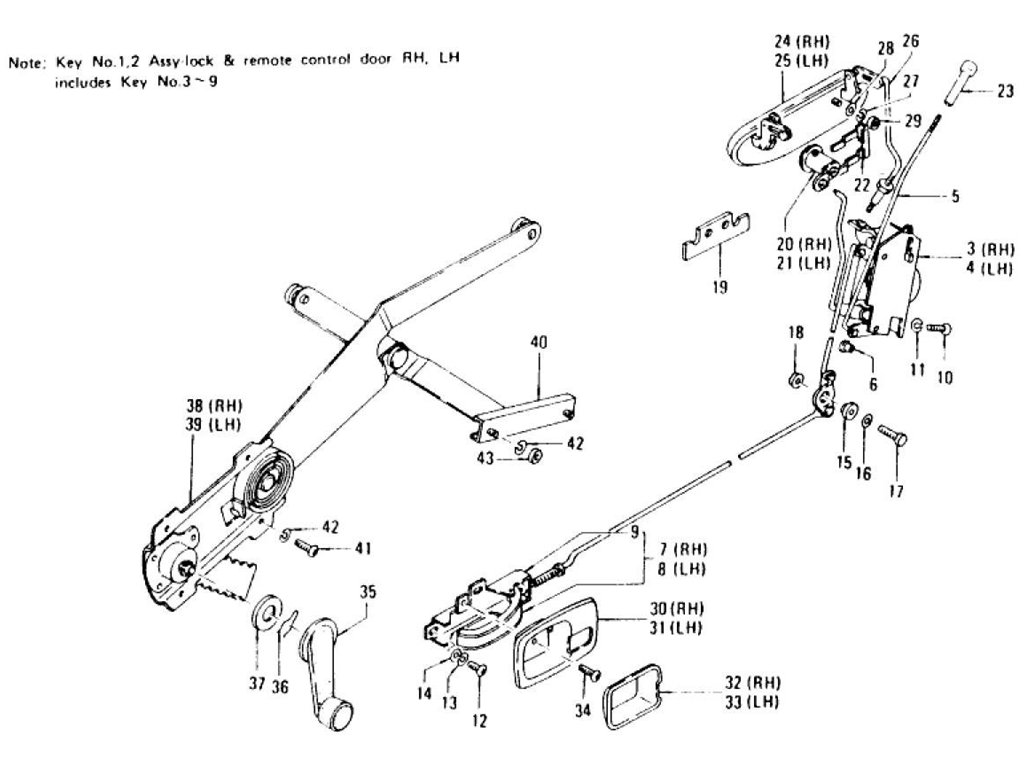

Door Lock, Window Regulator & Handle Door Lock, Window Regulator & Door Handle (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-LOCK & REMOTE C | 80500-E4100 | | | 7206 | 1 | | | |
|
2 | ASSY-LOCK & REMOTE C | 80501-E4100 | | | 7206 | 1 | | | |
|
3 | ASSY-LOCK DOOR RH | 80500-E4100 | | | | 1 | Yes | Yes | 80502-E4100 |
|
3 | ASSY-LOCK DOOR RH | 80502-E4100 | | | | 1 | | | |
|
4 | ASSY-LOCK DOOR LH | 80501-E4100 | | | | 1 | Yes | Yes | 80503-E4100 |
|
4 | ASSY-LOCK DOOR LH | 80503-E4100 | | | | 1 | | | |
|
5 | ROD-KNOB DOOR LOCK | 80510-E4100 | | | | 1 | | | |
|
6 | HOLDER-ROD KNOB | H0510-21001 | | | | 2 | | | |
|
7 | ASSY-REMOTE CONTROL | 80504-E4100 | | | 7206 | 1 | | | |
|
7 | ASSY-REMOTE CONTROL | 80504-N3000 | | 7207 | | 1 | No | No | 80504-E4100 |
|
8 | ASSY-REMOTE CONTROL | 80505-E4100 | | | 7206 | 1 | | | |
|
8 | ASSY-REMOTE CONTROL | 80505-N3000 | | 7207 | | 1 | No | No | 80505-E4100 |
|
9 | ASSY-INSIDE HANDLE D | 80520-E4100 | OP | | | 1 | | | |
|
10 | SCREW-MACHINE M6X1.0 | 08320-61010 | | | | 6 | | | |
|
10 | SCREW-MACHINE M6X1.0 | 08320-61012 | | | | 6 | Yes | Yes | 08320-61010 |
|
10 | SCREW-MACHINE M6X1.3 | 08320-61219 | | | | 6 | | | |
|
11 | WASHER-LOCK FIX LOCK | 08916-43610 | | | | 6 | | | |
|
12 | SCREW-MACHINE M6X1.0 | 08310-61010 | | | | 4 | | | |
|
12 | SCREW-MACHINE M6X1.0 | 08310-61012 | | | | 4 | Yes | Yes | 08310-61010 |
|
12 | SCREW-MACHINE M6X1.3 | 08310-61226 | | | | 4 | | | |
|
13 | WASHER-SPRING FIX RE | 08915-13610 | | | | 4 | | | |
|
14 | WASHER-PLAIN FIX REM | 08915-43610 | | | | 4 | | | |
|
15 | COLLAR-BELL CRANK | 80515-E4100 | | | 7206 | 4 | Yes | Yes | 82515-78500 |
|
15 | COLLAR-BELL CRANK | 82515-78500 | | | | 4 | | | |
|
15 | COLLAR-BELL CRANK | 80515-N3000 | | 7207 | | 4 | No | No | 80515-E4100 |
|
16 | WASHER-BELL CRANK | 82516-78500 | | | | 2 | | | |
|
17 | BOLT-HEX FLANGE HEAD | 08160-61210 | | | | 2 | | | |
|
17 | BOLT-HEX FLANGE HEAD | 08363-61214 | | | | 2 | | | |
|
18 | NUT-FLANGE BELL CRAN | 01221-00033 | | | | 2 | | | |
|
19 | NUT-FLANGE BELL CRAN | 80680-B0700 | | | | 2 | | | |
|
20 | CYLINDER-LOCK DOOR R | 80600-E8200 | | | | 1 | | | |
|
20 | CYLINDER-LOCK DOOR R | 80600-E8201 | | | | 1 | | | 80600-E8200 |
|
21 | CYLINDER-LOCK DOOR L | 80601-E8200 | | | | 1 | | | |
|
21 | CYLINDER-LOCK DOOR L | 80601-E8201 | | | | 1 | | | 80601-E8200 |
|
22 | CLIP-RETAINING CYLIN | 80590-10601 | | | | 2 | | | |
|
23 | KNOB-DOOR LOCK | 80595-21003 | | | | 2 | | | |
|
23 | KNOB-DOOR LOCK | 80595-N1600 | | | | 2 | Yes | Yes | 80595-21003 |
|
24 | ASSY-HANDLE DOOR OUT | 80605-E4100 | | | | 1 | | | |
|
25 | ASSY-HANDLE DOOR OUT | 80606-E4100 | | | | 1 | | | |
|
26 | ASSY-ROD HANDLE DOOR | 80698-E4120 | | | | 1 | | | |
|
26 | ASSY-ROR HANDLE DOOR | 80699-E4120 | | | | 1 | | | |
|
27 | WASHER-SPRING | 08915-13510 | | | | 4 | | | |
|
28 | WASHER-PLAIN | 08915-43510 | | | | 4 | | | |
|
29 | NUT-HEX | 08911-10510 | | | | 4 | | | |
|
30 | ESCUTCHEON-REMOTE CO | 80512-E4100 | | | | 1 | | | |
|
31 | ESCUTCHEON-REMOTE CO | 80513-E4100 | | | | 1 | | | |
|
32 | COVER-ESCUTCHEON RH | 80517-E0101 | | | | 1 | | | |
|
33 | COVER-ESCUTCHEON LH | 80518-E0101 | | | | 1 | | | |
|
34 | SCREW-MACHINE | 08320-40812 | | | | 2 | | | |
|
35 | ASSY-HANDLE DOOR WIN | 80760-A0600 | | | | 2 | | | |
|
36 | 54229-0201P | 80673-A0600 | | | | 2 | | | |
|
37 | WASHER-SEATING HANDL | 80763-A0600 | | | | 2 | | | |
|
38 | ASSY-REGULATOR DOOR | 80700-E4100 | | | | 1 | | | |
|
38 | ASSY-REGULATOR DOOR | 80700-N3001 | | | | 1 | Yes | Yes | 80700-E4100 |
|
39 | ASSY-REGULATOR DOOR | 80701-E4100 | | | | 1 | | | |
|
39 | ASSY-REGULATOR DOOR | 80701-N3001 | | | | 1 | Yes | Yes | 80701-E4100 |
|
40 | ASSY-GUIDE DOOR WIND | 80710-21000 | | | | 2 | | | |
|
41 | SCREW-MACHINE M6X1.0 | 08310-61010 | | | | 8 | | | |
|
41 | SCREW-MACHINE M6X1.0 | 08310-61012 | | | | 8 | Yes | Yes | 08310-61010 |
|
42 | WASHER-SPRING | 08915-13610 | | | | 12 | | | |
|
43 | NUT-HEX M6X1.0 | 08911-10610 | | | | 4 | | | |
