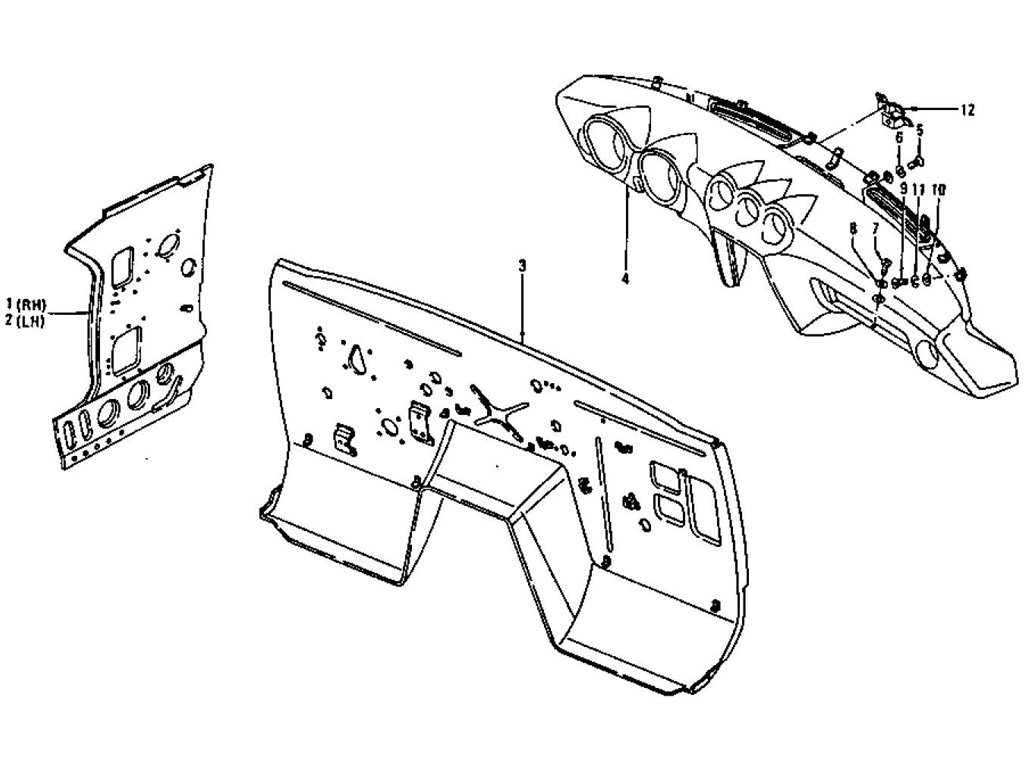

Dash Panel, Side & Instrument Dash Panel, Dash Side Panel & Instrument (To Jul.-'73)
Parts List | Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|
1 | ASSY-PANEL DASH SIDE | 66400-E4600 | | | 7206 | 1 | | | |
|
1 | ASSY-PANEL DASH SIDE | 66400-N3300 | | 7207 | | 1 | No | No | 66400-E4600 |
|
2 | ASSY-PANEL DASH SIDE | 66401-E4600 | | 7206 | | 1 | | | |
|
2 | ASSY-PANEL DASH SIDE | 66401-N3300 | | 7207 | | 1 | No | No | 66400-E4600 |
|
3 | ASSY-PANEL DUSE LOWE | 67100-N3300 | | 7207 | | 1 | No | No | 67100-E4600 |
|
3 | ASSY-PANEL DUSH LOWE | 67100-E4600 | | | 7206 | 1 | | | |
|
4 | ASSY-INSTRUMENT | 68100-E4600 | | | | 1 | | | |
|
4 | ASSY-INSTRUMENT | 68100-E8800 | | | | 1 | Yes | Yes | 68100-E4600 |
|
4 | ASSY-INSTRUMENT | 68100-N3300 | | 7207 | | 1 | No | No | 68100-E8800 |
|
5 | SCREW-MACHINE MS | 08310-50810 | | | | 3 | | | |
|
5 | SCREW-MACHINE MS | 08310-50812 | | | | 3 | Yes | Yes | 08310-50810 |
|
6 | WASHER-SPRING MS | 08915-13510 | | | | 3 | | | |
|
7 | SCREW-TAPPING MS TO | 08510-51210 | | | | 17 | | | |
|
7 | SCREW-TAPPING MS TO | 08510-51212 | | | | 17 | Yes | Yes | 08510-51210 |
|
8 | WASHER-SPRING MS TO | 08915-13510 | | | | 17 | | | |
|
9 | SCREW-MACHINE M6 | 08360-61010 | | | | 12 | | | |
|
9 | SCREW-MACHINE M6 | 08360-61012 | | | | 12 | Yes | Yes | 08360-61010 |
|
10 | WASHER-PLAIN M6 | 08915-43610 | | | | 12 | | | |
|
11 | WASHER-SPRING M6 | 08915-13610 | | | | 12 | | | |
|
12 | BRACKET CIGLIGHTER A | 68136-N3000 | | | 7206 | 1 | | | |
